Hallittava L2+ verkkokytkin PLANET IGS-5225-8P4S

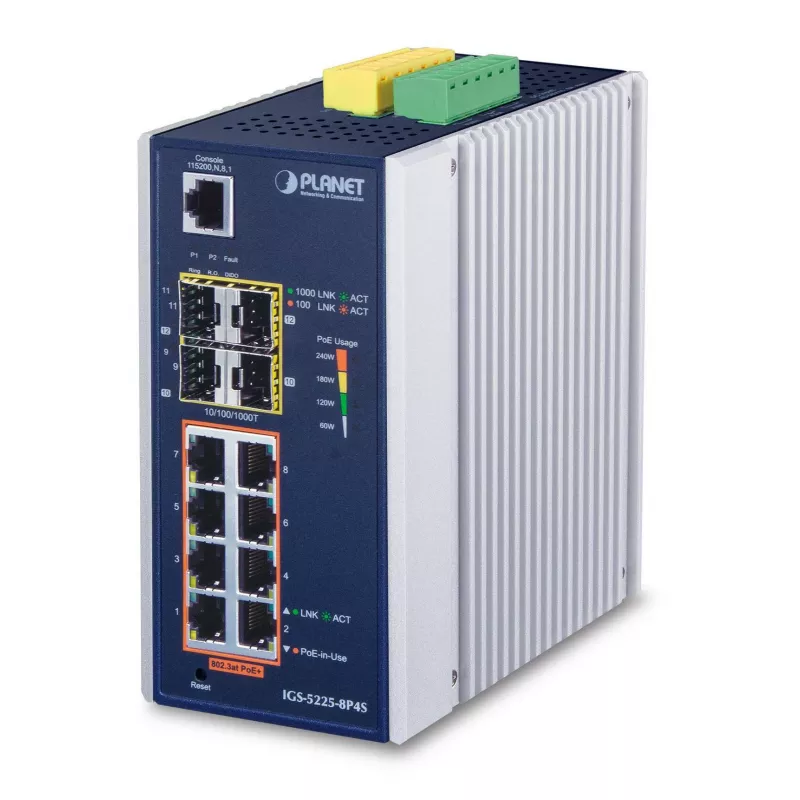

The PLANET IGS-5225-8P4S is an industrial L2+ managed Gigabit Ethernet switch in a rugged IP30 metal housing designed for harsh environments. It provides 8 10/100/1000BASE-T PoE+ ports (each up to 36 W) and 4 100/1000X SFP fiber ports, a total PoE budget of 240 W, Layer 2/L4 switching, Layer 3 static routing, IPv4/IPv6 management, and industrial-grade features such as ITU-T G.8032 ERPS for rapid ring recovery and operation in temperatures from -40 to 75°C.

Advantages

The switch combines high-power IEEE 802.3at PoE+ on eight Gigabit ports with a rugged design for industrial deployment, offering advanced cybersecurity functions (DHCP Snooping, IP Source Guard, ARP Inspection, 802.1x, RADIUS/TACACS+, SNMPv3), redundant ring and power support for fast recovery, and flexible SFP expansion. Additional management features include web/console/SNMP management, Modbus TCP support for factory integration, SFP DDM diagnostics and IEEE 1588 timing support.

Suitable for

• Outdoor and indoor IP surveillance systems with PoE cameras and NVRs
• Wireless access point deployments requiring high-power PoE and Gigabit backhaul
• Industrial automation and SCADA/Modbus TCP integration
• Carrier or telecom edge applications requiring MEF/1588 timing
• Networks needing rapid ring recovery and high-availability switching

Key specifications

• Ports: 8 x 10/100/1000BASE-T PoE+ ports, 4 x 100/1000X SFP fiber ports
• PoE: IEEE 802.3at PoE+ up to 36 W per port, total PoE budget 240 W
• Switching capacity: 24 Gbit/s
• MAC address table: 8,000 entries
• Networking standards: IPv4/IPv6, IEEE 802.1Q, 802.1x, 802.1D/w/s, 802.3/3u/3ab/3az, IEEE 1588v2
• Operating temperature: -40 to 75 °C
• Power input: DC 48–56 V
• Form factor: IP30 rugged metal case, wall-mountable
• Weight and colour: approx. 1.093 kg, blue/silver

How to use

Install the IGS-5225-8P4S in a suitable industrial location using the supplied wall-mount brackets or rack accessories. Connect power (DC 48–56 V) and link fiber SFPs or RJ-45 Gigabit devices as required. Configure management via the web GUI, console, Telnet, or SNMPv3; enable PoE schedules, ONVIF device discovery and PoE alive-checks as needed. For ring topologies enable ERPS or MSTP and configure redundant power inputs to achieve fast recovery and high availability.

Recommendations

For stable operation in surveillance and wireless networks, assign VLANs for traffic separation, enable PoE scheduling to reduce energy consumption, use the PoE alive check or scheduled power recycling for problematic devices, and enable the switch’s cybersecurity features (802.1x, DHCP Snooping, SNMPv3) to protect management access.
