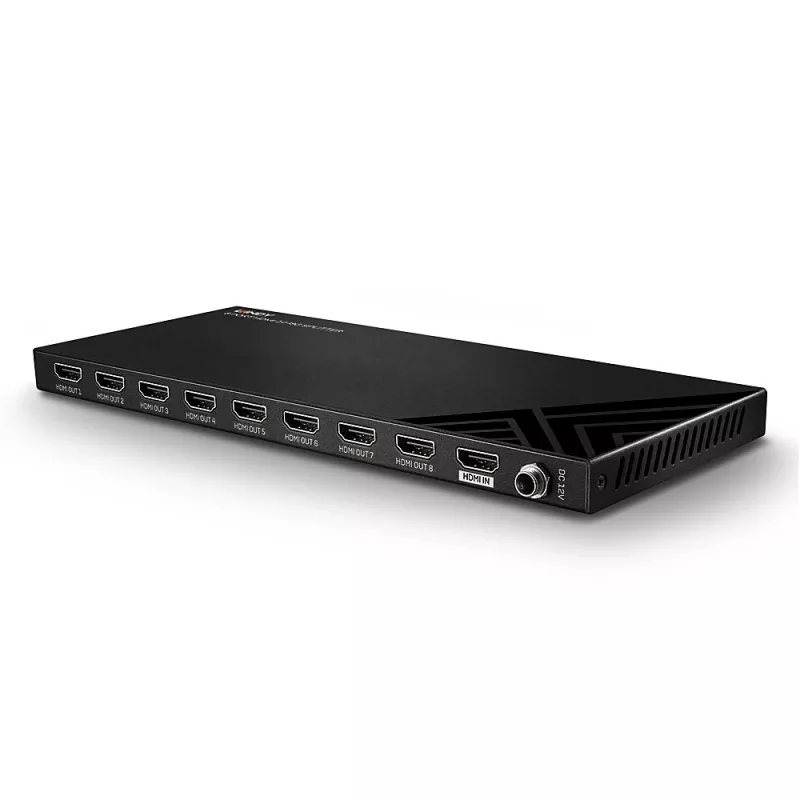

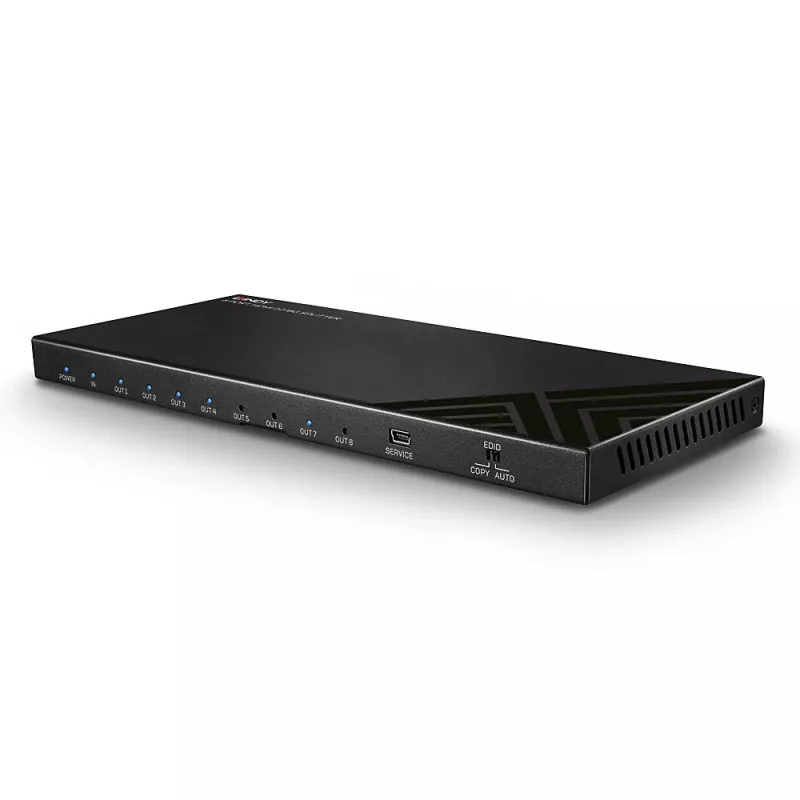

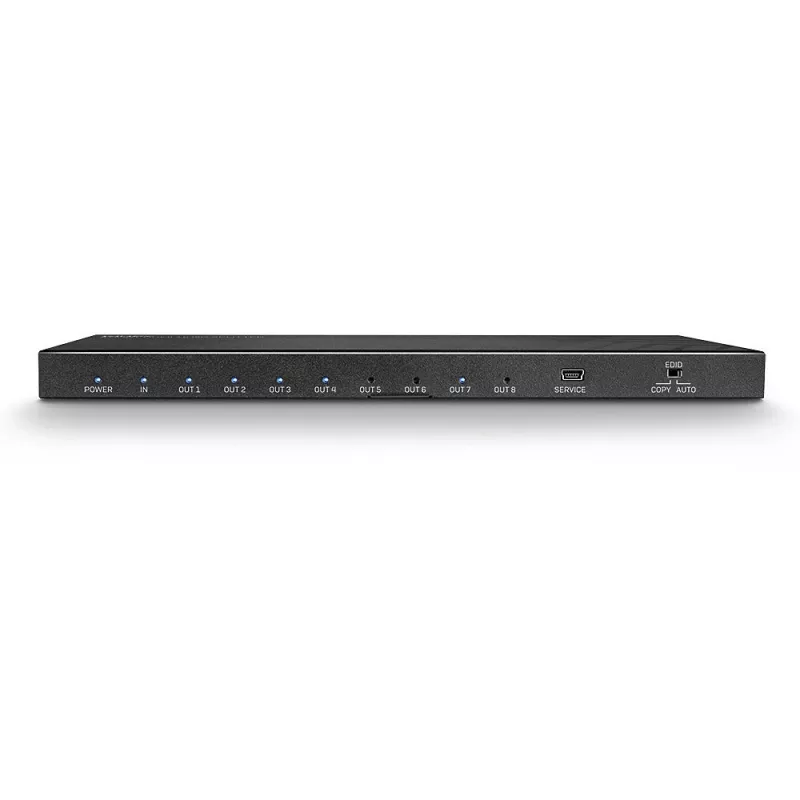

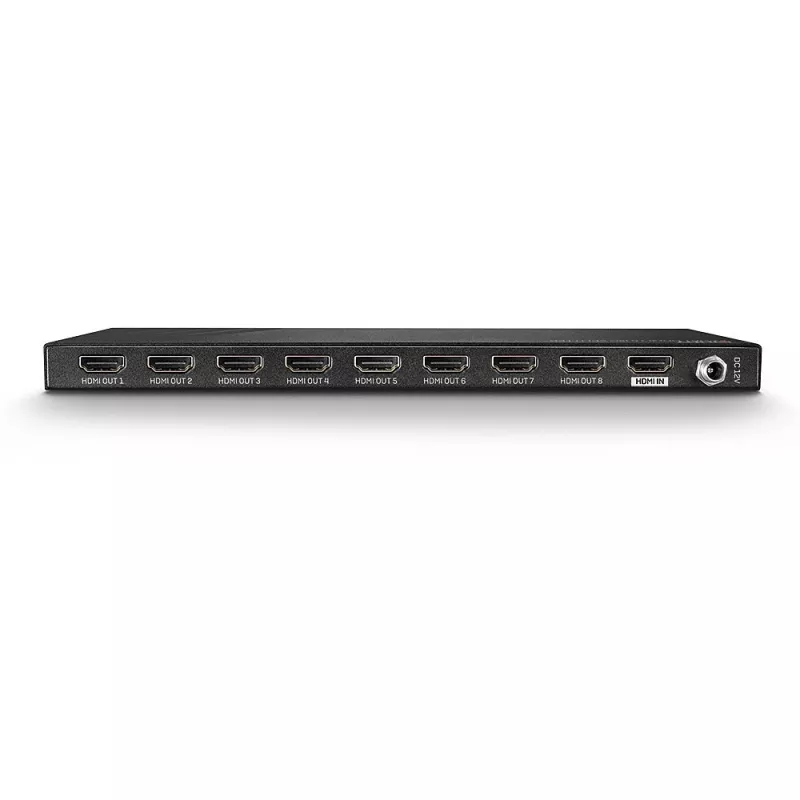

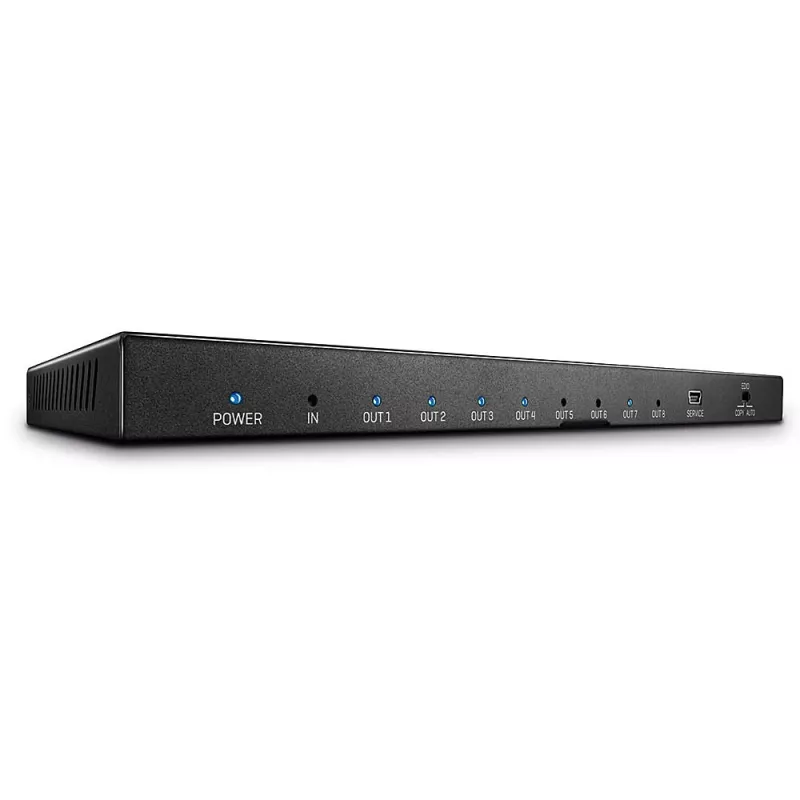

HDMI-jakaja Lindy 8 porttia HDMI 2.0 18G

The Lindy 8 Port HDMI 18G Splitter distributes a single HDMI 2.0 source to eight HDMI displays while supporting resolutions up to 4K@60Hz 4:4:4 and HDR. The compact unit includes HDCP 2.2 compatibility, EDID management and a screw-type DC power jack for a reliable connection, making it suitable for digital signage, multi-room video or multi-display installations.

Advantages

The splitter supports 4K@60Hz 4:4:4 and HDR for high-fidelity video, offers HDCP 2.2 compatibility to avoid playback issues with protected content, and includes EDID management to simplify setup with different displays. The compact and durable design plus a screw-type DC jack ensure secure installation and discreet placement. Cascading up to three further levels enables large multi-screen systems.

Key specifications

• Standard: HDMI 2.0 / 18G
• Maximum resolution: 4K@60Hz 4:4:4
• HDR: supported
• HDCP: 2.2 support
• Outputs: 8 x HDMI
• EDID management: on-unit switch
• Power connector: screw-type DC jack
• Cascading: up to 3 additional levels
• Warranty: 2 years

How to use

Connect the HDMI source device to the splitter input and attach up to eight HDMI displays to the outputs. Configure the EDID management switch on the unit if needed to match display capabilities. Use the screw-type DC power jack to connect the supplied power adapter and secure the connection. For larger installations, cascade additional compatible Lindy splitters up to three levels following the same connection procedure.

Recommendations

For reliable playback of protected 4K content use source devices and displays that support HDCP 2.2. Verify display EDID settings when mixing different models to ensure consistent resolution and colour performance.
