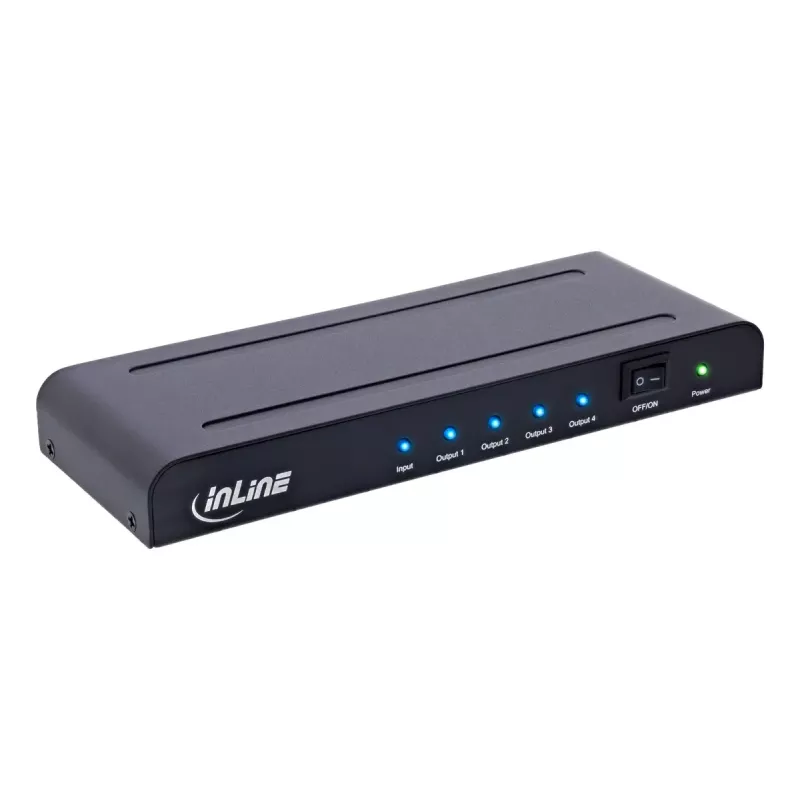

HDMI-videojakaja InLine 65010K 4x HDMI 4K Ultra HD

Distributes one HDMI signal to up to four output devices - ideal for professional AV installations
Supports 4K2K@60Hz, 3D and Deep Color 12-bit for highest picture quality
Compatible with HDCP 1.4 and 2.2 - reliable in use with the latest end devices
High-quality processing and stable signal distribution - ideal for digital signage and presentation systems
Compact design and external power supply - easy to integrate into existing systems

The InLine® HDMI Splitter 65010K is the reliable solution for professional AV environments in which an HDMI signal needs to be distributed to multiple output devices. It enables simultaneous signal transmission from one HDMI source to up to four displays - without any loss of quality. With support for 4K2K@60Hz, 12-bit Deep Color and 3D, the device ensures brilliant picture quality in the highest resolution.Thanks to integrated HDCP decryption and encryption (compatible with HDCP Rev. 1.4/2.2), the splitter can be easily integrated into modern system landscapes. Audio formats such as Dolby TrueHD, DTS-HD Master Audio and LPCM 7.1 are transmitted loss-free - perfect for high-quality media presentations or installations in the digital signage sector.The compact design, combined with a sturdy metal housing and a 5V power supply unit, makes the device ideal for use in AV racks, training rooms, conference systems or exhibitions.System houses and specialist retailers benefit from a reliable and easy-to-integrate solution that is compatible with common HDMI standards.

HDMI specification 2.0
Frequency range: 25 MHz - 600 MHz
Output current: max. 2.0 A / output power: 10 W
Input alternating current frequency: ~50/60Hz, 0.4 A
Average efficiency during operation: 79.96%
Power consumption at no load: 0.08 W

InLine 65010K. Video port type: HDMI, Video out: 4x HDMI. Product colour: Black, Maximum resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD. AC input voltage: 100 - 240 V, Power consumption (typical): 10 W. Width: 67 mm, Depth: 180 mm, Height: 22 mm. Package type: Box, Package width: 142 mm, Package depth: 225 mm

How to use

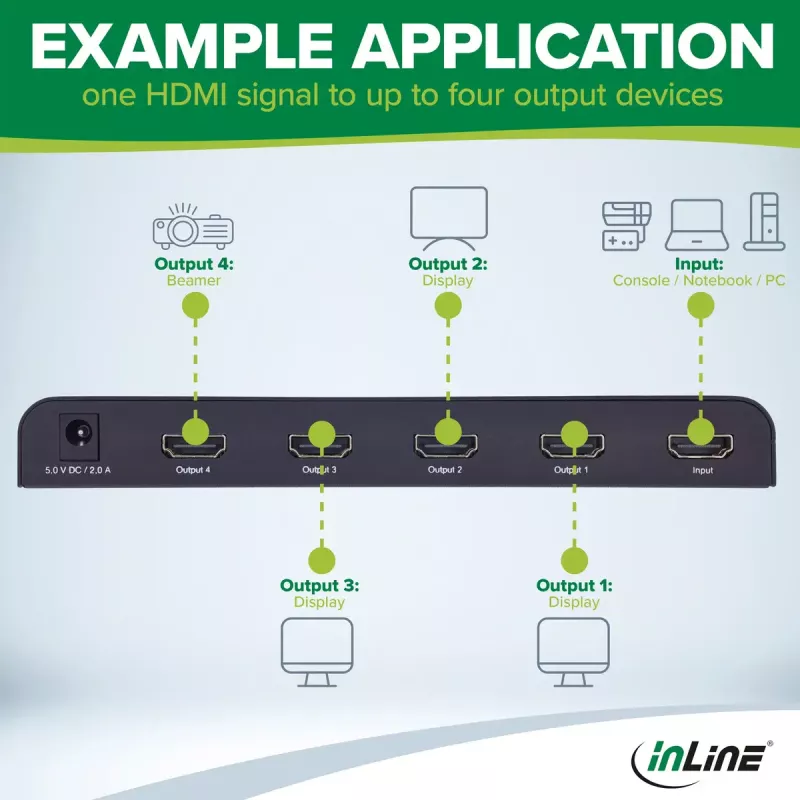

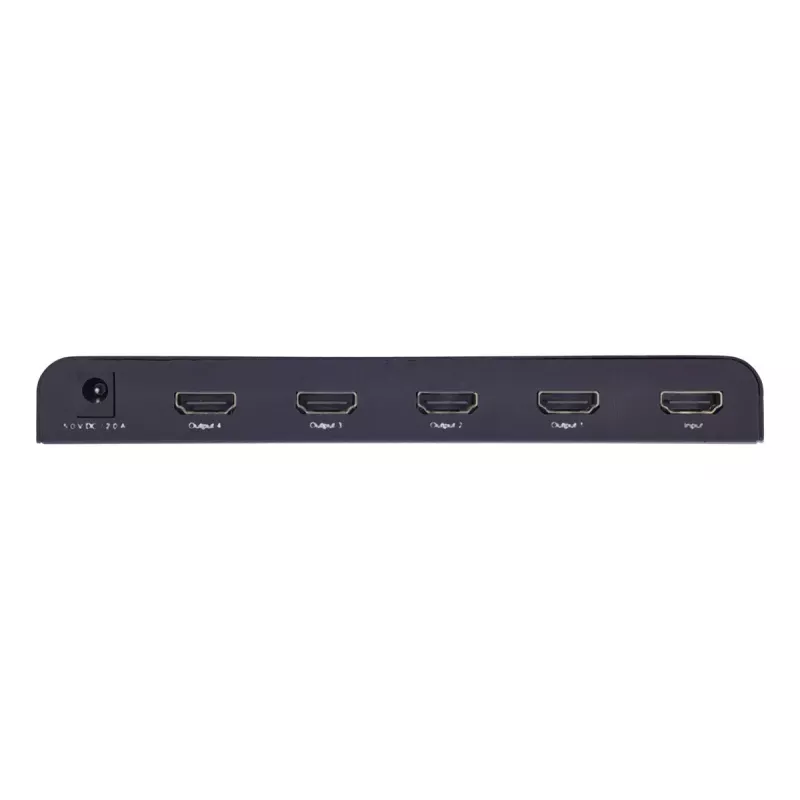

Connect the HDMI source (PC, media player or other device) to the splitter input and connect up to four displays to the output ports using HDMI cables. Plug the included 5 V DC power supply into the DC‑in jack and the mains. The splitter will mirror the source signal to all connected displays at the negotiated resolution and audio format. If protected content is used, ensure connected displays and source support the required HDCP version.

Recommendations

Use high-quality HDMI cables rated for HDMI 2.0 or higher and 4K@60Hz to ensure stable signal transmission. For long cable runs or complex installations, verify cable length and signal integrity or consider additional distribution hardware such as signal extenders.
