Heinrich Kopp johtokytkin, 2-napainen, 10 A, ruskea (193606003)

Rated for 10 A at 250 V AC, this in-line cord switch handles demanding indoor switching tasks with a simple 1-pole on/off rocker action. The brown thermoplastic housing blends with standard 2-core round cables, and screw terminals accept conductors from 0.75 mm² to 2.5 mm².

Overview

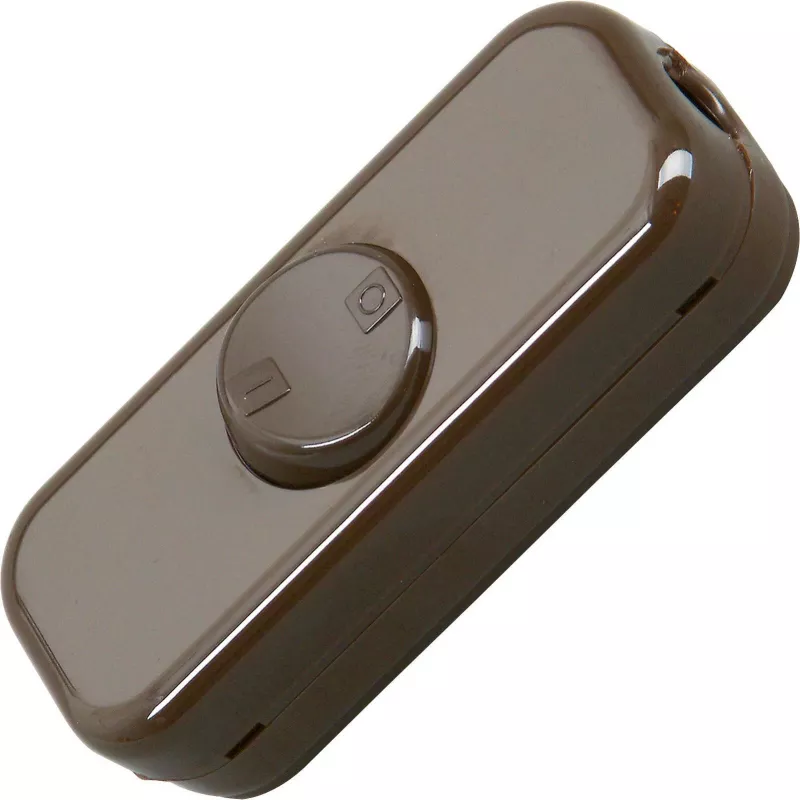

The HEINRICH KOPP 193606003 is a compact in-line switch for 2-core round cables. It mounts directly on the cord, providing a convenient on/off control point for lamps, small appliances, or other devices. The rocker switch is easy to operate, and the screw terminals ensure a secure connection.

What stands out

• 10 A rated current for reliable switching
• 1-pole on/off (SPST) switching principle
• Accepts cable cross-sections from 0.75 mm² to 2.5 mm²
• Brown thermoplastic body for a neutral appearance
• Screw terminals for durable wire connections

Technical details

• Product type: In-line cord switch
• Switching principle: 1-pole on/off (SPST)
• Rated current: 10 A
• Rated voltage: 250 V AC
• Colour: Brown
• Material: Thermoplastic
• Connection method: Screw terminals
• Compatible cable type: 2-core round cable
• Min. cable cross-section: 0.75 mm²
• Max. cable cross-section: 2.5 mm²
• Protection rating: IP20
• Switch type: Rocker switch
• Number of switches: 1
• Mounting type: In-line (for cord)
• Certifications: CE
• Application area: Indoor use
• Operating temperature range: -5°C to +40°C
• Number of terminals: 2

Our verdict

A straightforward, dependable in-line switch for basic on/off control of 2-core cords. The 10 A rating and screw terminals make it suitable for many household applications.
