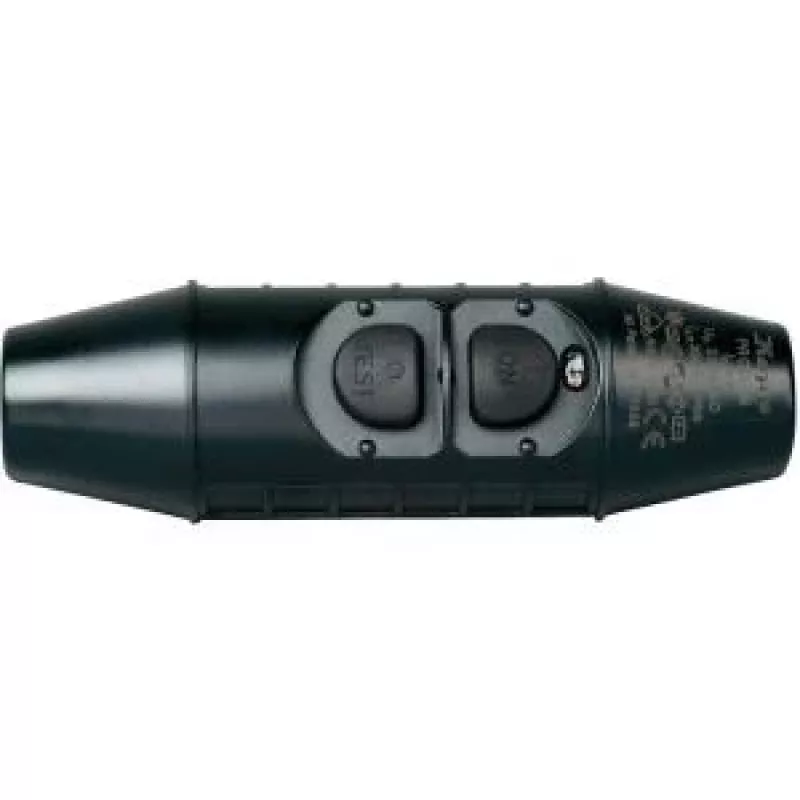

Heinrich Kopp väli-turvakytkin PRCD-S 230 V musta IP55 1962.0001.5

The Heinrich Kopp 1962.0001.5 is a robust in-line safety switch equipped with a Portable Residual Current Device (PRCD-S), designed to provide reliable protection against electric shock in demanding environments. Ideal for outdoor use, construction sites, workshops, and damp areas, this switch ensures safety and durability with its IP55-rated plastic housing and black finish.

Advantages

Integrated PRCD-S offers high sensitivity (30 mA) and fast tripping (<30 ms) for enhanced personal safety. The manual reset mechanism ensures controlled reconnection after a fault. Screw terminals allow secure wiring with cable cross-sections from 3x1.5 mm² to 3x2.5 mm². VDE and CE certified for compliance with European safety standards.

Suitable for

• Outdoor power tools and equipment
• Construction site temporary power supply
• Workshop machinery
• Damp or wet environments requiring extra protection

Key specifications

• Product Type: In-line Safety Switch
• Safety Device: PRCD-S (Portable Residual Current Device)
• Nominal Voltage: 230 V AC
• Nominal Current: 16 A
• Frequency: 50 Hz
• Residual Current Sensitivity: 30 mA
• Tripping Time: <30 ms
• Protection Class: IP55
• Housing Material: Plastic
• Colour: Black
• Number of Poles: 2-pole (L+N)
• Connection Type: Screw Terminals
• Integrated Test Button: Yes
• Reset Mechanism: Manual Reset
• Recommended Cable Cross-Section: 3x1.5 mm² to 3x2.5 mm²
• Certifications: VDE, CE
• Mounting Type: In-line Cable Mounting

Recommendations

Always ensure the device is installed by a qualified electrician. Regularly test the PRCD function using the integrated test button. Suitable for use with power tools, extension cables, and portable equipment in harsh conditions.
