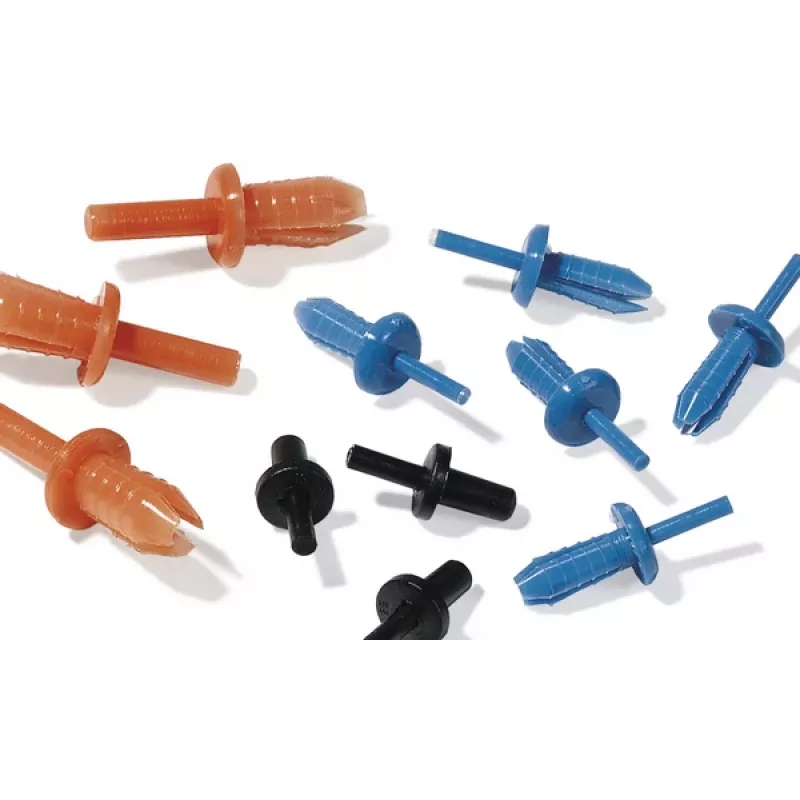

HellermannTyton R6-IBOCO levitysniitti 181-42600 luonnonvärinen PA66

The HellermannTyton R6-IBOCO Expansion Rivet (181-42600) is a high-quality, tool-free fastening solution designed for general purpose cable management and panel mounting. Made from durable Polyamide 6.6 (PA66) in natural color, this rivet offers excellent dielectric properties and chemical resistance against oils, greases, alkalis, and diluted acids. It is halogen-free and RoHS compliant, with a UL94 V2 flammability rating. The rivet is suitable for drill hole diameters of 6.0-6.5 mm and panel thicknesses of 0.8-3.0 mm, with an overall length of 15.0 mm and head diameter of 10.0 mm. Operating temperature range: -40°C to +85°C.

Advantages

Tool-free push-in installation saves time and labor. Reliable expansion mechanism ensures secure fastening. Good chemical and dielectric properties make it versatile for various environments. Halogen-free and RoHS compliant for environmental safety.

Suitable for

• Cable management and routing
• Panel mounting in electrical enclosures
• General purpose fastening in industrial applications

Key specifications

• Product Type: Expansion Rivet
• Material: Polyamide 6.6 (PA66)
• Color: Natural
• Mounting Method: Push-in / Expansion
• Recommended Drill Hole Diameter: 6.0 - 6.5 mm
• Recommended Panel Thickness: 0.8 - 3.0 mm
• Head Diameter: 10.0 mm
• Overall Length: 15.0 mm
• Pin Diameter: 3.0 mm
• Operating Temperature Range: -40°C to +85°C
• Flammability Rating: UL94 V2
• Halogen-free: Yes
• RoHS Compliant: Yes
• UV Resistance: No

Recommendations

For optimal performance, ensure the drill hole diameter is within 6.0-6.5 mm and panel thickness between 0.8-3.0 mm. Not recommended for outdoor use due to lack of UV resistance.
