Hermeettinen jakorasia 190x140x70 ilman läpivientejä IP65 PAWBOL S-BOX 416

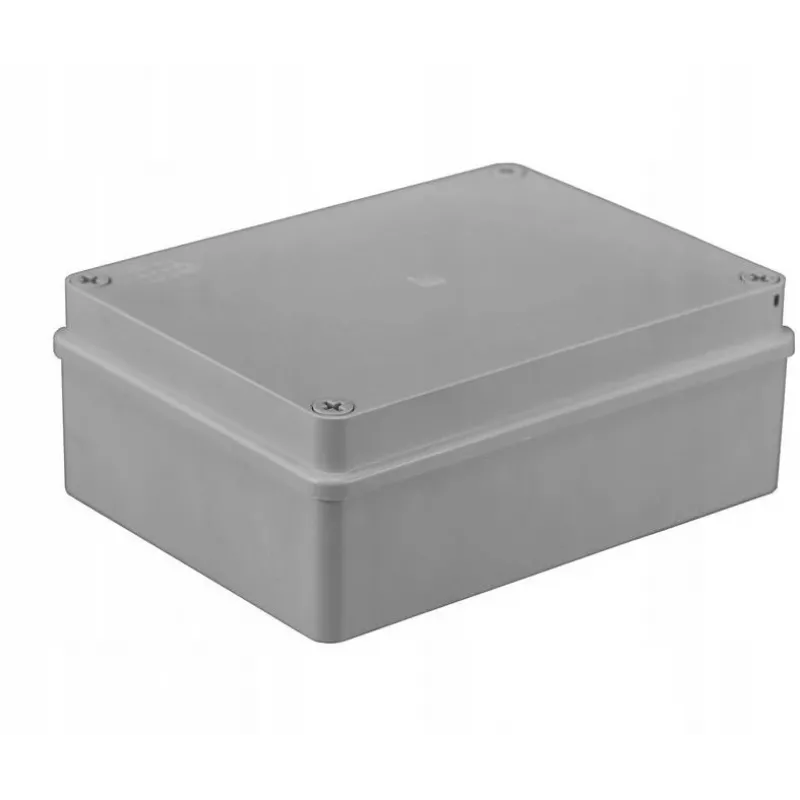

The PAWBOL S-BOX 416 hermetic junction box is a robust and reliable enclosure designed for demanding indoor and outdoor electrical installations. With its IP65 rating, it provides excellent protection against dust and water jets, making it suitable for use in industrial, commercial, and residential environments. The box is made from durable polypropylene (PP) and features a solid opaque lid secured with four screws. It is halogen-free, UV-resistant, and certified to CE and RoHS standards.

Advantages

This junction box offers high ingress protection (IP65) and impact resistance (IK07), ensuring long-lasting performance in harsh conditions. The user-drillable design allows for flexible cable entry configurations, while the internal mounting points enable easy installation of DIN rails or mounting plates. The material is halogen-free and UV-resistant, contributing to safety and durability.

Suitable for

• Electrical junction and connection points in industrial settings
• Outdoor lighting and power distribution
• Telecommunications and network infrastructure
• Automation and control systems

Key specifications

• Product Type: Hermetic Junction Box / Electrical Enclosure
• Ingress Protection: IP65
• Material: Polypropylene (PP)
• Lid Material: Polypropylene (PP)
• Lid Type: Opaque / Solid
• Colour: Grey (RAL 7035)
• Mounting Type: Surface Mount
• Cable Entries: None (User-drillable)
• Impact Resistance: IK07
• Glow Wire Test: 650°C (EN 60670-1)
• Operating Temperature Range: -25°C to +60°C
• Rated Insulation Voltage: Up to 400V AC
• Halogen Free: Yes
• UV Resistant: Yes
• Certification: CE, RoHS
• Number of Lid Screws: 4
• Internal Mounting Points: Yes (for DIN rail or mounting plate)
• Dimensions (WxHxD): 190 x 140 x 70 mm

Recommendations

For optimal installation, use appropriate cable glands (not included) to maintain IP65 protection. Ensure the mounting surface is clean and dry before installation. This enclosure is ideal for applications requiring a robust, weatherproof housing for electrical connections.
