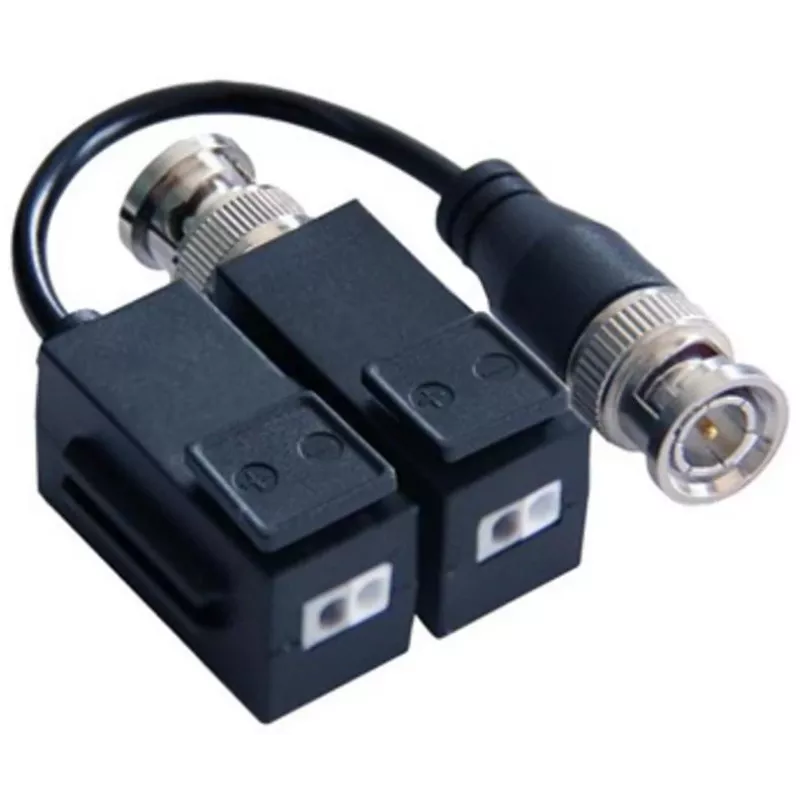

Hikvision DS-1H18-A passiivinen HD-videobalun

The Hikvision DS-1H18-A is a high-performance passive HD video balun designed for transmitting HD video signals over long distances using UTP CAT5e/6 cable. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it a versatile solution for surveillance systems.

Advantages

This passive balun requires no external power, simplifying installation and reducing costs. It offers excellent surge and ESD protection, ensuring reliable operation in demanding environments. With support for resolutions up to 5MP (HDTVI), it delivers clear and detailed video.

Suitable for

• Security camera installations using HD-TVI, HD-CVI, AHD, or analog cameras
• Extending video transmission distances up to 250m for HD signals
• Upgrading existing analog systems to HD without replacing cabling

Key specifications

• Product Type: Passive HD Video Balun
• Supported Video Formats: HDTVI, HDCVI, AHD, CVBS
• Max Resolution (HDTVI): 5MP
• Max Resolution (HDCVI): 4MP
• Max Resolution (AHD): 4MP
• Max Resolution (CVBS): 960H
• Transmission Distance (HDTVI 1080P): Up to 250m (820ft)
• Transmission Distance (HDCVI 1080P): Up to 250m (820ft)
• Transmission Distance (AHD 1080P): Up to 200m (656ft)
• Transmission Distance (CVBS): Up to 500m (1640ft)
• Cable Type: UTP CAT5e/6
• Video Input Connector: BNC Male
• Video Output Connector: Push-terminal (for UTP)
• Power Requirement: Passive (No external power required)
• Surge Protection: 2KV (Common Mode)
• ESD Protection: 8KV (Contact Discharge), 15KV (Air Discharge)
• Interference Rejection: >60dB
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Housing Material: ABS Plastic

Recommendations

For optimal performance, use high-quality UTP CAT5e or CAT6 cable and ensure proper termination. This balun is ideal for both new installations and retrofits, providing a cost-effective way to transmit HD video over long distances.
