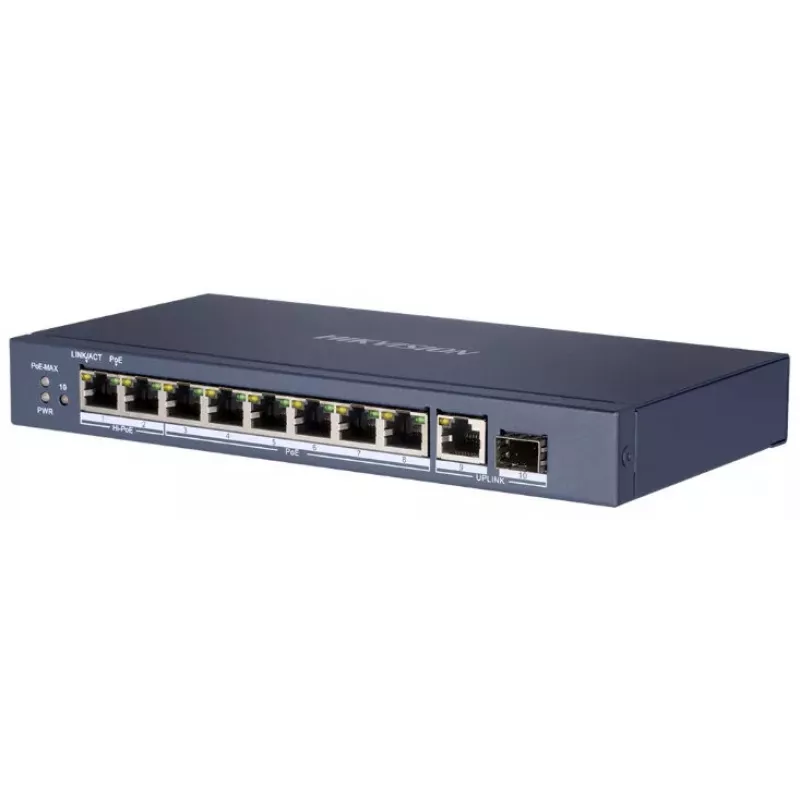

Hikvision DS-3E0510HP-E hallitsematon kytkin

The Unmanaged Switch Hikvision DS-3E0510HP-E is an 8-port Gigabit Ethernet switch with integrated Power over Ethernet (PoE) capabilities. Designed as a layer 2 Hi-PoE device, it offers stable data transmission and sufficient PoE power to feed devices such as IP cameras and wireless access points. The switch supports a switching capacity of 20 Gbit/s and a MAC address table of 4000 entries, and complies with common IEEE networking standards.

Advantages

The DS-3E0510HP-E supports Hi-PoE and long-range transmission, allowing power delivery over extended cable distances compared with standard PoE. It includes port isolation and a PoE watchdog function to improve reliability and protect connected endpoints. As an unmanaged Gigabit switch it provides plug-and-play operation without configuration, in a compact and robust form factor.

Suitable for

• Powering and connecting IP surveillance cameras
• Supplying PoE wireless access points
• Small office or retail network edge switch
• Industrial or remote network segments requiring long-range PoE

Key specifications

• Model: Hikvision DS-3E0510HP-E
• Ports: 8 × Gigabit Ethernet (10/100/1000) RJ-45
• Switching capacity: 20 Gbit/s
• MAC address table: 4000 entries
• PoE: Hi-PoE support, PoE watchdog, long-range capability
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at
• Switch type: Unmanaged
• Input voltage: DC 54 V
• Colour: Blue
• Weight: 0.59 kg

How to use

Install the DS-3E0510HP-E on a stable surface or in a suitable rack location and connect its DC 54 V power supply. Connect IP cameras, access points or other PoE devices to the Gigabit RJ-45 ports; the switch will automatically detect and supply PoE power where supported. For non-PoE devices, use the ports as standard Ethernet connections. No configuration is required for basic operation—devices should appear on the network once linked.

Recommendations

Place the switch near the powered devices when possible to reduce cable length and signal loss. Verify compatible PoE classes for connected devices and ensure the total PoE power budget meets the needs of all endpoints. When using long-range mode, confirm cable quality and distance limits for stable operation.
