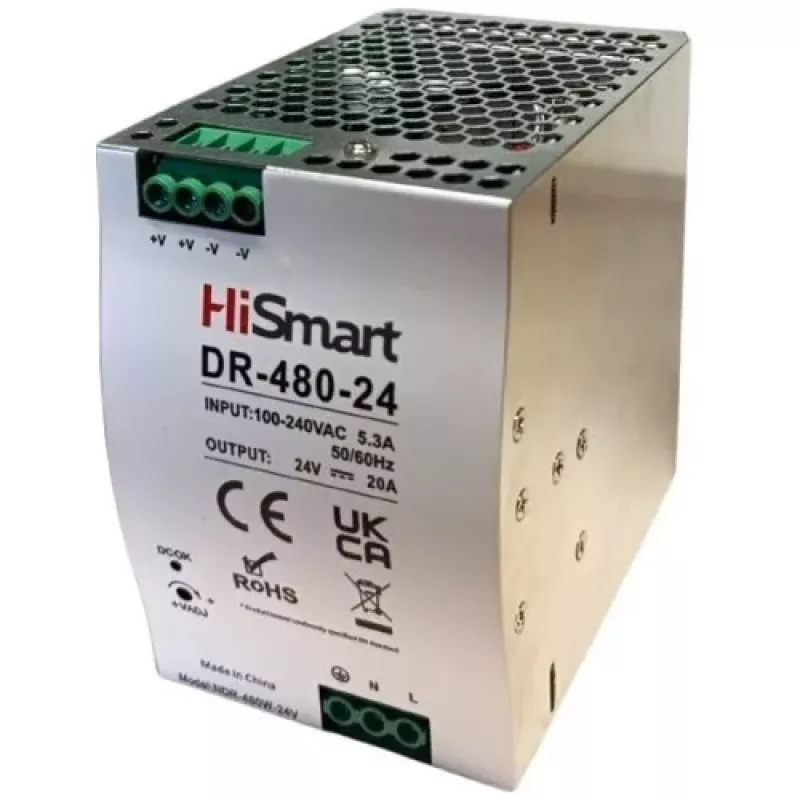

HISMART DR-480-24 DIN-kiskovirtalähde 24V 20A 480W

The HISMART DR-480-24 is a high-performance DIN rail power supply delivering 24V DC at 20A with a total output of 480W. Designed for industrial automation and control systems, it offers reliable power conversion with high efficiency and comprehensive protection features.

Advantages

This power supply features a wide input voltage range (90-264V AC), high efficiency >90%, and robust protections including overload, short circuit, over voltage, and over temperature. Its compact metal enclosure and free air convection cooling ensure long-term reliability in demanding environments.

Suitable for

• Industrial control panels
• Automation systems
• PLC and sensor power
• Building management systems
• Security and access control

Key specifications

• Output: 24V DC, 20A, 480W
• Input: 90-264V AC, 47-63 Hz
• Efficiency: >90%
• Voltage adjustment: 22-28V DC
• Protections: Overload, short circuit, over voltage, over temperature
• Cooling: Free air convection
• Operating temperature: -20°C to +70°C (with derating)
• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• Ripple & noise: <150mVp-p
• Isolation: 3000V AC input to output
• Indicators: DC OK LED
• Terminals: Screw terminals
• Housing: Metal enclosure
• Certifications: CE, RoHS, UL 508 (typical)

Recommendations

For optimal performance, ensure adequate ventilation and do not exceed the rated output current. Suitable for use in industrial environments where stable DC power is required.
