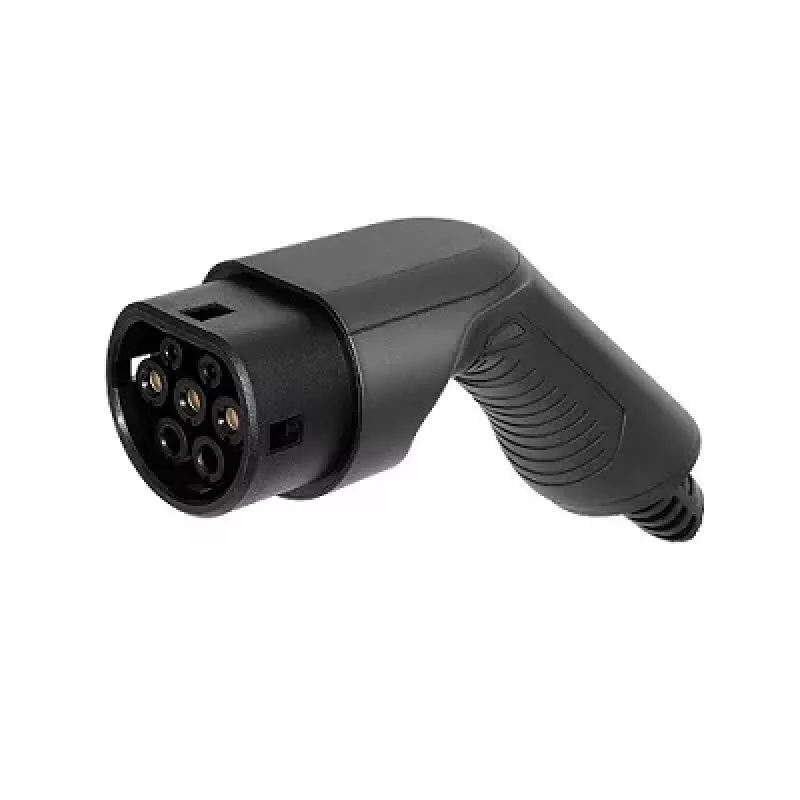

HISMART Type 2 -naarasliitin 32A yksivaiheinen sähköauton latauskaapelikomponentti

The HISMART EV200078 is a high-quality Type 2 (Mennekes) female connector designed for electric vehicle charging applications. This single-phase connector is rated at 32A and 230V AC, delivering up to 7.4 kW of power. It complies with IEC 62196-2 standards and features a robust thermoplastic shell with IP54 protection when mated. Ideal for use as a vehicle-side charging inlet or as a component in EV charging cables.

Advantages

Reliable and durable construction with silver-plated copper alloy contacts ensures low resistance and long service life. The screw terminal termination method simplifies installation. With a mechanical life exceeding 10,000 mating cycles, this connector is built for frequent use. CE and RoHS certified for safety and environmental compliance.

Suitable for

• Electric vehicle charging cable assemblies
• EV charging stations and wallboxes
• Industrial and commercial charging infrastructure
• DIY EV charging projects

Key specifications

• Connector Type: Type 2 (Mennekes) Female
• Current Rating: 32A
• Phase Configuration: Single-Phase
• Voltage Rating: 230V AC
• Max Power Output: 7.4 kW
• Charging Standard: IEC 62196-2
• Number of Pins: 5 (L1, N, PE, CP, PP)
• Contact Material: Copper Alloy, Silver Plated
• Shell Material: Thermoplastic (UL94 V-0)
• IP Rating: IP54 (when mated)
• Operating Temperature: -30°C to +50°C
• Insulation Resistance: > 1000MΩ (DC500V)
• Withstand Voltage: 2000V
• Mechanical Life: > 10,000 mating cycles
• Cable Compatibility: 3G6mm² + 2x0.5mm²
• Termination Method: Screw Terminal
• Color: Black

Recommendations

For optimal performance, use with appropriate EV charging cable and ensure proper mating to maintain IP54 rating. Always follow local electrical codes and safety guidelines during installation.
