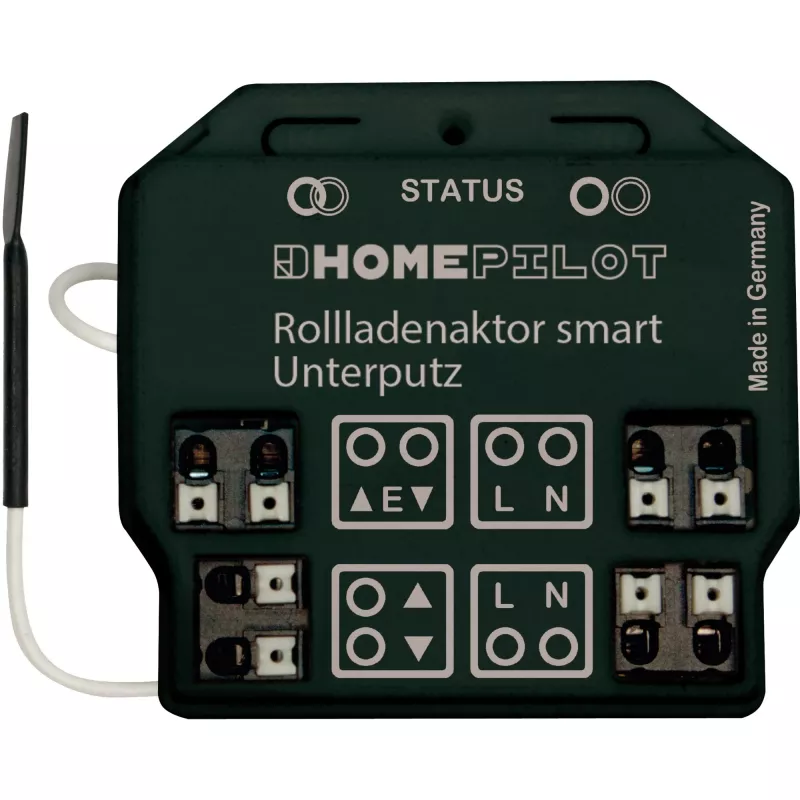

HomePilot rullaverho-ohjain Smart uppoasennus

Smart roller shutter actuator for flush-mounted installation, enabling precise control of a single 230 V motor up to 800 W via the DuoFern wireless system. Integrates seamlessly into the HomePilot smart home ecosystem for automated, time-based, and manual control of shutters, awnings, or blinds.

Advantages

Flush-mounted design fits standard 60 mm boxes, keeping installations clean and unobtrusive. Automatic travel time detection and soft start/stop extend motor life while maintaining quiet operation. Stores last position and travel times for reliable automation even after power interruptions.

Suitable for

• Controlling roller shutters, awnings, or blinds in residential or commercial settings
• HomePilot users seeking local, wireless control without additional hubs
• Retrofitting existing installations with smart functionality using DuoFern transmitters

Key specifications

• Wireless protocol: DuoFern (434.5 MHz)
• Power supply: 230 V AC, 50 Hz
• Max motor load: 800 W
• Standby consumption: < 0.5 W
• Operating temperature: -20 °C to +55 °C
• Protection class: IP20

Recommendations

Pair with a HomePilot central unit for full automation, including astro functions and intermediate positions. Ensure a neutral conductor is available for installation.
