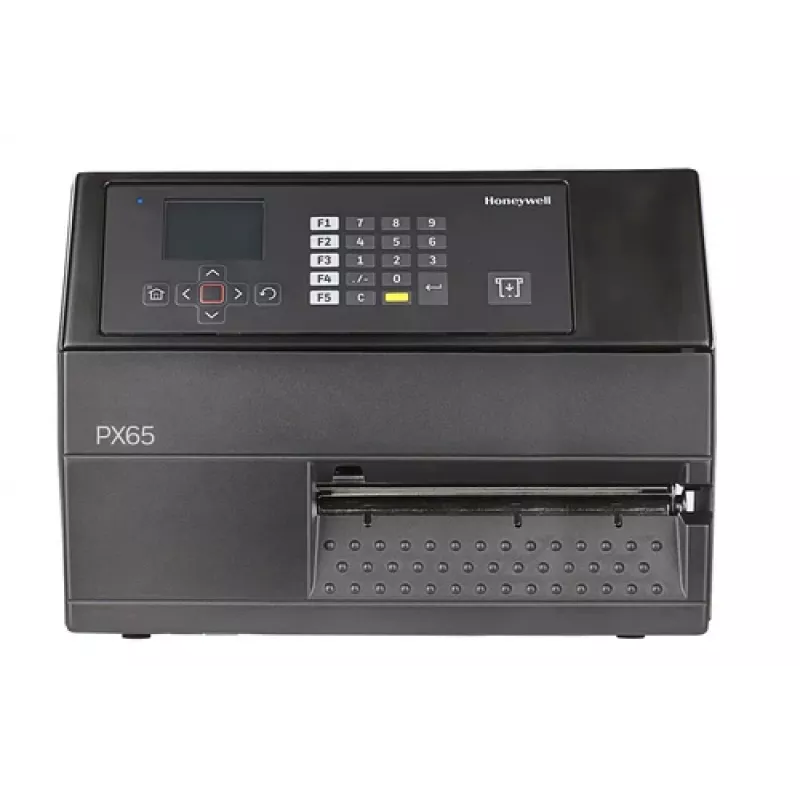

HONEYWELL PX65A Ethernet Rewinder+ tarranpoistoanturi TT 203 DPI - 203 dpi

Industrial label printer with internal rewinder and label taken sensor, delivering high-speed 203 DPI printing for demanding logistics and manufacturing environments. The Honeywell PX65A combines robust metal construction, versatile connectivity, and advanced media handling to maximize uptime and print accuracy.

Advantages

Print up to 12 inches per second at 203 DPI, with a wide 6.6-inch print width for large labels. The internal rewinder and label taken sensor enable peel-off and liner take-up for automated labeling applications. Ethernet, USB, and serial interfaces ensure seamless integration into existing systems, while the color touchscreen simplifies setup and monitoring.

Suitable for

• High-volume shipping and receiving operations
• Manufacturing lines requiring precise label application
• Warehouse and distribution center labeling
• Compliance labeling in regulated industries

Key specifications

• Print technology: Direct thermal and thermal transfer
• Resolution: 203 DPI (8 dots/mm)
• Maximum print speed: 12 ips (300 mm/s)
• Maximum print width: 6.6 inches (167.6 mm)
• Connectivity: Ethernet 10/100, USB 2.0 host and device, RS-232
• Memory: 256 MB SDRAM, 512 MB Flash
• Media sensors: Gap, black mark, notch, continuous
• Maximum media roll diameter: 8 inches (203.2 mm)
• Core diameter: 1.5 or 3 inches
• Printer languages: IPL, DPL, ZPL II, FP, DP, XML
• Processor: ARM Cortex-A9 1 GHz
• Operating temperature: +5°C to +40°C
• Power: AC 100-240V, 50/60 Hz, internal auto-sensing
• Construction: Die-cast aluminum frame, metal cover
• Certifications: CE, FCC, cULus, CCC, KC, RCM, RoHS, WEEE

Recommendations

Ideal for enterprises needing reliable, high-duty-cycle label printing with automated liner take-up. Pair with Honeywell media for optimal performance and longevity.
