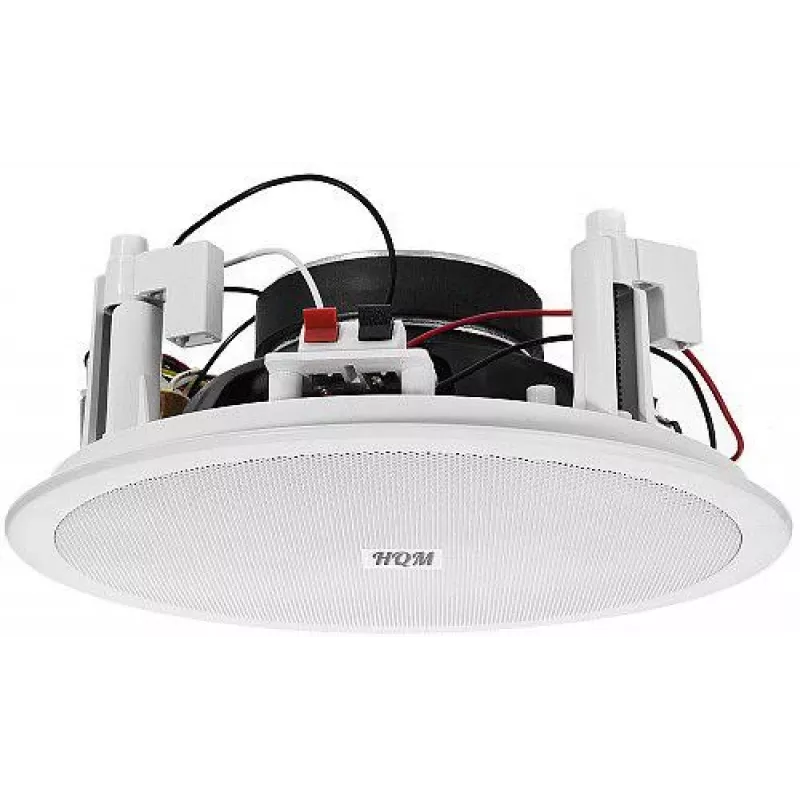

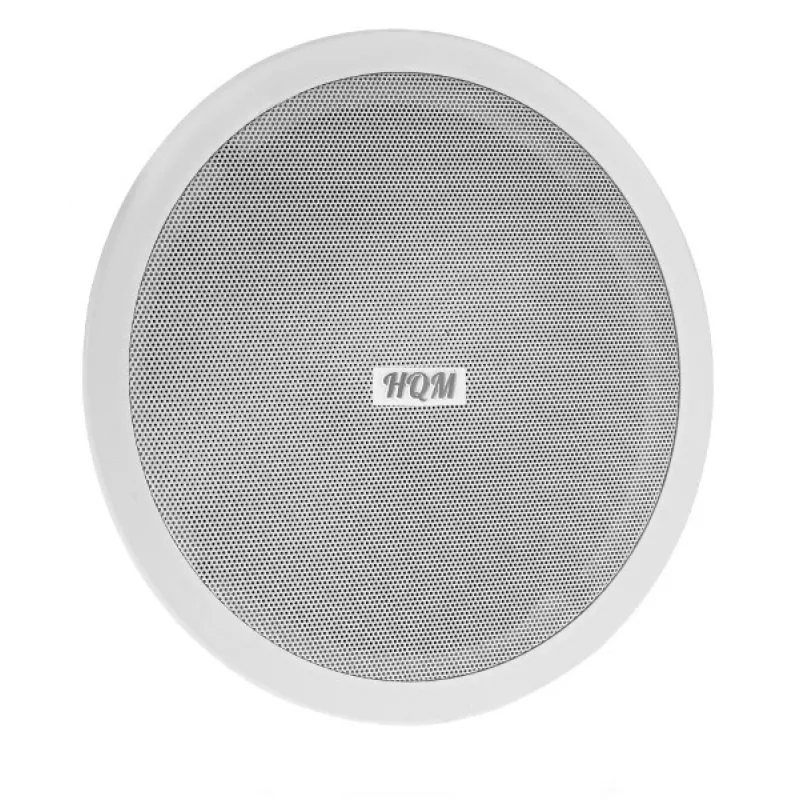

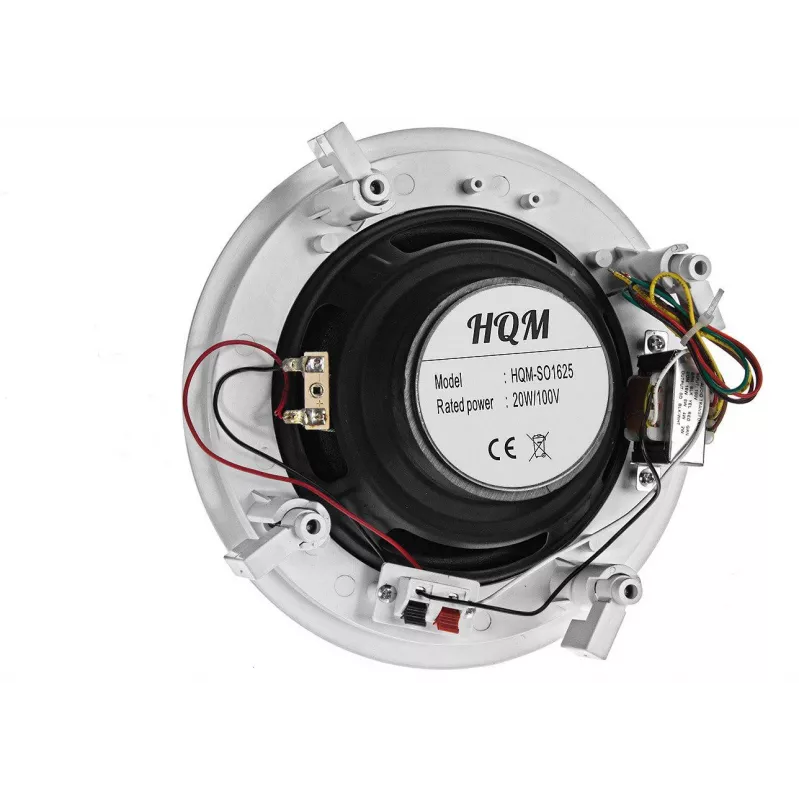

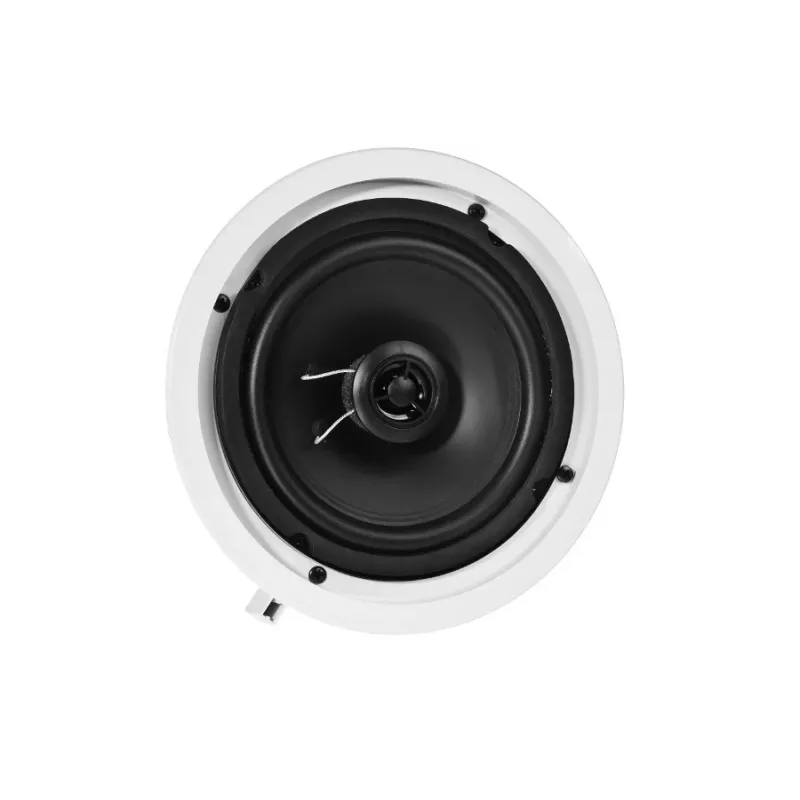

HQM HQM-SO1625 20W 100V kattokaiutin valkoinen

The HQM HQM-SO1625 is a high-performance 20W ceiling speaker designed for 100V line PA systems. Ideal for commercial and residential installations, it delivers clear, full-range audio with a built-in transformer and multiple power tappings for flexible setup.

Advantages

Easy flush-mount installation with quick-fit spring clamps. The 6.5-inch driver provides a wide frequency response of 80 Hz - 18 kHz and a sensitivity of 92 dB, ensuring excellent sound coverage. The robust ABS housing and metal grille offer durability and a sleek white finish that blends into any ceiling.

Suitable for

• Background music and paging in offices, retail stores, restaurants, and hotels
• Public address systems in schools, hospitals, and conference rooms
• Ceiling-mounted audio in residential multi-room setups

Key specifications

• Power Output (RMS): 20 W
• Voltage System: 100V Line
• Power Tappings: 20W, 10W, 5W, 2.5W
• Frequency Response: 80 Hz - 18 kHz
• Sensitivity (1W/1m): 92 dB
• Driver Size: 6.5 inches (16.5 cm)
• Material: ABS Housing, Metal Grille
• Colour: White
• Mounting Type: Flush Mount (Spring Clips)
• Cutout Diameter: 190 mm
• Overall Diameter: 225 mm
• Mounting Depth: 80 mm
• Transformer: Built-in 100V Line Transformer
• Connection Type: Screw Terminals
• Dispersion Angle: 120° (at 1 kHz)
• Grille Type: Perforated Metal

Recommendations

For optimal performance, pair with a compatible 100V amplifier and use appropriate speaker cable. Ensure the cutout diameter is precisely 190 mm for a secure fit.
