i-tec USB-C HDMI DP -telakointiasema Power Delivery 100 W + yleislaturi 100 W

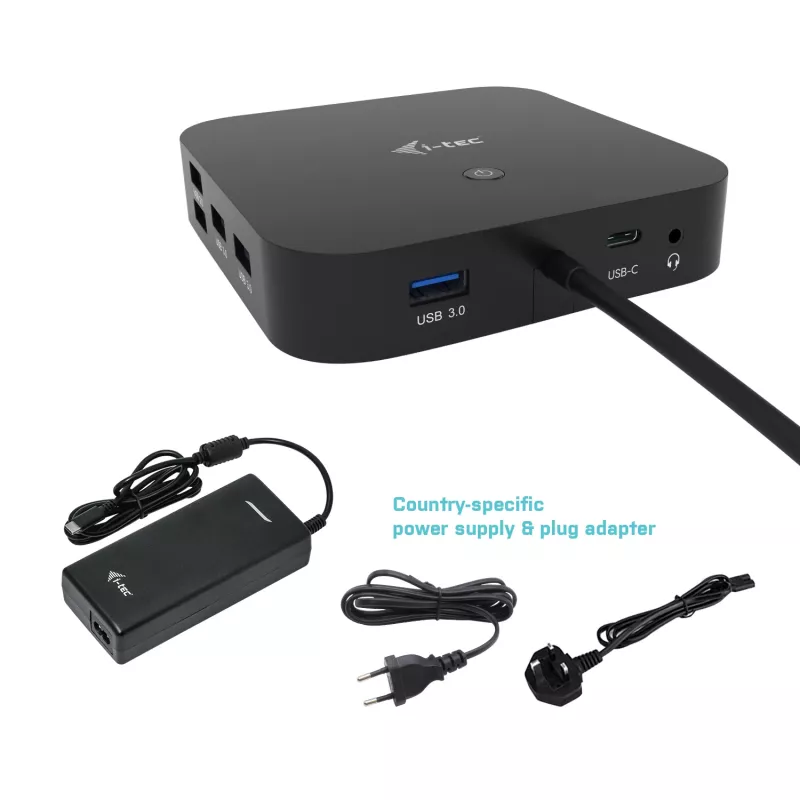

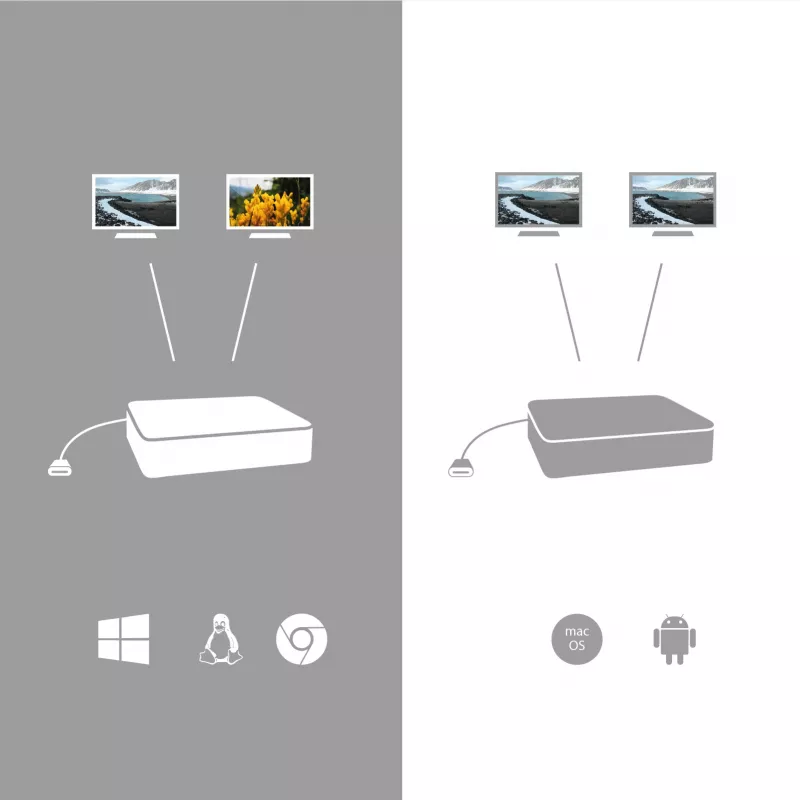

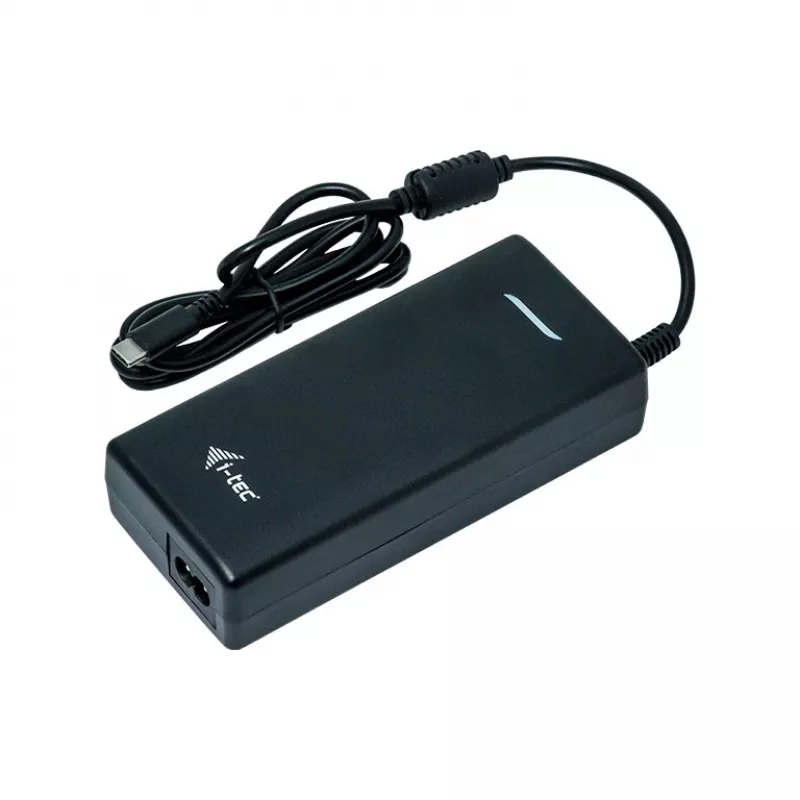

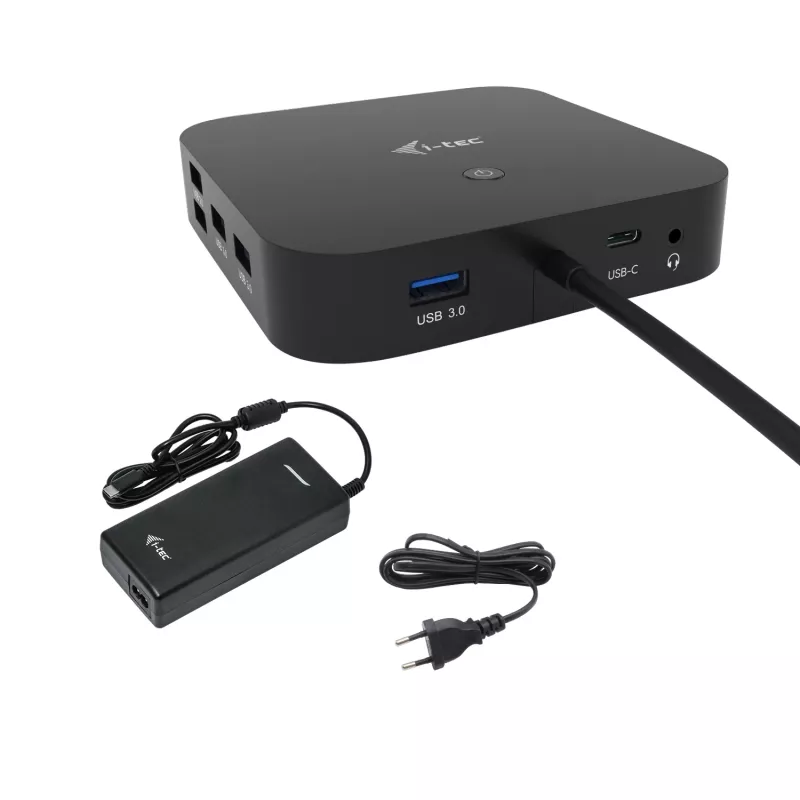

USB-C office docking station that supports up to two external monitors with 4K resolution. Compatible with laptops that have a USB-C or Thunderbolt 3 port, the dock offers 6 USB ports, a Gigabit LAN port for reliable wired network connection, VESA support for mounting behind a monitor, and laptop/tablet charging with up to 100 W power delivery. The dock includes a USB-C power adapter rated at 100 W and implements DisplayPort 1.4 for high-resolution video workflows. Note: macOS does not support MST; connecting two monitors on macOS will mirror the same image.

Advantages

The docking station combines multi-monitor support and power delivery in a single compact unit, simplifying workplace setup. With integrated DP 1.4 and both HDMI and DisplayPort outputs it handles high-resolution displays up to 5K/60 Hz where supported. Multiple USB ports (including USB-C) and a Gigabit RJ-45 Ethernet port provide fast peripheral and network connectivity. Additional features such as a front audio/microphone jack, Kensington lock, power on/off switch and VESA mounting options increase security, usability and energy efficiency.

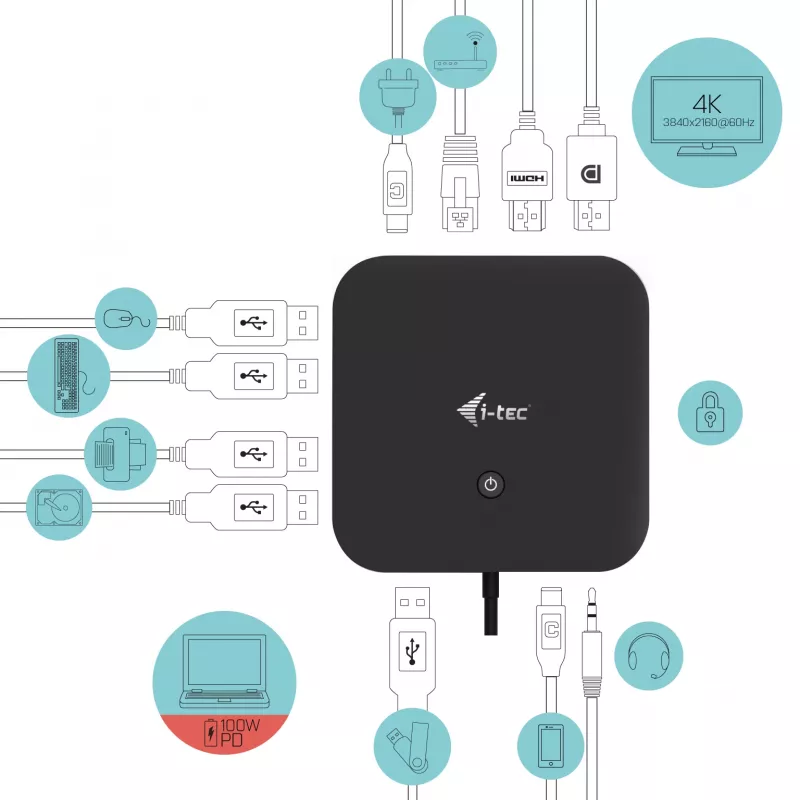

Key specifications

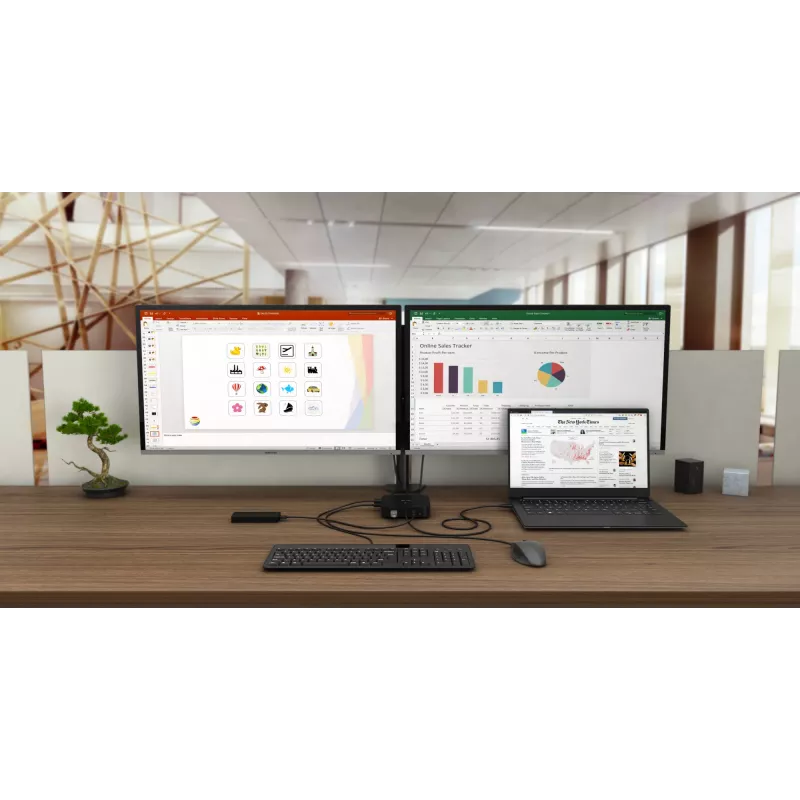

• Monitor support: up to 2 external monitors at 4K (connection depends on host OS and GPU)
• Video outputs: 1x HDMI, 1x DisplayPort (DP 1.4)
• Maximum video capability: DP 1.4 supports up to 5K/60 Hz where supported

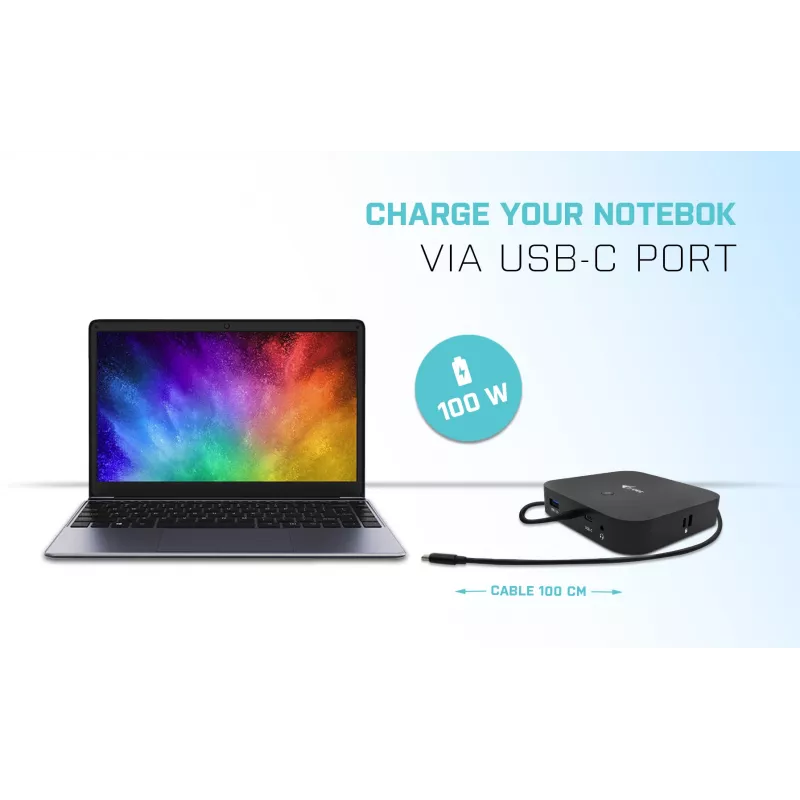

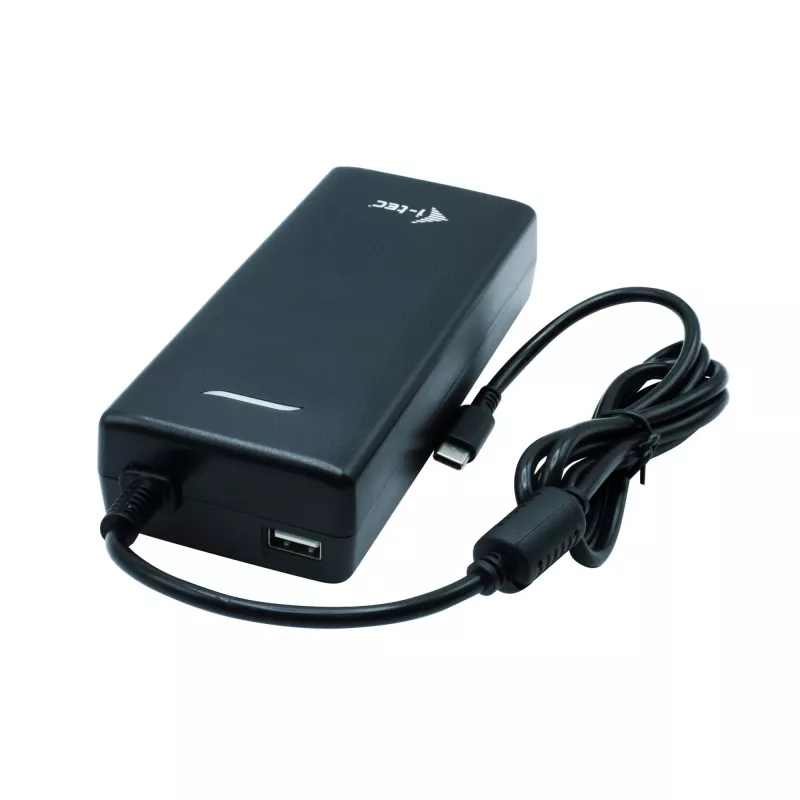

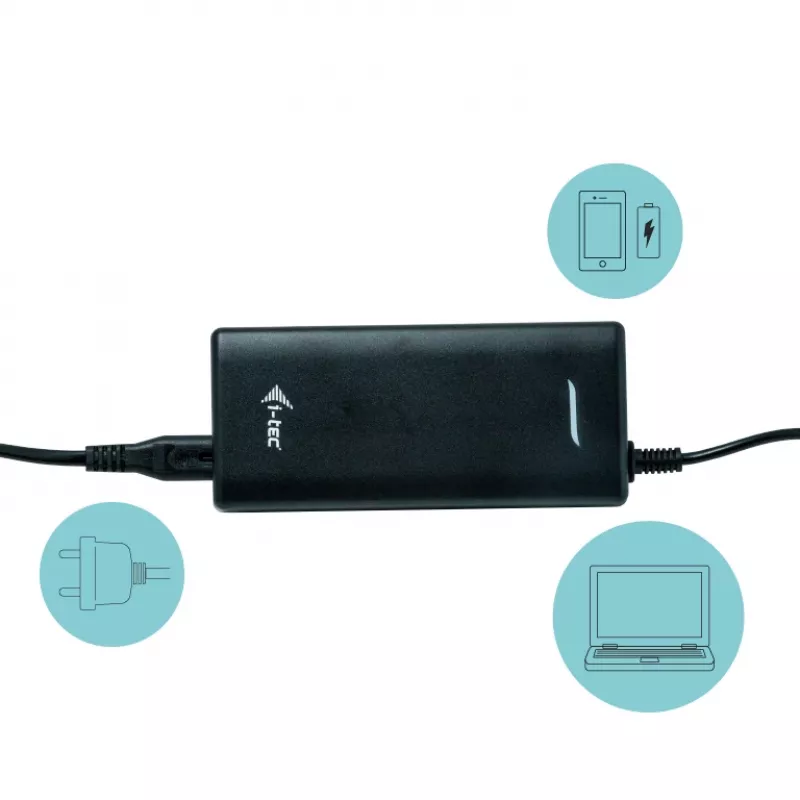

• Power delivery: up to 100 W (USB-C power adapter 100 W included)
• USB ports: 3x USB 3.1, 1x USB-C 3.1, 2x USB 2.0 (total 6 USB ports)
• Network: Gigabit Ethernet RJ-45 (10/100/1000 Mbps)

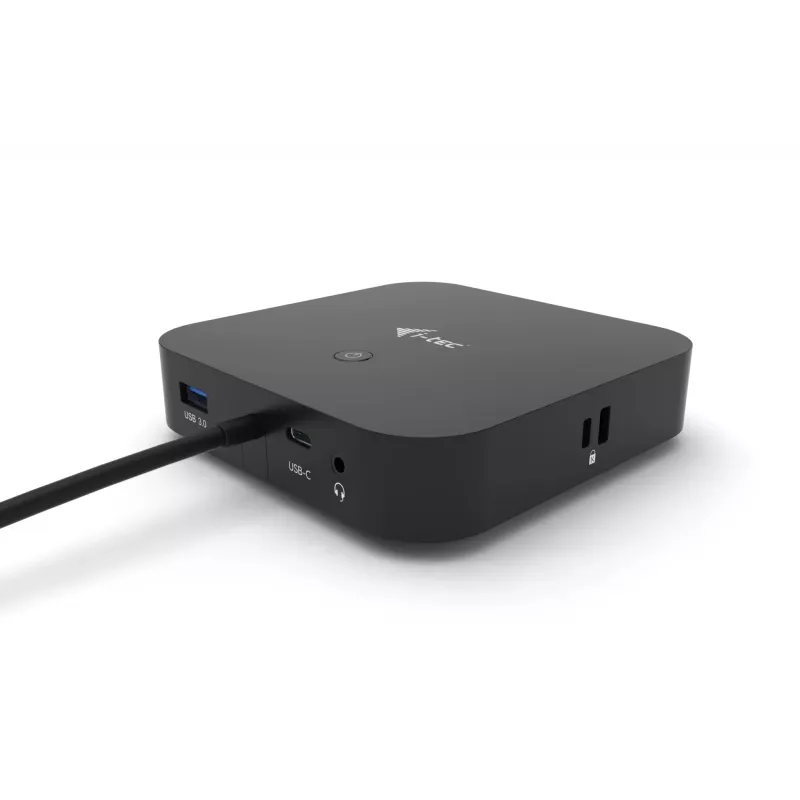

• Audio: combined front panel audio/microphone jack
• Security: Kensington lock slot
• Controls: on/off power switch

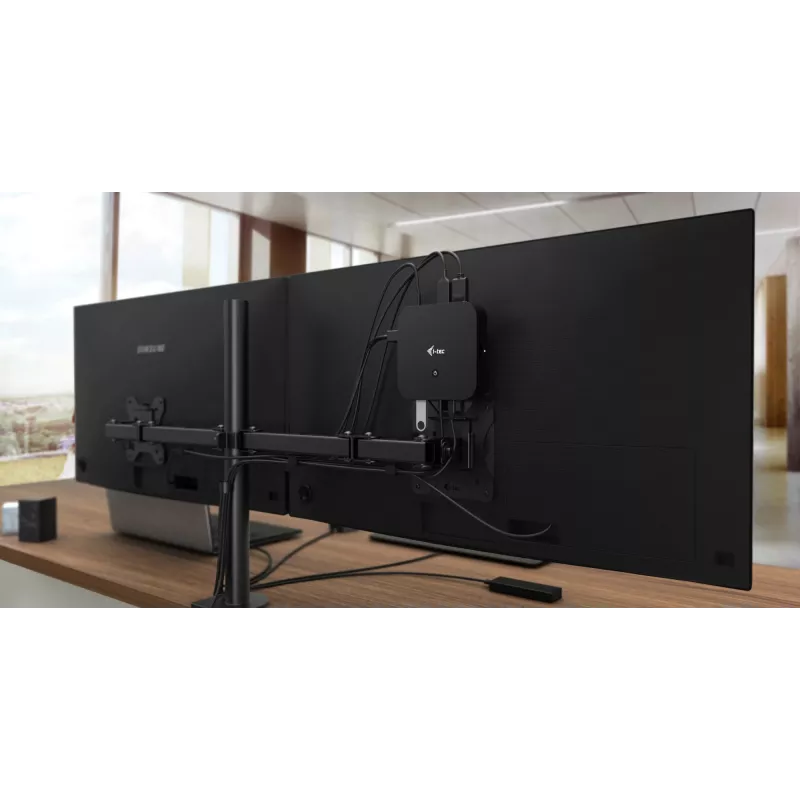

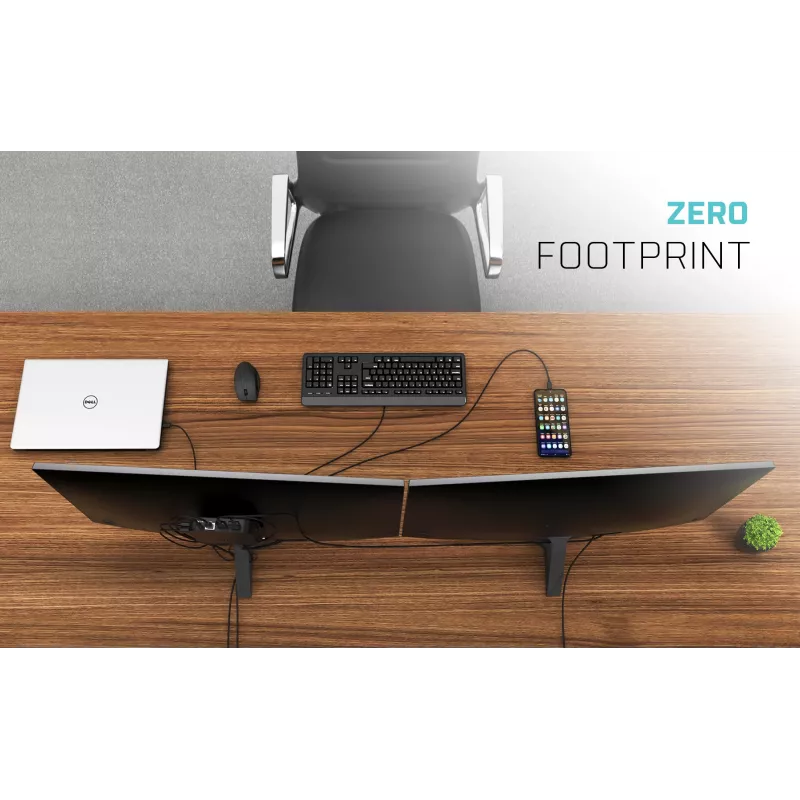

• Mounting: VESA support for installation behind a VESA-compatible monitor
• Compatibility: Windows 10, macOS X (MST not supported), Android, ChromeOS, Linux

How to use

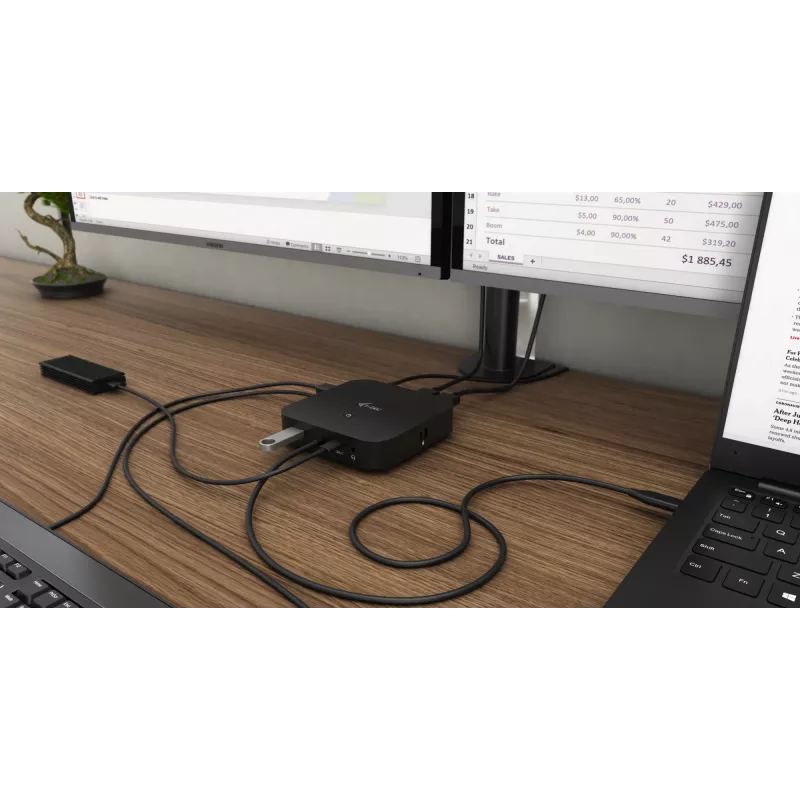

Connect the docking station to your laptop using the USB-C/Thunderbolt 3 cable, attach the included 100 W USB-C power adapter to enable power delivery, and connect external displays via HDMI and DisplayPort. Plug USB peripherals into the available USB-A and USB-C ports and connect an Ethernet cable to the RJ-45 port for wired network access. Use the front combined jack for headset or microphone connection, secure the dock with a Kensington lock if necessary, and mount it behind a VESA-compatible monitor if space-saving installation is required. On macOS, be aware that connecting two displays will mirror the image due to lack of MST support.

Recommendations

For optimal multi-monitor performance, use system drivers recommended by your laptop manufacturer and connect displays directly using the dock’s DisplayPort/HDMI outputs. Verify OS support for dual 4K output and consider a laptop with Thunderbolt 3 for maximum bandwidth and full functionality.
