INFRALAN A-DQ(ZN)B2Y OM2 24G ulkokuitu-kaapeli, 24 kuitua, 5,8mm, musta, 2000N A24M2F1

The INFRALAN A-DQ(ZN)B2Y OM2 24G cable delivers 24 multimode fibers in a rugged 5.8mm loose-tube design, engineered for outdoor installations with a 2000N tensile strength and UV-resistant black PE sheath.

Overview

This cable features 24 OM2 multimode fibers (50/125µm) with maximum attenuation of 3.5 dB/km at 850nm and 1.5 dB/km at 1300nm. The loose-tube construction provides mechanical protection, while the non-metallic strain relief (glass yarns) ensures reliable performance under tension. The black polyethylene outer sheath offers UV resistance and durability for outdoor use. The cable meets CPR class Fca according to EN 50575.

What stands out

• High fiber count: 24 OM2 multimode fibers in a single cable
• Robust outdoor design: 2000N maximum tensile strength and UV-resistant PE sheath
• Compact diameter: 5.8mm for easy handling and installation
• Wide operating temperature range: -20°C to +70°C
• Low attenuation: max 3.5 dB/km at 850nm and 1.5 dB/km at 1300nm

Technical details

• Fiber type: OM2 multimode (50/125µm)
• Number of fibers: 24

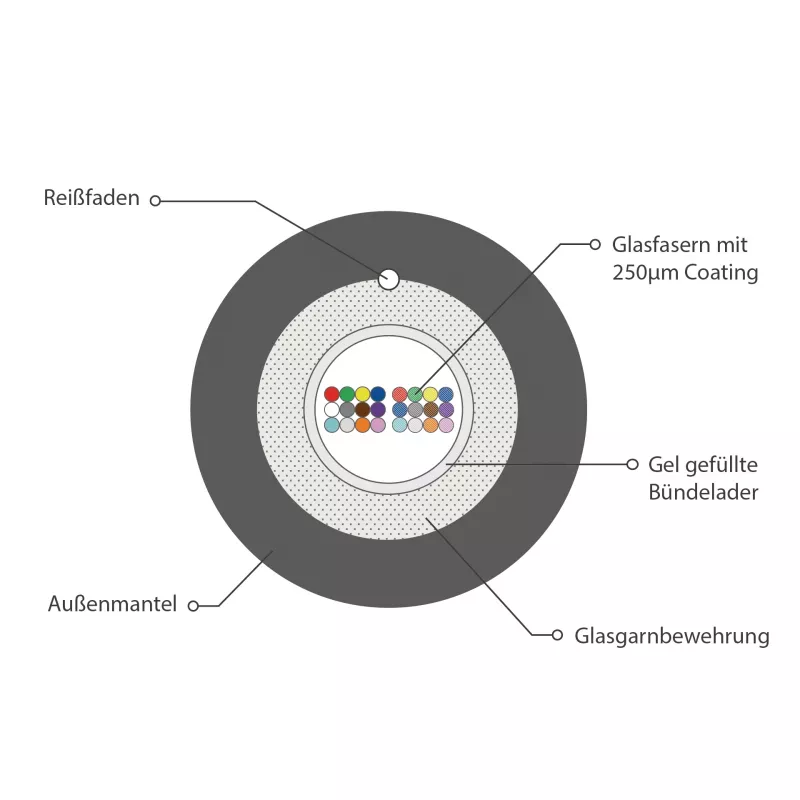

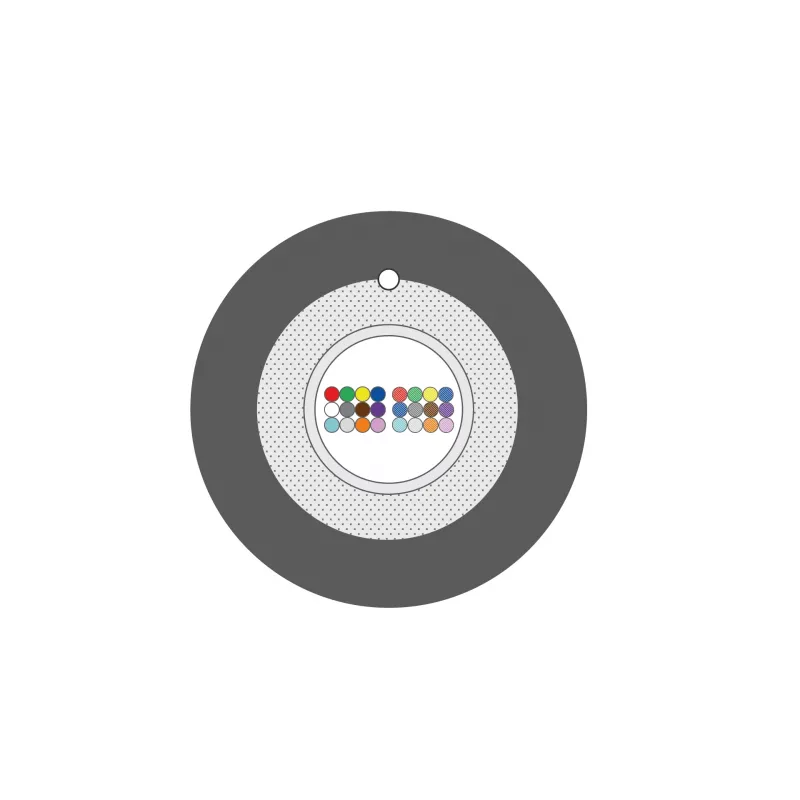

• Cable construction: Loose tube, 1x24 fibers
• Outer sheath material: PE (polyethylene), black
• Cable diameter: 5.8mm
• Maximum tensile strength: 2000N
• Fire performance class (CPR): Fca (EN 50575)
• Strain relief: Non-metallic (glass yarns)
• UV resistance: Yes
• Operating temperature range: -20°C to +70°C
• Installation temperature range: -5°C to +50°C
• Minimum bending radius (installation): 10 x cable diameter (58mm)
• Minimum bending radius (operation): 20 x cable diameter (116mm)
• Standards compliance: IEC 60794-1, EN 50575

Our verdict

A high-capacity outdoor fiber optic cable built to withstand demanding environments, offering 24 OM2 fibers with excellent mechanical and environmental resilience.
