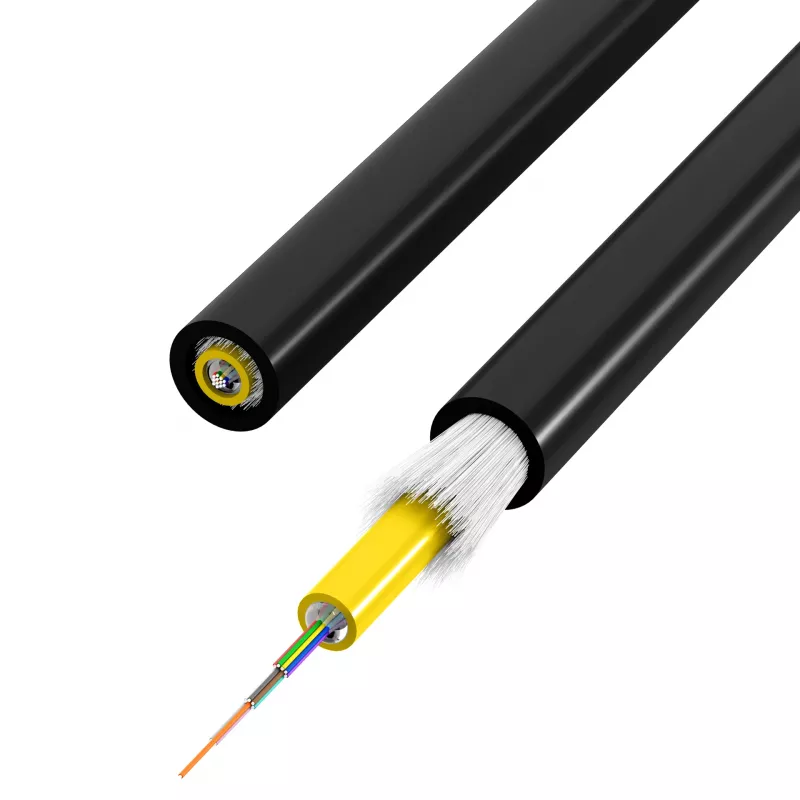

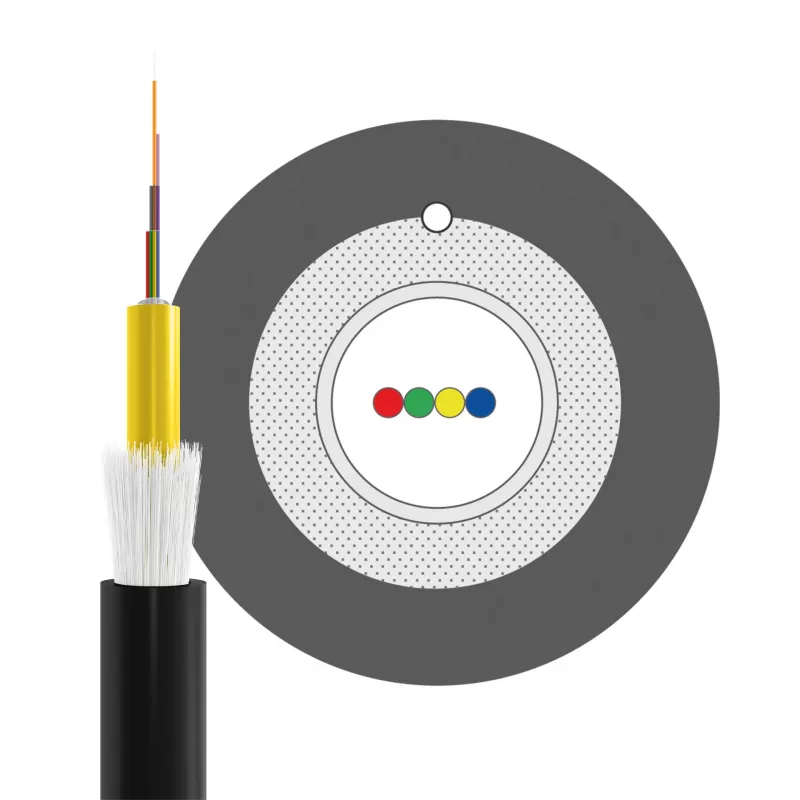

INFRALAN U-DQ(ZN)BH OM1 4G (1x4) Eca 2000N LSZH musta 5,8mm kuitukaapeli 54304.1D-E2

Fiber optic cable for indoor installations requiring flame-retardant, low-smoke, and halogen-free properties. This cable features 4 multimode OM1 fibers in a loose tube construction, providing reliable data transmission for backbone and horizontal cabling.

Who is it for

Network installers and system integrators working on projects that demand CPR Eca fire performance and LSZH materials, especially in public buildings, offices, and industrial environments.

Main features

• 4 fibers OM1 62.5/125 µm for multimode transmission
• Loose tube construction (1x4) for mechanical protection
• LSZH outer sheath (black) for low smoke and zero halogen
• High tensile strength: 2000 N
• CPR fire rating: Eca
• Outer diameter: 5.8 mm
• Attenuation: ≤3.5 dB/km @ 850 nm, ≤1.5 dB/km @ 1300 nm
• Bandwidth: 200 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to +70°C

Specifications

• Fiber type: OM1 multimode 62.5/125 µm
• Fiber count: 4

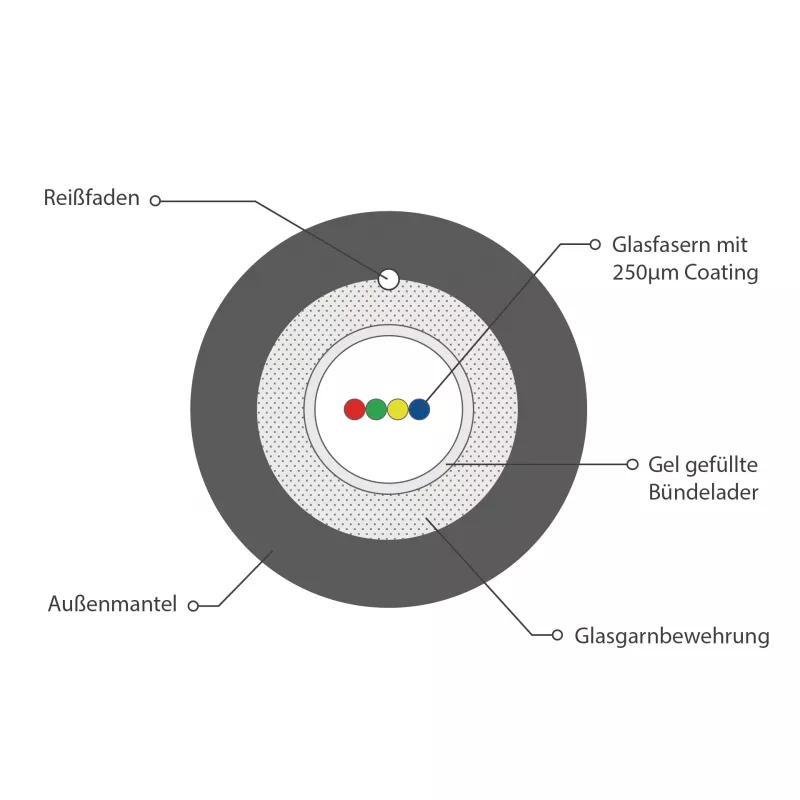

• Cable construction: Loose tube (1x4)
• Outer sheath material: LSZH
• Outer sheath colour: Black
• Outer diameter: 5.8 mm
• Tensile strength: 2000 N
• Crush resistance: 1000 N/10cm
• CPR class: Eca
• Attenuation @ 850 nm: ≤3.5 dB/km
• Attenuation @ 1300 nm: ≤1.5 dB/km
• Bandwidth @ 850 nm (OFL): 200 MHz·km
• Bandwidth @ 1300 nm (OFL): 500 MHz·km
• Operating temperature: -20°C to +70°C
• Storage temperature: -20°C to +70°C
• Minimum bending radius (installation): 20 x outer diameter
• Minimum bending radius (operation): 10 x outer diameter

Tips

Handle with care during installation to avoid exceeding the minimum bending radius. Use appropriate pulling grips and lubricants for long runs.
