INFRALAN U-DQ(ZN)BH OM3 12G (1x12) Eca 2000N LSZH musta 5,8mm kuitukaapeli 54512.1D-E2

With a maximum tensile strength of 2000 N, this INFRALAN fiber optic cable is built to withstand demanding installations while maintaining signal integrity.

Overview

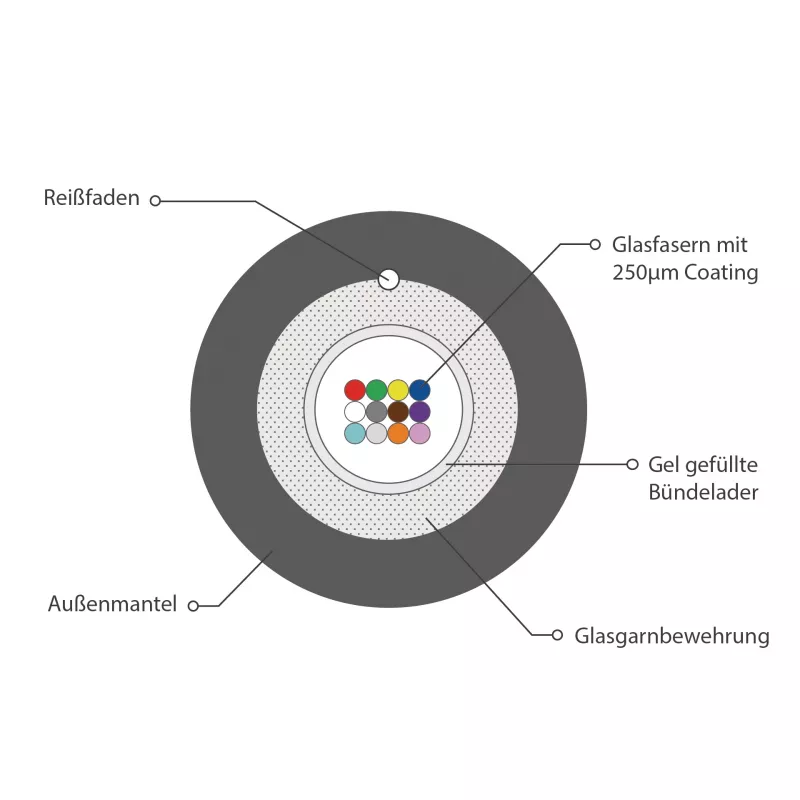

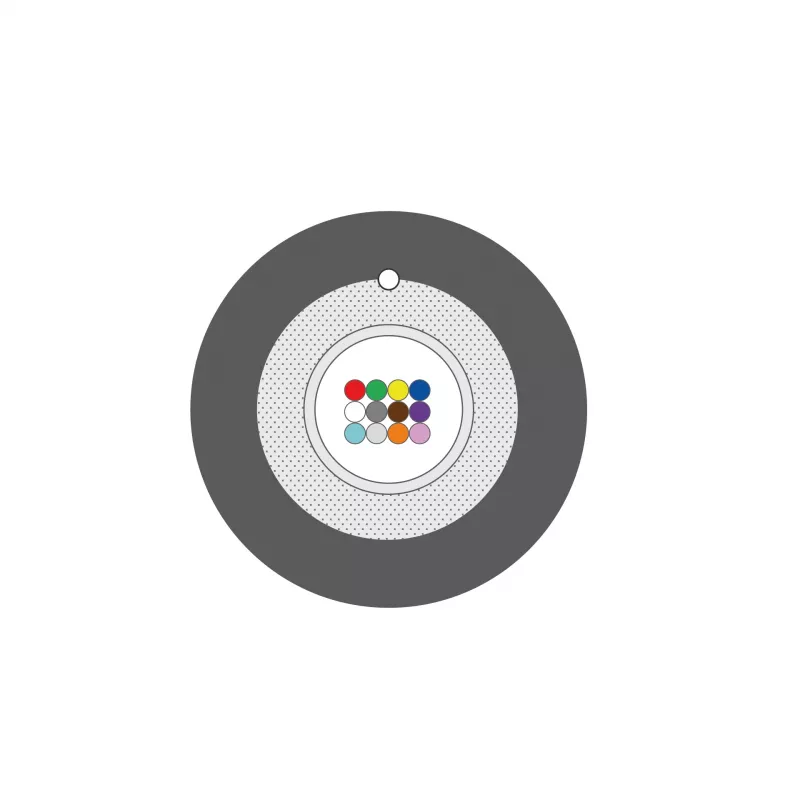

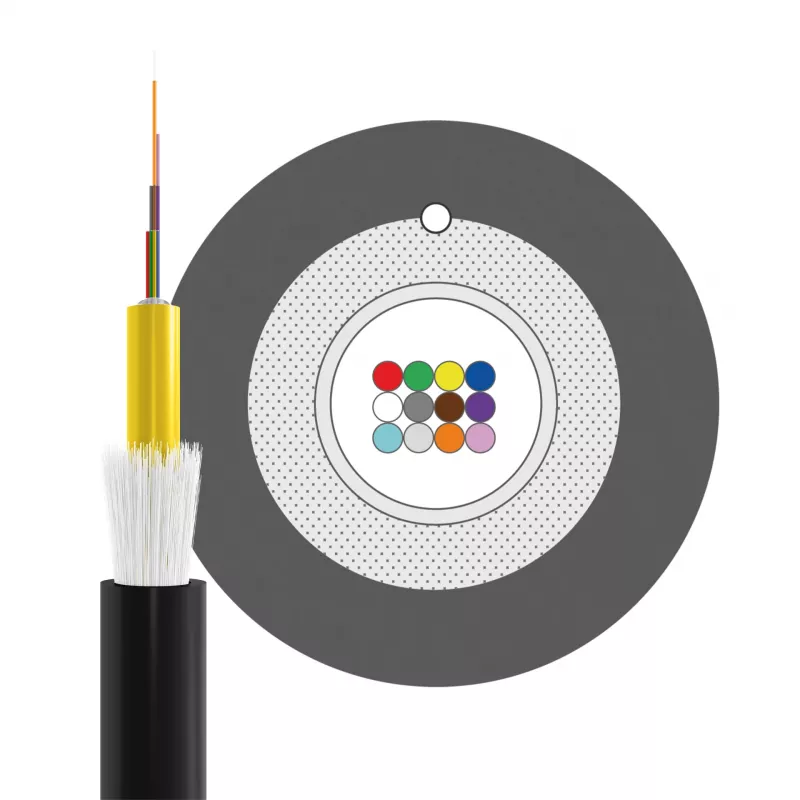

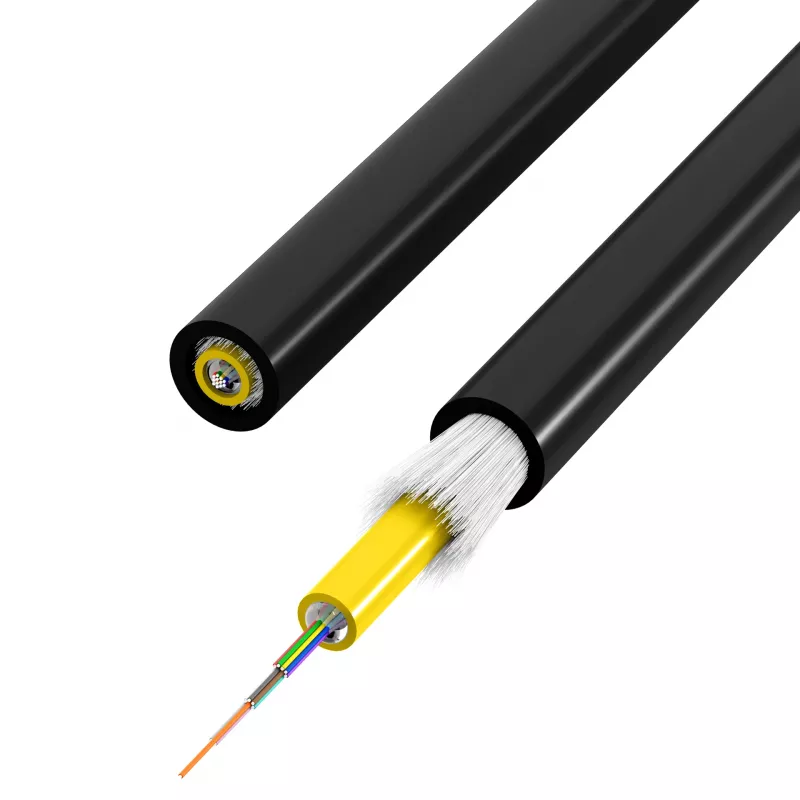

The INFRALAN U-DQ(ZN)BH OM3 12G cable features 12 multimode OM3 fibers in a single tube, enclosed in a black LSZH sheath with an outer diameter of 5.8 mm. It meets CPR fire performance class Eca and is suitable for universal indoor/outdoor use.

What stands out

• 12 OM3 multimode fibers (50/125 µm) for high-speed data transmission
• Non-metallic, dry construction with 2000 N tensile strength
• Low Smoke Zero Halogen (LSZH) sheath in black for safety and durability
• CPR class Eca compliant for fire performance
• Attenuation ≤ 2.5 dB/km at 850 nm and ≤ 0.8 dB/km at 1300 nm
• Modal bandwidth: 1500 MHz·km at 850 nm, 500 MHz·km at 1300 nm

Technical details

• Fiber type: Multimode OM3 (A1a.2)
• Fiber count: 12
• Cable construction: U-DQ(ZN)BH
• Outer diameter: 5.8 mm
• Sheath material: LSZH
• Sheath colour: Black
• CPR class: Eca
• Max tensile strength: 2000 N
• Tube configuration: 1x12
• Central element: Non-metallic
• Strain relief: Dry, non-metallic
• Application: Universal (Indoor/Outdoor)

Our verdict

A robust 12-fiber OM3 cable with LSZH sheath and high tensile strength, ideal for backbone and campus networks where fire safety and mechanical resilience are required.
