InLine 19 tuuman taitettava räkki, 2HE, 24-40 cm syvyys, harmaa

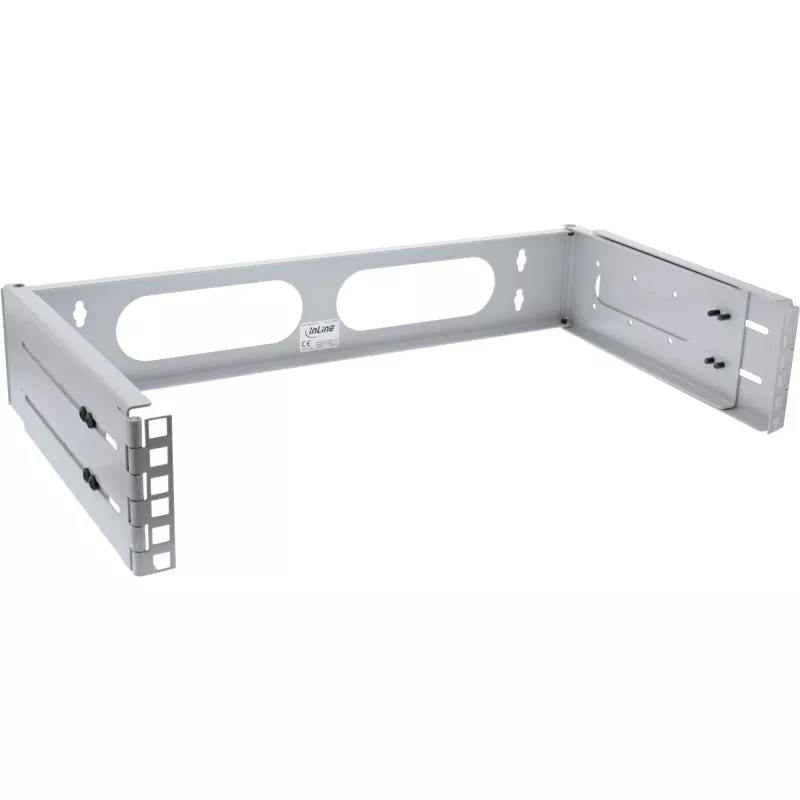

The InLine 19" 19102C 2U grey wall mounted rack is a compact folding enclosure for mounting network and IT equipment on walls. It offers 2U of rack space in a slim 494 mm wide frame with an adjustable mounting depth from 240 mm to 400 mm. The foldable design reduces installation footprint and permits easy access to rear cabling while the grey finish blends into commercial and office interiors.

Advantages

This wall mounted rack combines a small footprint with adjustable depth, enabling installation in confined spaces without sacrificing mounting flexibility. The foldable mechanism simplifies maintenance and cabling work, and the 2U capacity is suitable for switches, routers, patch panels or small servers. Constructed for straightforward wall attachment, the chassis provides secure support and a tidy visual appearance.

Suitable for

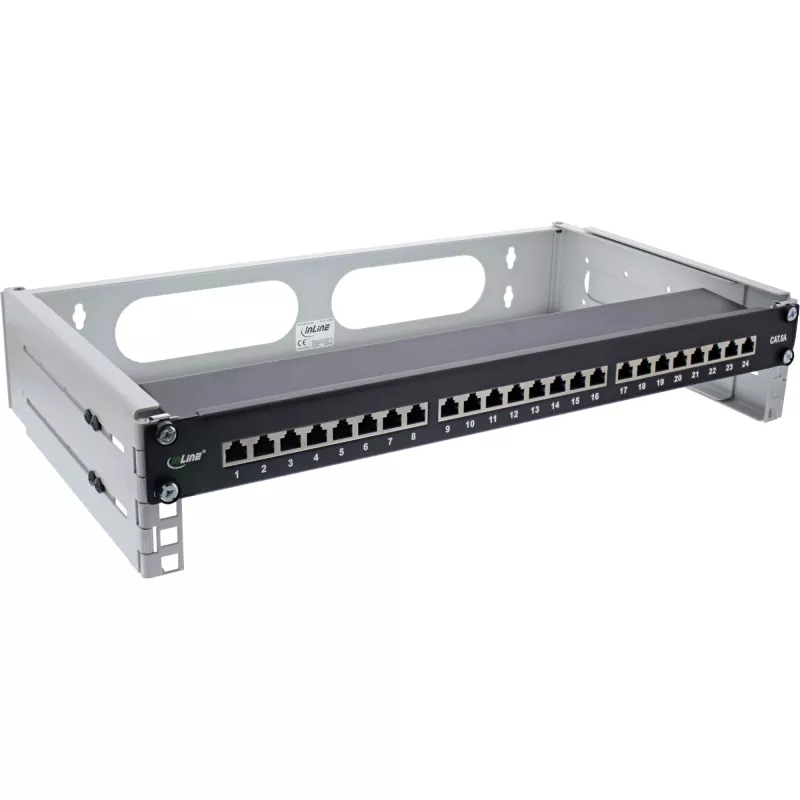

• Mounting network switches and patch panels in offices or telecom rooms
• Housing small routers, modems and firewall appliances
• Organizing UTP cabling and small power distribution units
• Deploying edge IT equipment in retail or branch locations

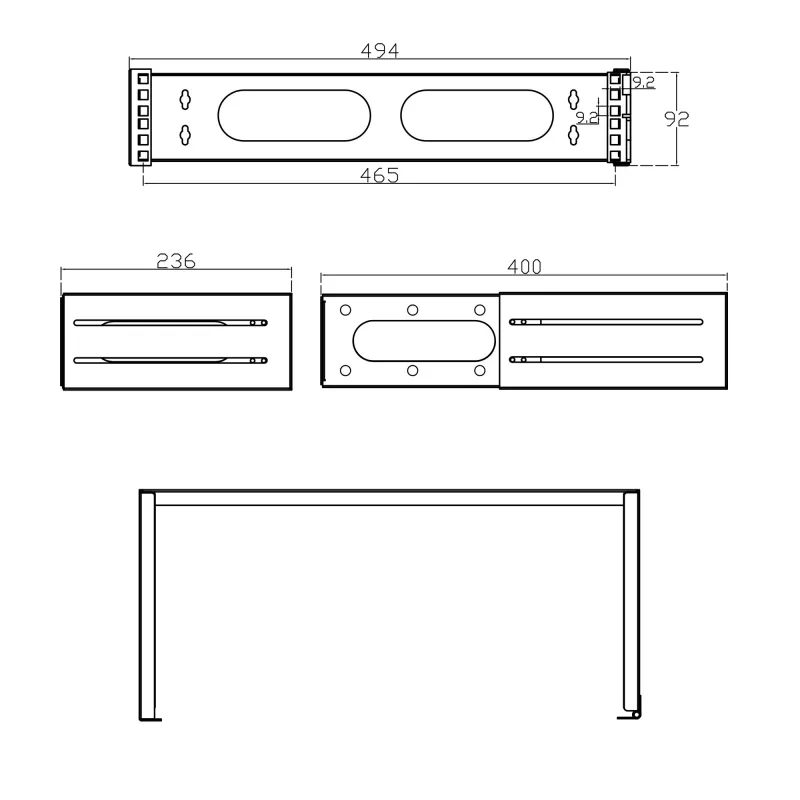

Key specifications

• Width: 494 mm
• Height: 92 mm (2U)
• Adjustable mounting depth: 240–400 mm
• Rack capacity: 2U
• Finish: grey

How to use

Secure the rack to a load-bearing wall using appropriate anchors and fasteners rated for the wall material and the installed equipment weight. Adjust the mounting rails to the required depth between 240 and 400 mm to accommodate device depth, then attach equipment to the 19" mounting profile using standard rack screws. Fold the rack closed if the design allows to reduce protrusion when servicing is not required. Route network and power cabling neatly and secure with cable ties or management clips to maintain airflow and reduce strain on connectors.

Recommendations

Verify wall strength and mounting hardware compatibility before installation; do not exceed the manufacturer's recommended load for a 2U wall mounted rack. Allow clearance for ventilation and cable access, and use surge protection or an appropriate PDUs for connected devices.
