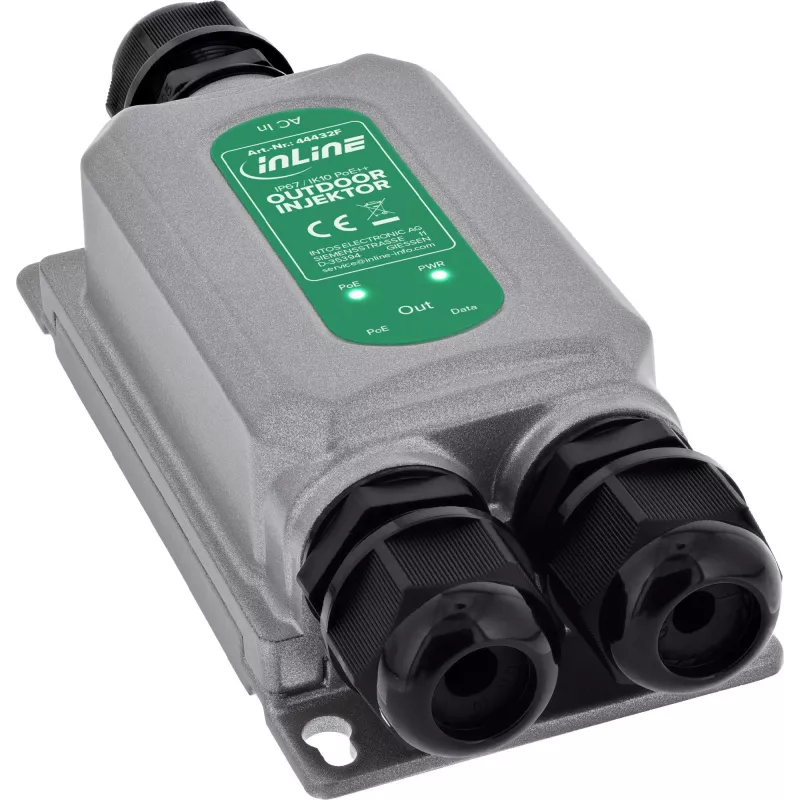

InLine® 60W PoE++ -injektori ulkokäyttöön, Gigabit, IP67

Powering outdoor network devices such as IP cameras, wireless access points, and small cells often requires a reliable PoE source that can withstand harsh environmental conditions. The InLine® 60W PoE++ injector solves this by delivering up to 60W of power over standard Ethernet cabling, with an IP67-rated weatherproof housing that protects against dust and water ingress. This makes it ideal for deployment in exposed locations where traditional indoor injectors would fail.

Who is it for

This injector is designed for system integrators, network installers, and IT professionals who need to power high-wattage PoE devices in outdoor or industrial environments. It is also suitable for small businesses or homeowners with outdoor surveillance systems or Wi-Fi access points that require reliable power and data connectivity in all weather conditions.

Main features

• Supports IEEE 802.3bt Type 3 (PoE++) standard, delivering up to 60W of power.
• Gigabit Ethernet data transfer rate (10/100/1000 Mbps) for high-speed connectivity.
• IP67-rated aluminum housing provides complete protection against dust and temporary immersion in water.
• Wide operating temperature range from -40°C to 65°C for extreme climates.
• Built-in surge protection safeguards connected devices from voltage spikes.
• Wall-mountable design with LED indicators for power and PoE status.
• Supports 4-pair power delivery (Mode A & B) for maximum efficiency over distances up to 100 meters.

Specifications

• PoE Standard: IEEE 802.3bt Type 3 (PoE++)
• Max Power Output: 60W
• Data Transfer Rate: 1 Gbps (Gigabit Ethernet)
• Ethernet Ports: 2x RJ45 (1x Data In, 1x Data+Power Out)
• Ingress Protection: IP67
• Input Voltage: AC 100-240V, 50/60Hz
• Output Voltage: DC 55V
• Operating Temperature: -40°C to 65°C
• Mounting Type: Wall-mountable
• LED Indicators: Power, PoE Status
• Surge Protection: Yes
• Ethernet Standards Supported: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• PoE Pin Assignment: 4-pair (Mode A & B, 1/2(+), 3/6(-) and 4/5(+), 7/8(-))
• Housing Material: Metal (Aluminum)
• Max Cable Distance: 100m (328 ft)
• Certifications: CE, FCC, RoHS
• Power Connector: IEC C14

Tips

When installing this injector outdoors, ensure that all connected cables are properly sealed and rated for outdoor use to maintain the IP67 protection. Use shielded twisted pair (STP) cables for best performance and to minimize interference. The injector can be mounted on a wall or pole using appropriate brackets, and it is recommended to install it in a location that is easily accessible for maintenance but protected from direct sunlight to prolong its lifespan.
