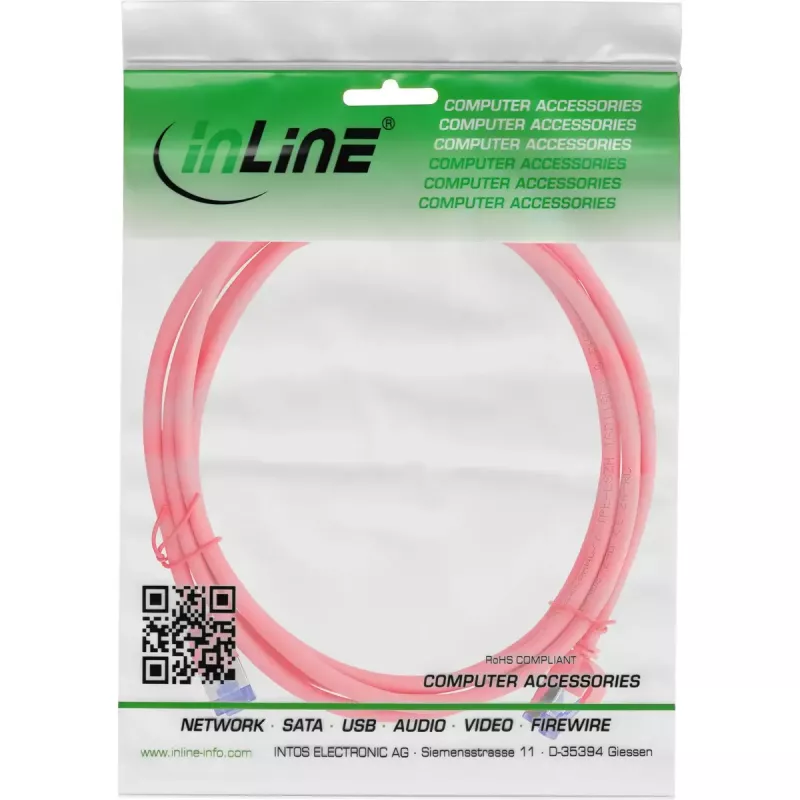

InLine 74901R Slim-patch-kaapeli, Cat.6A, S/FTP, TPE (LSZH), joustava, PoE, punainen, 1 m

The InLine 74901R is a slim Cat.6A S/FTP patch cable with a flexible TPE (LSZH) sheath, designed for space-saving network installations. It supports PoE up to 87 watts (4PPoE) and delivers full Cat.6A transmission quality with pure copper conductors.

Key features

• Slim design with approx. 40% less space required than conventional AWG26 patch cables
• Full Cat.6A transmission quality up to 10 Gbit/s on lengths up to 30 meters
• PoE support up to 87 watts (4PPoE)
• TPE (LSZH) sheath: halogen-free, flame-retardant, flexible
• S/FTP shielding (pair and overall shielding)
• Gold-plated contacts

Specifications

• Brand: InLine
• MPN: 74901R
• Product colour: Red
• Category: Cat.6A
• Cable construction: S/FTP (PiMf)
• Conductor material: Pure copper
• Wire gauge: AWG28
• Sheath material: TPE (LSZH – Low Smoke Zero Halogen)
• Operating temperature: -20 to +75 °C
• Storage temperature: -20 to +75 °C
• Outer diameter: 4.1 mm
• Assignment: 1:1 according to T568B
• Connectors: RJ45 plug straight (Side A) to RJ45 plug straight (Side B)
• Design: Round cable slim
• Length: 1 m
• Max. supported data transfer rate: 10 Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90 W
• Wire pairs used for power transmission: All
