InLine 74955B verkkokaapeli sininen 0,5 m Cat6a S/FTP (S-STP)

InLine 74955B networking cable Blue 0.5 m Cat6a S/FTP (S-STP)

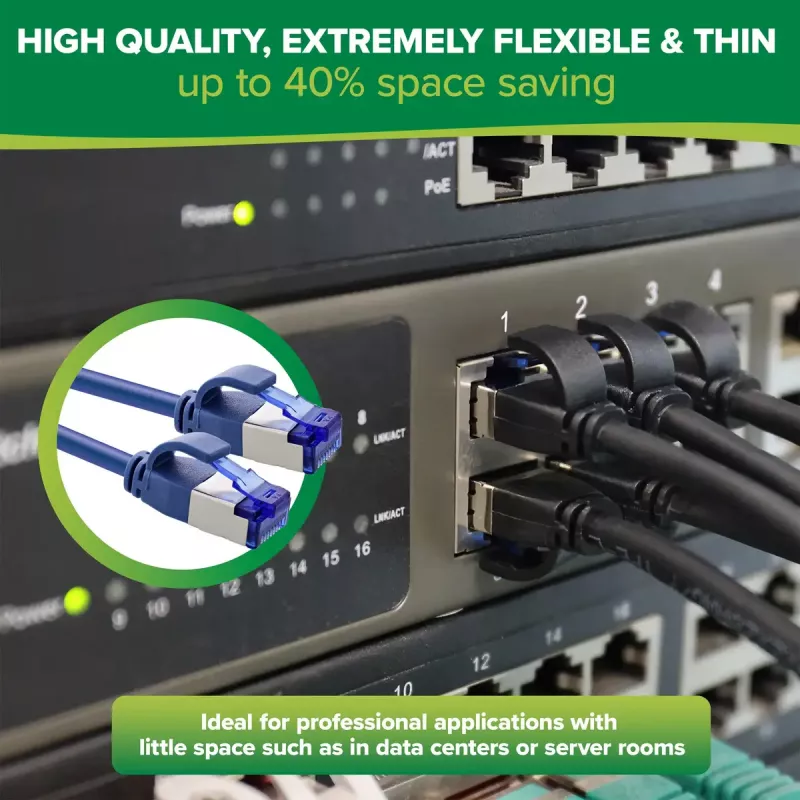

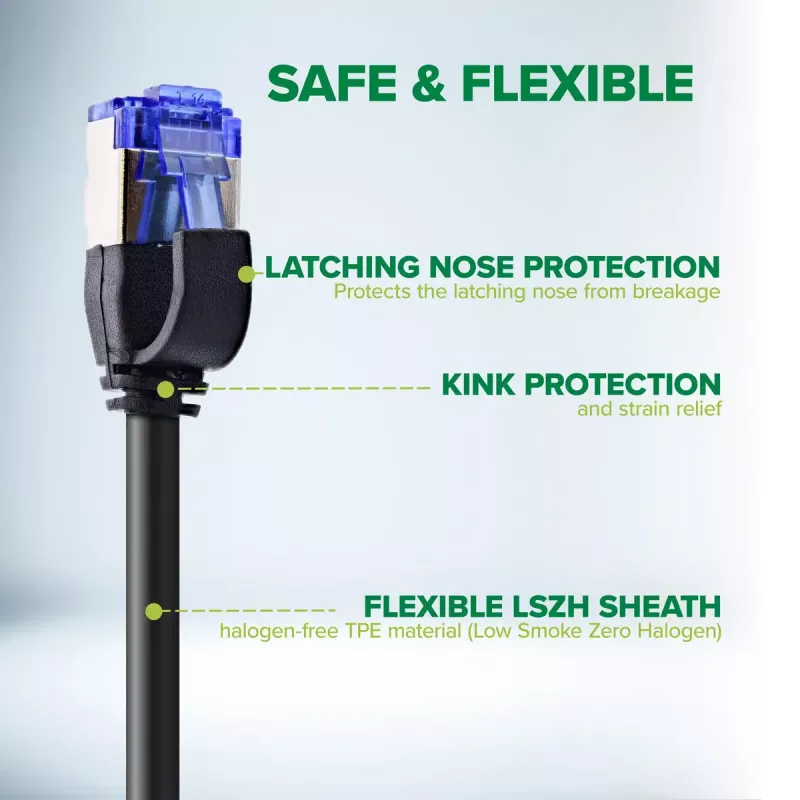

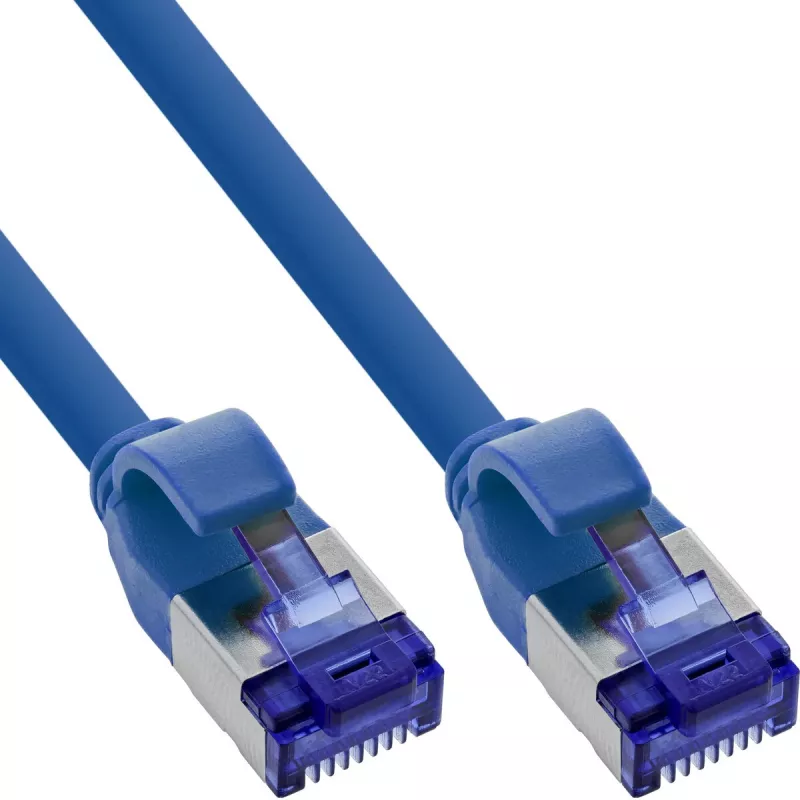

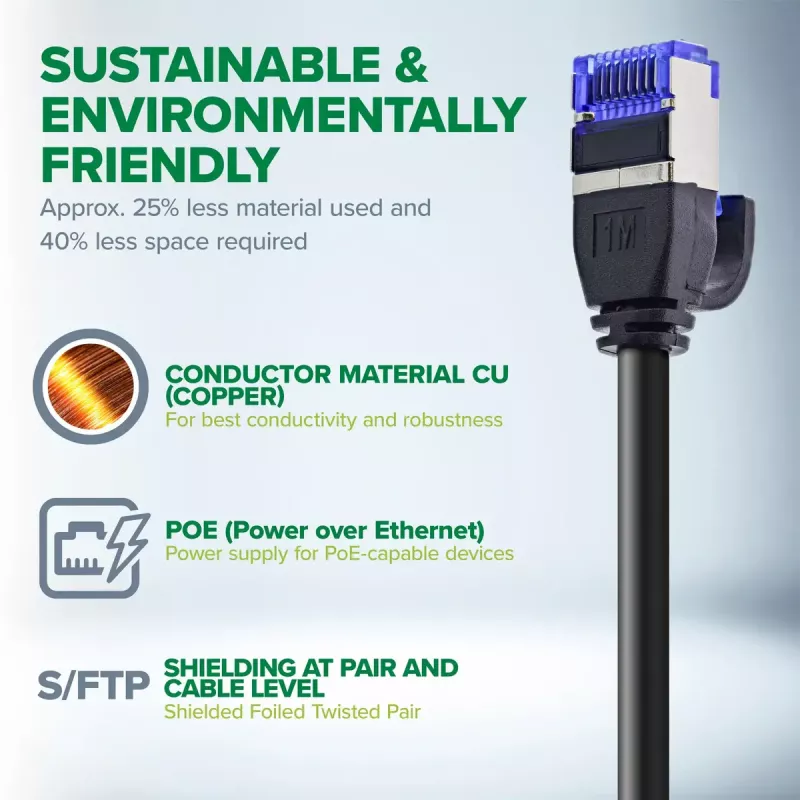

The InLine 74955B is a Cat6a S/FTP (S-STP) patch cable, 0.5 m long, in blue. Part of the InLine Slim Cat.6A range, its slim AWG28 design takes about 40% less space than conventional AWG26 patch cables, allowing higher port density in network cabinets and improving airflow and cooling. High-quality pure-copper conductors deliver full Cat.6A performance up to 500 MHz and up to 10 Gbit/s over lengths up to 30 m, and support 4PPoE (Power over Ethernet) up to 87 W for IP cameras, access points or VoIP phones. The S/FTP double shielding (pair and overall) protects reliably against electromagnetic interference. The flexible TPE (LSZH) jacket is halogen-free, flame-retardant and low-smoke, suited to tight cable routes and safety-critical installations, and uses about 25% less material. Both connectors are gold-plated RJ-45, wired 1:1 to T568B. Outer diameter 4.5 mm, operating temperature -20 to +75 degrees C, data rate 10000 Mbit/s. Intended for indoor use in cabinets, racks and patch panels; connect one RJ-45 plug to a switch, patch panel or device port and the other to the matching port, avoiding sharp bends.

Specifications

• Country of origin: Taiwan
• Depth: 500 mm
• Height: 12 mm
• Operating temperature (T-T): -20 - 75 °C
• Package depth: 245 mm
• Package height: 15 mm
• Package weight: 24 g
• Package width: 132 mm
• Product colour: Blue
• Storage temperature (T-T): -20 - 75 °C
• Weight: 16 g
• Width: 15 mm
• Compliance certificates: CE, REACH, RoHS

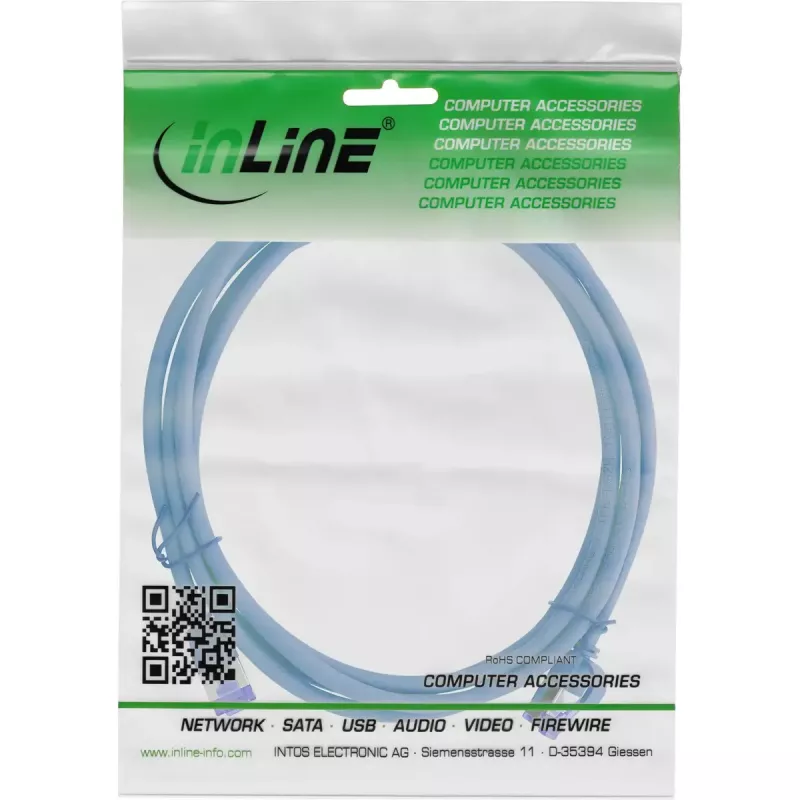

• Package type: Polybag
• Quantity per pack: 1 pc(s)
• Package volume: 500 cm³

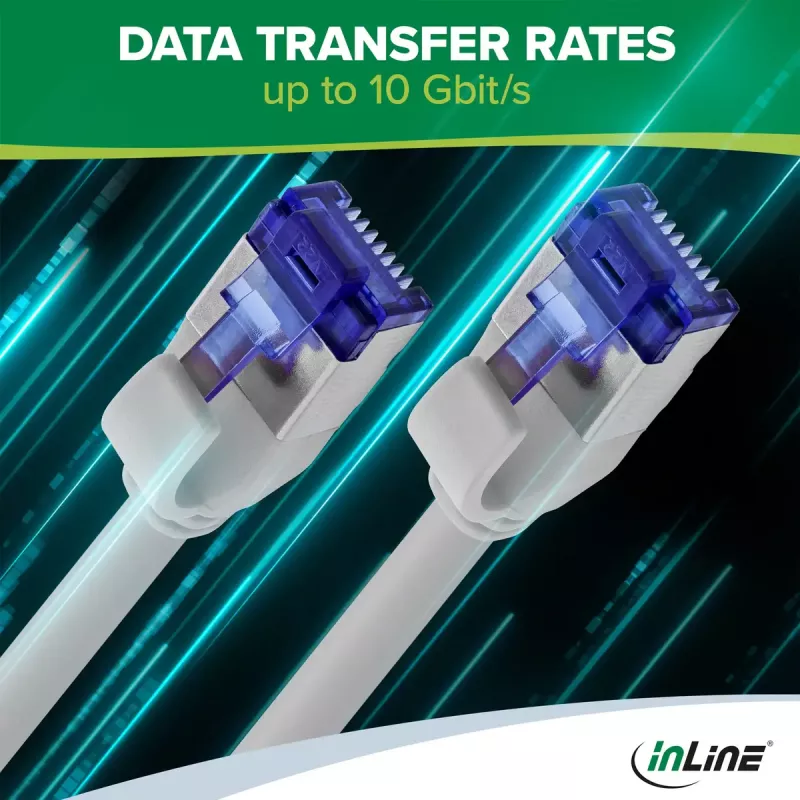

• Data transfer rate: 10000 Mbit/s
• Cabling technology: 10GBase-T
• Plug and Play: Yes
• Cable length: 0.5 m

Genuine Inline product — MPN: 74955B · EAN: 4043718335237.
