InLine 76660X sisäinen sarjasovitin M.2 liitin 4 Gbit/s

Compact M.2 to 2x RS-232 converterfor serial applications
PCIe 2.0 interface (5 GT/s)for reliable and fast data transmission
Integrated ASIX AX99100 controllerwith support for 16C950 UART compatibility
Two DB9-9pin serial portsfor industrial and serial communication applications
Onboard LED indicatorto display the operating activity
No additional driver required

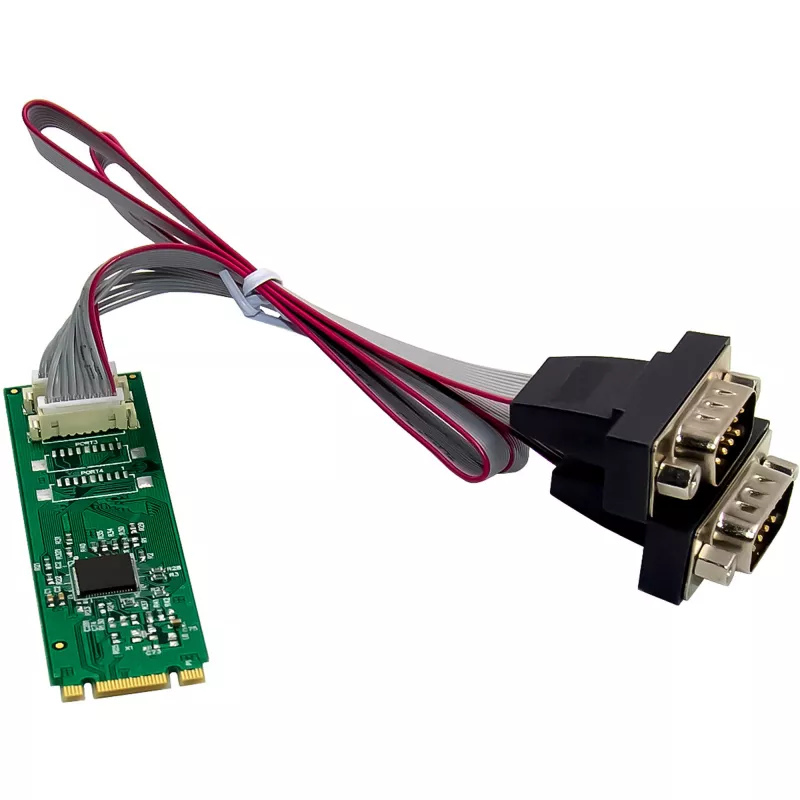

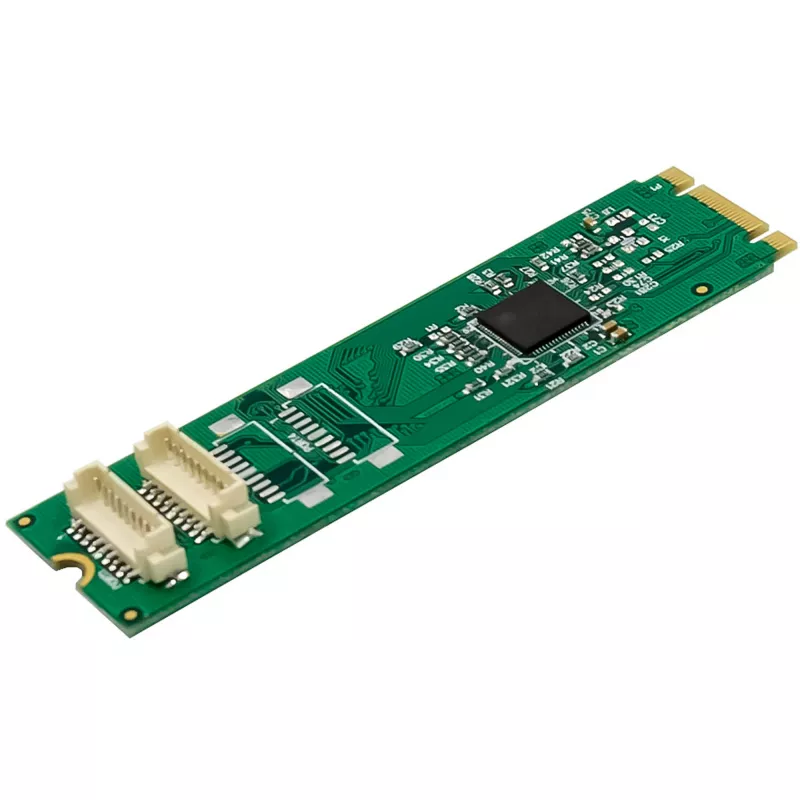

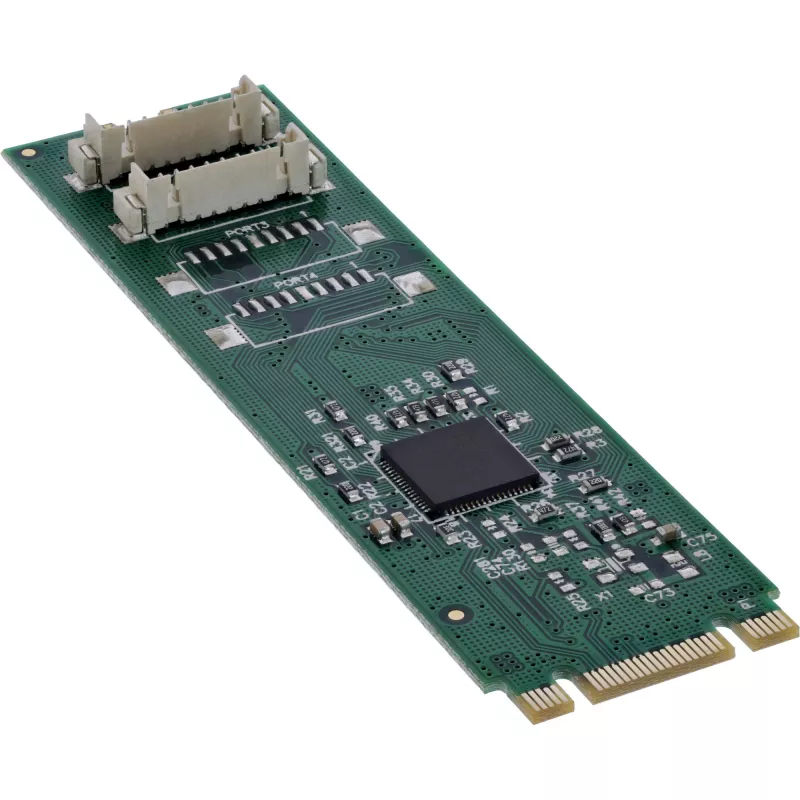

The InLine® interface card M.2 to 2x serial 9pin connectoroffers a compact and powerful solution for expanding a system with two serial RS-232 DB9 interfaces. The adapter uses a PCIe 2.0 interface (5 GT/s)and integrates the ASIX AX99100 controller, which is compatible with 16C950 UART to enable reliable and flexible serial communication.
With a maximum transmission rate of up to 1 Mb/s, the card is ideal for industrial applications, embedded systems and serial control devices. The automatic detection of the lane configuration ensures seamless system integration.
Power is supplied directly via the M.2 slot (3.3 V), so no additional power connection is required. Two low-profile slot bracketsare included for flexible use of the card in different housings.
Technical data:

Bus type & PCIe: M.2 PCIe end-point controller (single-lane, PCIe 2.0 5 GT/s)
Connection – interfaces:
1 x 59-pin M.2 slot (B+M key)
2 x serial RS-232 DB9 connector (9-pin)

Controller/chipset: ASIX AX99100
Serial interfaces:
Maximum transfer rate: up to 1 Mb/s
Data bits: 5, 6, 7, 8, 9 bits
Flow control: None, Xon/Xoff, RTS/CTS
Parität: even, odd, none, marked, empty
FIFO buffer: 256 bytes

Operating temperature: -40 °C to +85 °C

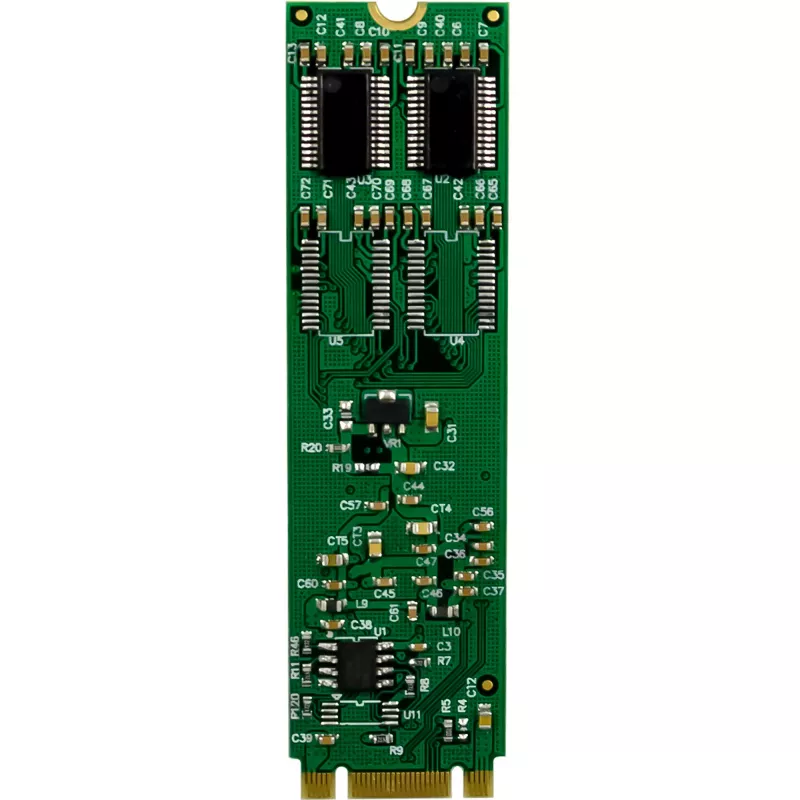

Dimensions: 22 mm x 80 mm (M.2 board)

Features:

Automatic detection of the lane configuration during booting
Onboard LED indicator to display the read/write activity
Power supply via M.2 slot (3.3 V)
Support for remote wake-up, power management and DMA
No additional driver required

System requirements:Hardware:

PC with a free M.2 slot (B+M key that supports PCIe)
Motherboard with PCI Express 2.0 or higher

Operating system support:

Windows: 11, 10, 8.1, 8, 7, Vista, XP
Linux: from kernel 2.6.31

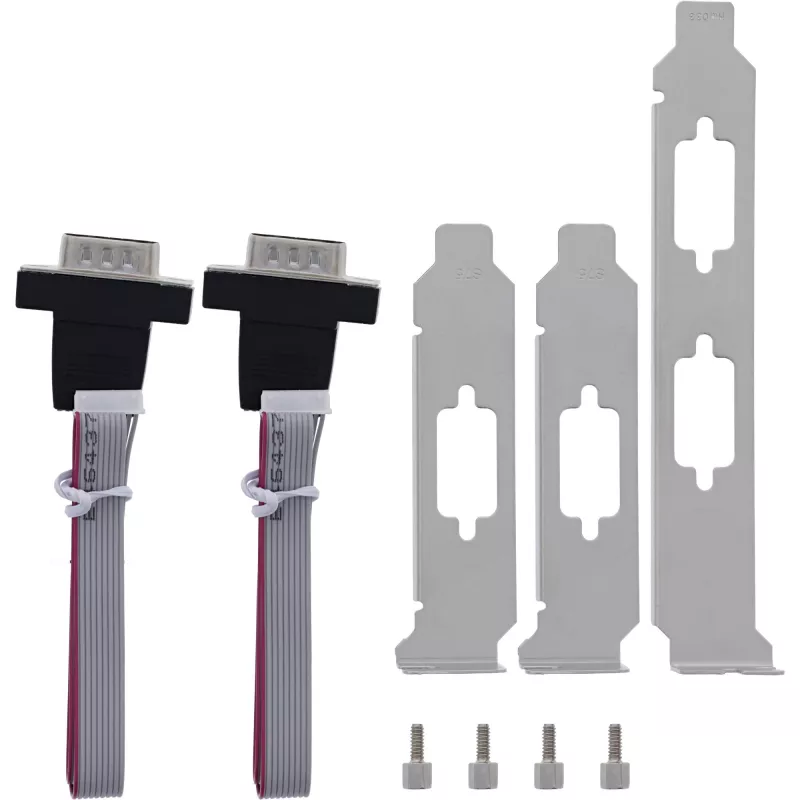

Scope of delivery:

1 x InLine® interface card M.2 to 2x serial 9pin connector
2 x low-profile slot brackets
1 x high-profile slot bracket

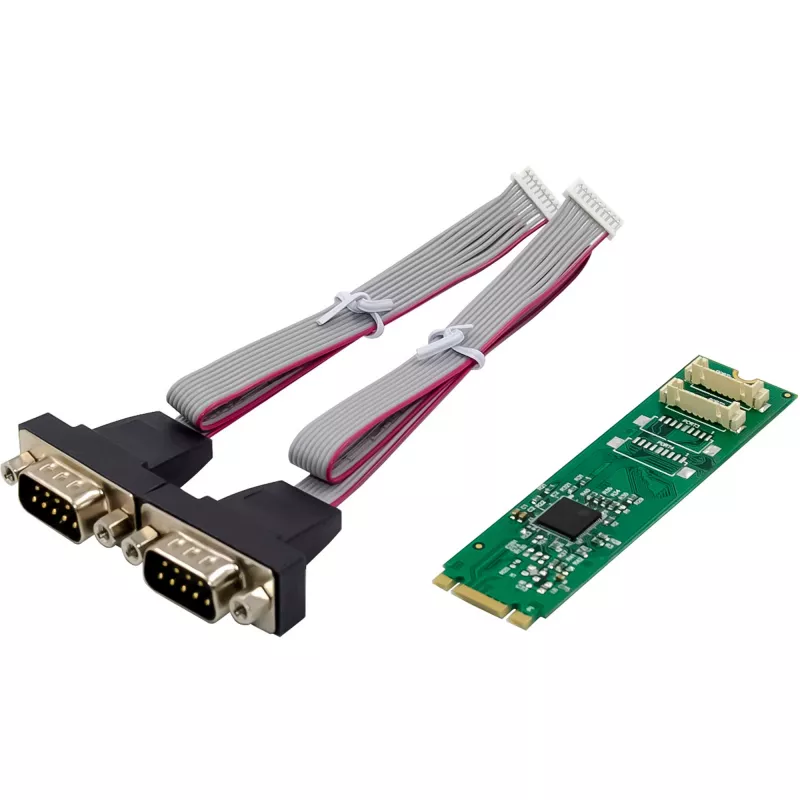

2 x DB9-9pin serial cable (20 cm length)
4 x Screw
1 x driver CD
1 x user manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 76660X. Host interface: M.2, Output interface: Serial, Host interface gender: Male. Country of origin: Taiwan. Chipset: ASIX AX99100, Data transfer rate (max): 4 Gbit/s. Power supply input voltage: 3.3 V. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel..., Server operating systems supported: Windows Server 2012 R2

How to use

Install the InLine 76660X into an available M.2 slot (B+M key) on a motherboard that supports PCIe. Secure the card with the included screw and select the appropriate low- or high-profile bracket for the system chassis. Connect serial devices to the two DB9 ports using the supplied DB9 cables. The adapter draws power from the M.2 slot; no external power connection is necessary. On supported operating systems (Windows 11–XP and Linux kernel 2.6.31 or newer), the device is recognized without additional drivers.

Recommendations

For reliable serial communication, use shielded DB9 cables where appropriate and ensure the host motherboard BIOS is configured to enable M.2 PCIe endpoints. Verify operating system compatibility before installation and place the card in a slot that provides sufficient airflow to meet the specified operating temperature range.
