InLine 92504D johdinliitin Micro-USB / riviliitin, 5-napainen musta, vihreä

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Integrated USB cable for flexible applications: The 1-meter connection cable connects systems immediately – without additional accessories or soldering.
Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping.
Versatile use in industry:For fast connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – without soldering.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

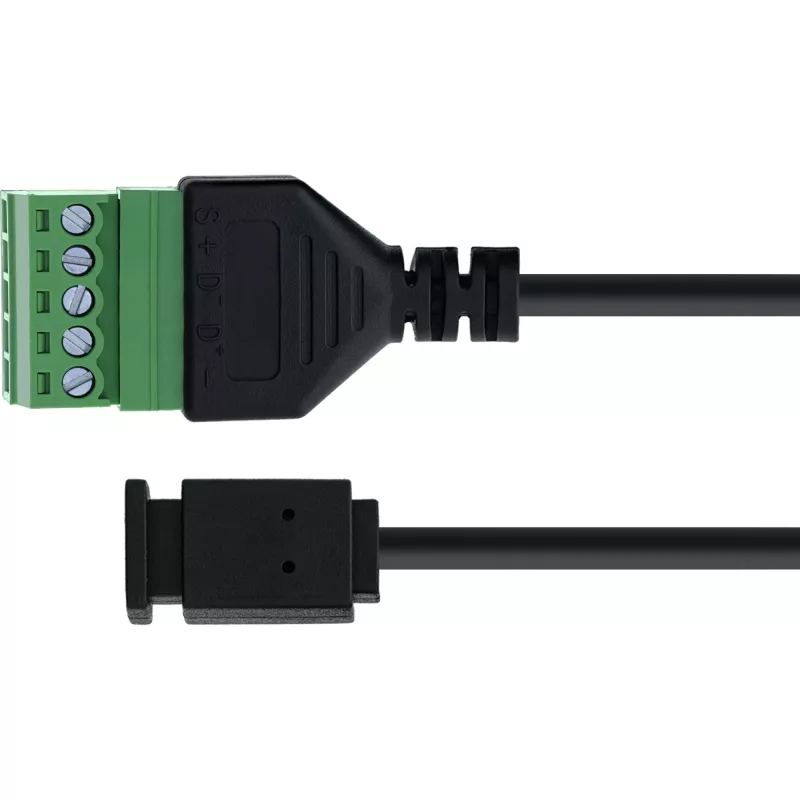

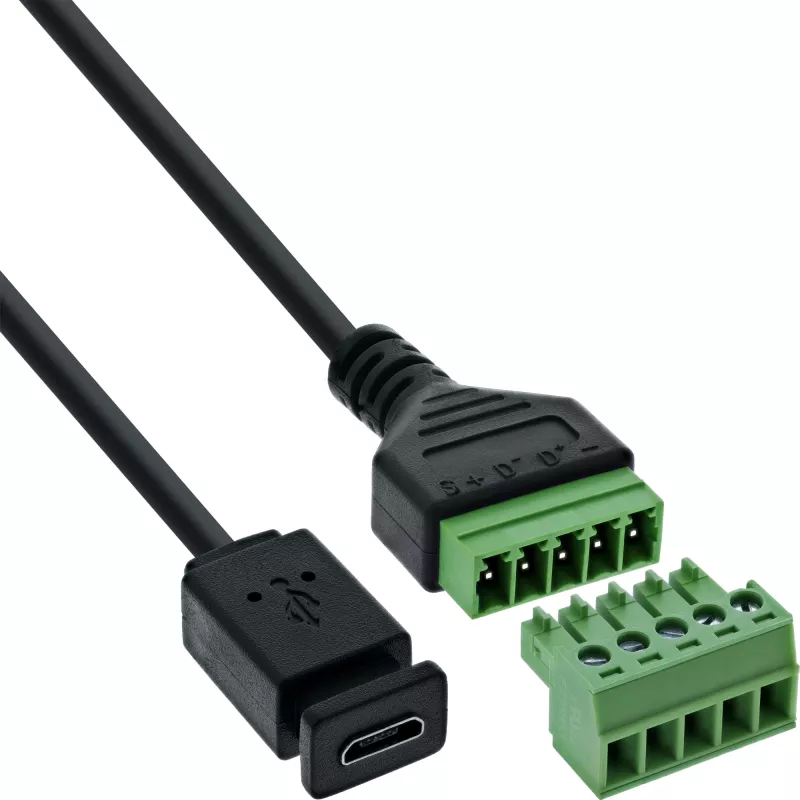

The InLine® Micro USB 2.0 terminal block adapter with 5-wire connection cable combines the advantages of a stable USB connection with the flexibility of open signal wiring. The mini USB socket is permanently connected to a 5-pin screw terminal block – ideal for test benches, diagnostic devices, or embedded systems.
The screw terminals are clearly labeled (1: ground, 2: D+, 3: D–, 4: voltage, 5: shield) and enable secure and unambiguous signal assignment. The terminal connections with a 5.0 mm grid size support wires in the range of 16–26 AWG. Wiring is tool-assisted with a flat-head screwdriver ≤ 2.5 mm.
The integrated 1-meter connection cable reduces wiring effort and allows immediate use – e.g., on control systems, test systems, or mobile test stations. An EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces.

USB interface:Micro USB 2.0, female connector
Cable length:approx. 1 m (PVC, permanently integrated)
Number of pins / assignment:5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
Connection technology:Screw terminal with pressure plate, 5.0 mm grid
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
USB operating voltage (VBUS):5 V DC
Test voltage (insulation resistance):300 V AC / 1 minute
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

InLine 92504D. Connector(s): Micro USB / Terminal block, 5-pin, Product colour: Black, Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 20 x 1000 x 11 mm, Weight: 33 g, Cable length: 1 m. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan

How to use

Connect the mini USB 2.0 female plug of the adapter to the corresponding male cable or device. Strip wires to the appropriate length and insert them into the matching labeled screw terminals (1: ground, 2: D+, 3: D–, 4: VBUS, 5: shield). Secure each conductor with the pressure plate using a flat-head screwdriver with a blade width ≤ 2.5 mm. Mount the adapter on a non-conductive surface or use the EVA insulating layer on the underside when placing it on conductive surfaces. The permanently integrated 1 m cable allows immediate connection to systems without additional soldering or accessory cables.

Recommendations

Use conductors within the specified 16–26 AWG range and observe the rated current of 0.7 A per pin. For reliable signal integrity, keep D+ and D– data lines twisted and avoid routing power and data lines closely in high-noise environments. Do not exceed the USB operating voltage of 5 V DC and avoid exposure beyond the stated operating temperature range.
