InLine 92504E johdinliitin USB-C / riviliitin, 5-napainen musta, vihreä

Time savings during installation: Quick wiring via screw terminals for 16–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Integrated USB cable for flexible applications: The 1-meter connection cable connects systems immediately – without additional accessories or soldering.
Clear terminal assignment & secure contact: 5-pin terminals with pressure plate, clearly labeled 1: –, 2: D+, 3: D–, 4: +, 5: S (shield) – ideal for service, testing, and prototyping.
Versatile use in industry:For fast connection of USB 2.0 signals in test setups, laboratories, commissioning, or troubleshooting – without soldering.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load and in industrial environments.

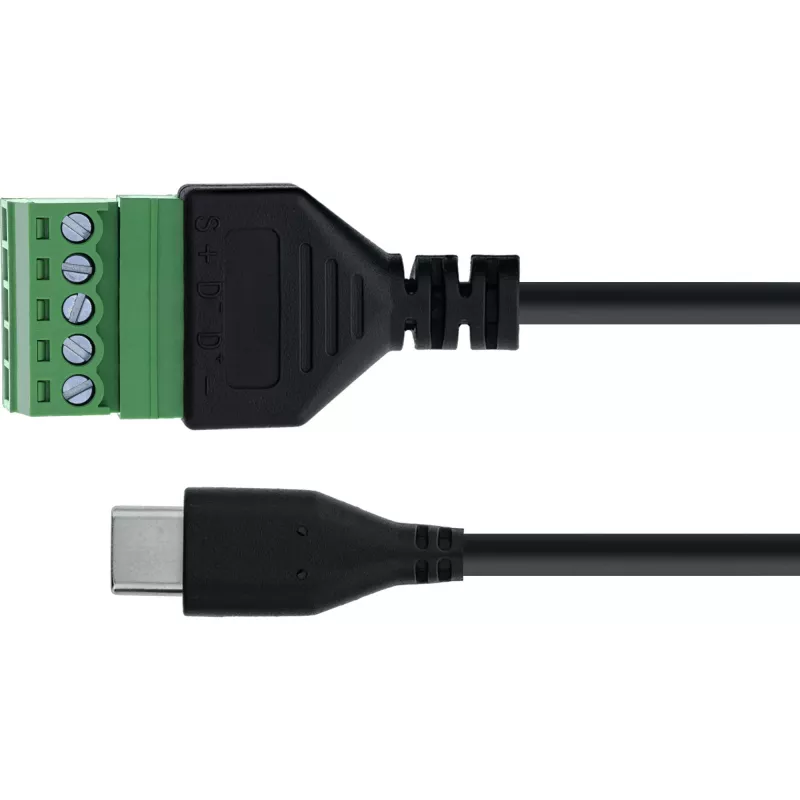

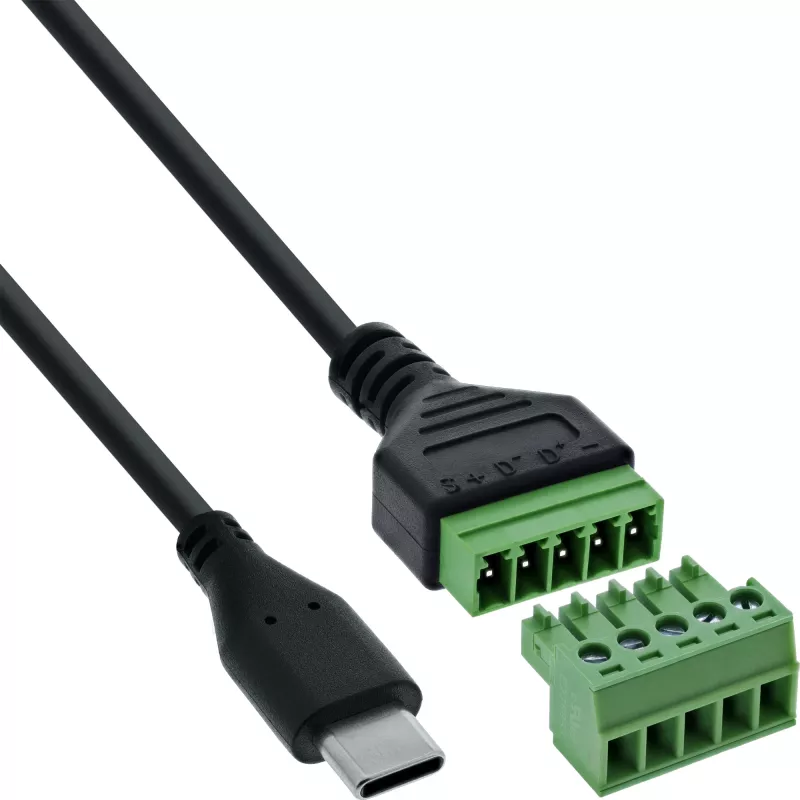

The InLine® USB‑C 2.0 terminal block adapter with 5-wire connection cable combines the advantages of a modern USB‑C connection with the flexibility of open signal wiring. The USB‑C plug is permanently connected to a 5-pin screw terminal block – ideal for test stations, diagnostic devices, or embedded systems.
The screw terminals are clearly labeled (1: ground, 2: D+, 3: D–, 4: voltage, 5: shield) and enable secure and unambiguous signal assignment. The terminals with a 5.0 mm grid size support wires in the range of 16–26 AWG. Wiring is tool-assisted with a flat-head screwdriver ≤ 2.5 mm.
The integrated 1-meter connection cable reduces wiring effort and allows immediate use – e.g., on controllers, development boards, or mobile measurement systems. An EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces.

USB interface:USB‑C 2.0, plug
Cable length:approx. 1 m (PVC, permanently integrated)
Number of pins / assignment:5 terminals / 1: – / 2: D+ / 3: D– / 4: + / 5: S
Connection technology:Screw terminal with pressure plate, 5.0 mm pitch
Connection range:16–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.7 A per pin
USB operating voltage (VBUS):5 V DC
Test voltage (insulation resistance):300 V AC / 1 minute
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:Terminal block approx. 50 × 21.2 × 18.4 mm (L × W × H)

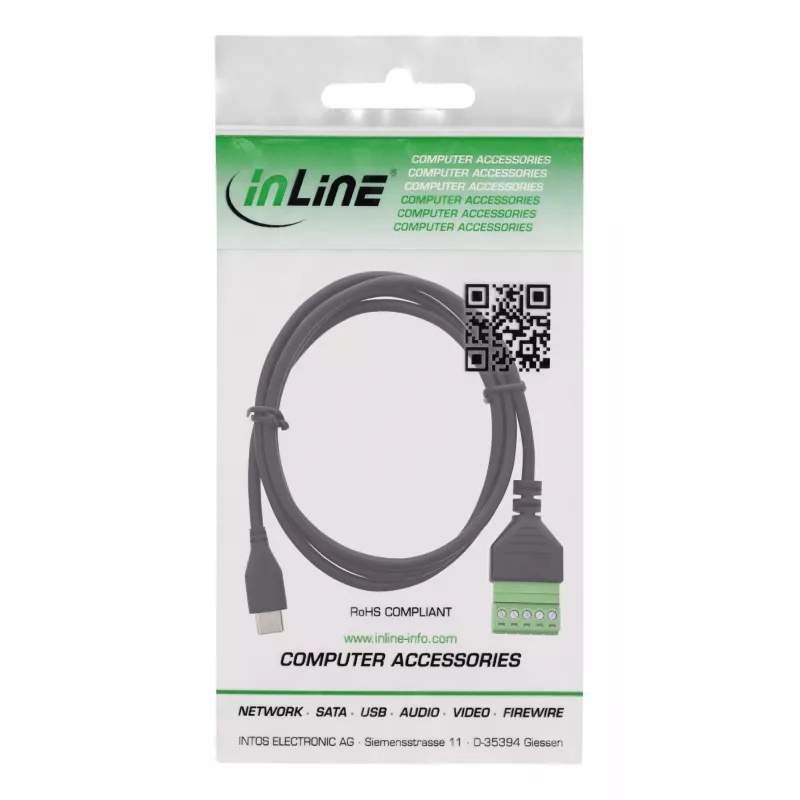

InLine 92504E. Connector(s): USB-C / Terminal block, 5-pin, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 21 x 1000 x 11 mm, Weight: 31 g, Cable length: 1 m. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan

How to use

Insert the USB‑C plug into the host or device socket. Strip and prepare conductor ends within the supported 16–26 AWG range, then loosen the screw terminals with a flat‑head screwdriver (≤ 2.5 mm), insert the wires into the clearly labeled positions (1: – / 2: D+ / 3: D– / 4: + / 5: S) and tighten the screws to secure the conductors under the pressure plates. Mount the terminal block on a non‑conductive surface or use the EVA insulating underside when placing on conductive surfaces. Verify correct wiring and that the rated current and USB VBUS (5 V DC) limits are observed before applying power.

Recommendations

Use the adapter for temporary connections, testing and prototyping where open access to USB‑C signal lines is required. Ensure wire sizes and screw torque are appropriate for 16–26 AWG conductors and avoid exceeding the 0.7 A per‑pin rating. For permanent installations, consider a dedicated connector solution if mechanical strain relief is needed.
