InLine® DC-sovitin, 5,5 x 2,5 mm, pistoke/liitin, kulma, valkoinen

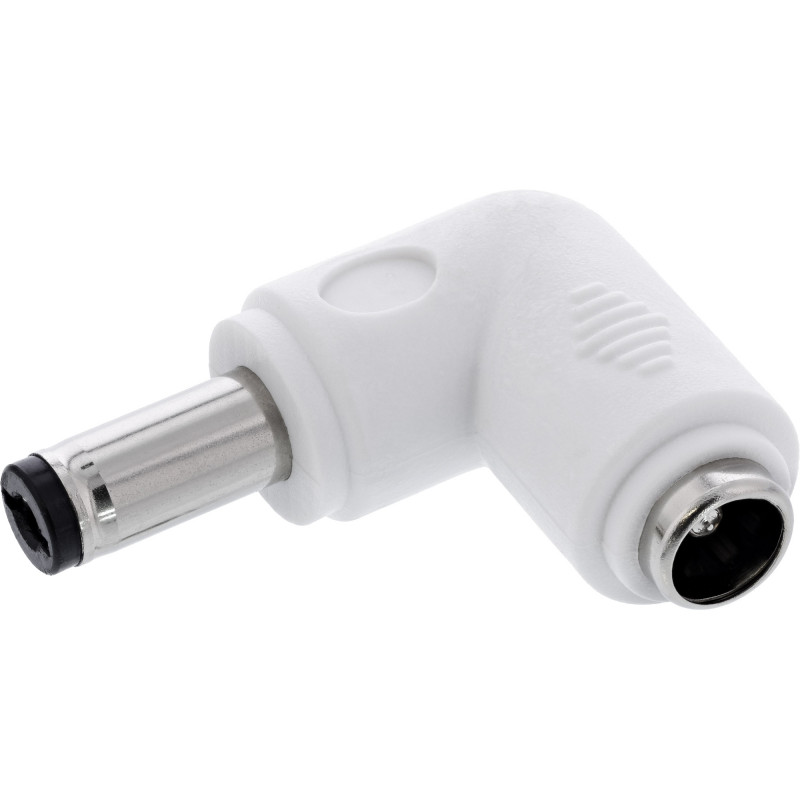

The InLine® DC adapter with 5.5 x 2.5 mm plug and socket features an angled design that directs cables to the side, saving space in tight installations. It connects a DC male plug to a DC female socket of the same size, allowing existing power connections to be extended without replacing cables. With a 12 V, 2 A, 24 W rating, this passive adapter is ideal for equipment racks, test setups, and compact enclosures.

Key features

• Angled 90° design for space-saving cable management
• Connects 5.5 x 2.5 mm DC male plug to DC female socket
• Passive operation – does not alter voltage or current
• Rated for 12 V, 2 A, 24 W
• Nickel-plated metal sleeves
• White PVC housing

Specifications

• Brand: InLine
• MPN: 26899D
• Product colour: White
• Connection 1: DC male plug (5.5 x 2.5 mm)
• Connection 2: DC female socket (5.5 x 2.5 mm)
• Operating voltage: 12 V
• Maximum operating current: 2 A
• Maximum power: 24 W
• Housing material: PVC
• Metal sleeves: Nickel-plated
• Type: Angled
• Signal: Power
• Country of origin: China
• Manufacturer: INTOS ELECTRONIC AG, Siemensstrasse 11, 35394 Gießen, Deutschland, [email protected]
• EAN: 4043718350032
• Customs tariff number: 8536699099
• Net weight: 0.005 kg
• Article dimensions (W x H x L): 2.40 cm x 1.00 cm x 3.00 cm
• Packaging dimensions (W x H x L): 0.070 m x 0.015 m x 0.125 m
• Packaging volume: 0.001 m³
