InLine Desktop KVM -kytkin 2 porttia DisplayPort USB 3.0 -keskitin audiotoiminnolla

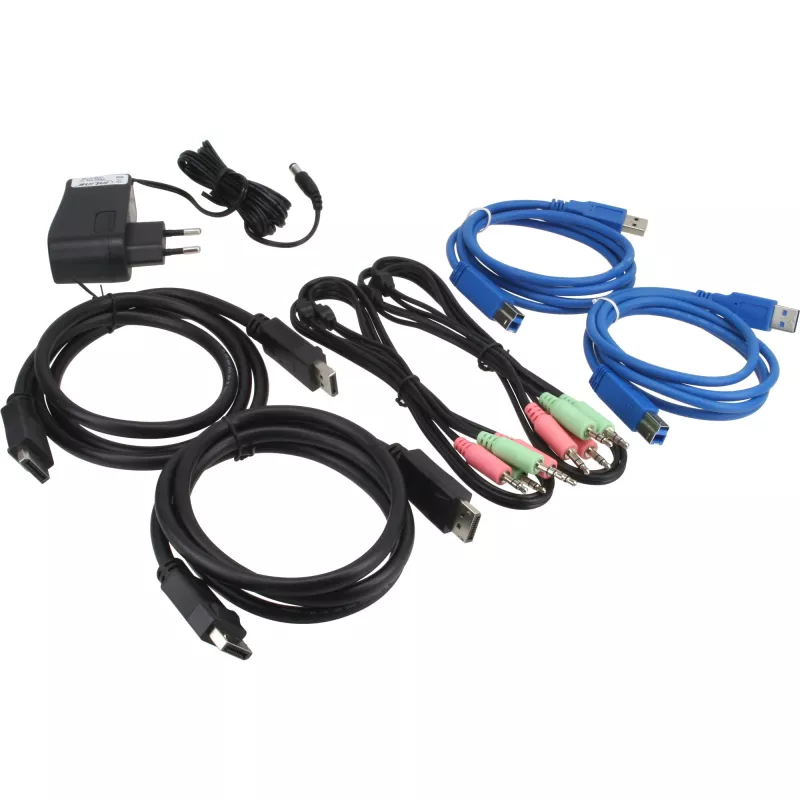

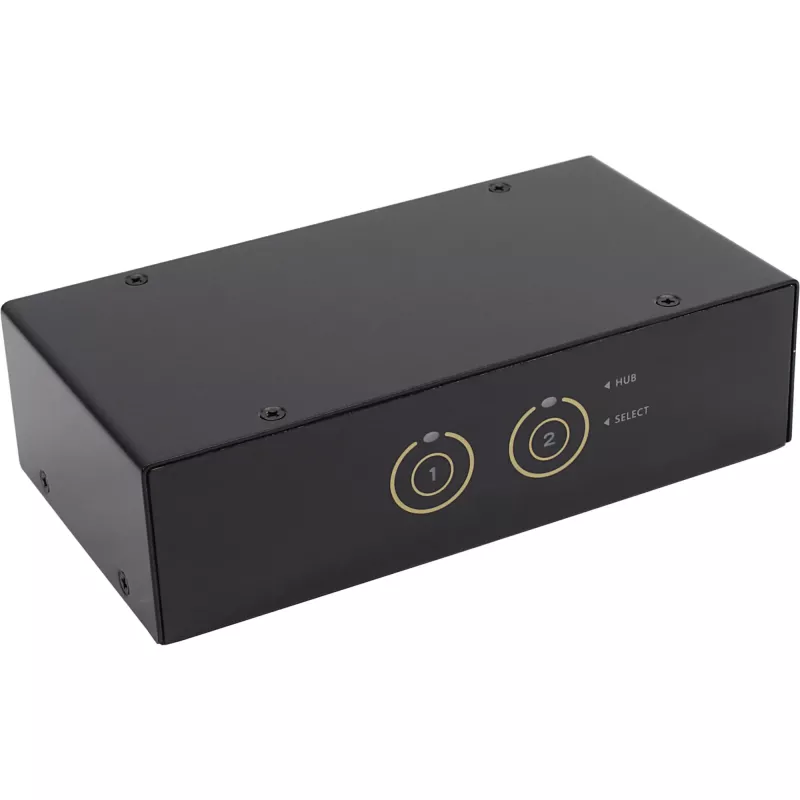

The InLine 2-Port DisplayPort USB 3.0 KVM Switch enables control of two computers using a single keyboard, mouse and DisplayPort monitor. The switch supports DisplayPort video output up to 2560 x 1600 at 60 Hz, includes USB 3.0 device ports for fast data transfer, and comes with KVM cables for straightforward setup. Its compact black housing (139 x 91 x 45 mm) is designed for desktop use and allows users to boot, access and reboot connected systems from one console.

Advantages

This KVM switch uses USB 3.0 ports to provide up to ten times higher transfer rates than USB 2.0, improving performance when transferring large files or rich media. The Smart Touch switching mechanism offers quick, reliable switching between the two connected computers. The device also supports TTU (True Transparent USB) emulation technology to ensure compatibility with advanced keyboards and mice, and integrated audio support adds convenience for multimedia setups.

Suitable for

• Small offices and home workstations that need to control two PCs with one console
• Multimedia work where high-resolution DisplayPort output (2560 x 1600 @ 60 Hz) is required
• Environments requiring fast USB data exchange between computers and external drives or devices

Key specifications

• Brand: InLine
• Model / MPN: 63622I
• EAN: 4043718195893
• Video port type: DisplayPort; max resolution 2560 x 1600 @ 60 Hz
• Keyboard / Mouse ports: USB
• USB device ports: USB 3.0
• Number of computers: 2
• Dimensions: 139 x 91 x 45 mm
• Weight: 0.62 kg
• Colour: Black

How to use

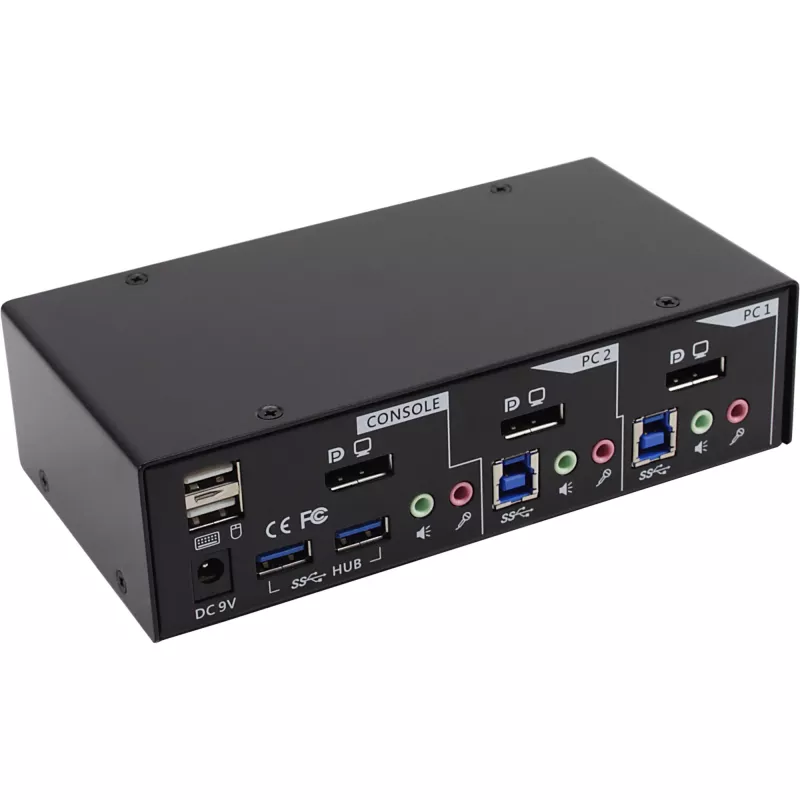

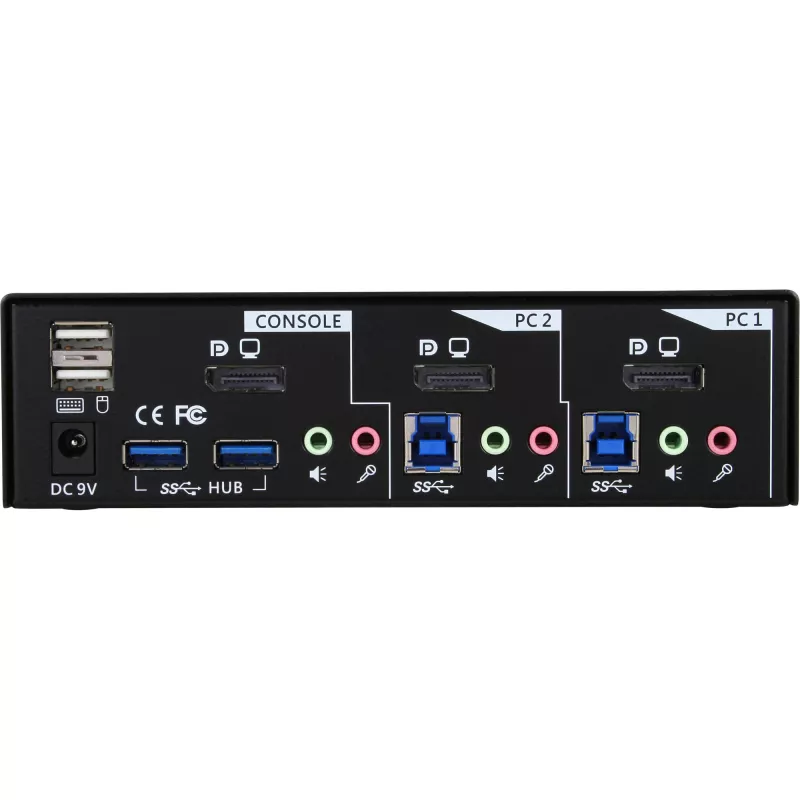

Connect the included KVM cables from each computer to the switch’s DisplayPort, USB keyboard and USB mouse connectors, then attach your monitor, keyboard and mouse to the console ports on the switch. Power on the computers and use the Smart Touch button to switch control between systems. Use the USB 3.0 device ports to connect external storage or peripherals for high-speed data transfer. The TTU emulation helps ensure that advanced keyboards and mice remain fully functional across both computers.

Recommendations

For best video performance, use DisplayPort cables rated for the required resolution and verify monitor settings are configured to accept 2560 x 1600 at 60 Hz. When transferring large files, connect storage devices to the USB 3.0 ports and ensure hosts have USB 3.0 support enabled.
