InLine duplex-asennuskaapeli S/FTP PiMF Cat.7a AWG23 1200MHz, LSOH, 300m

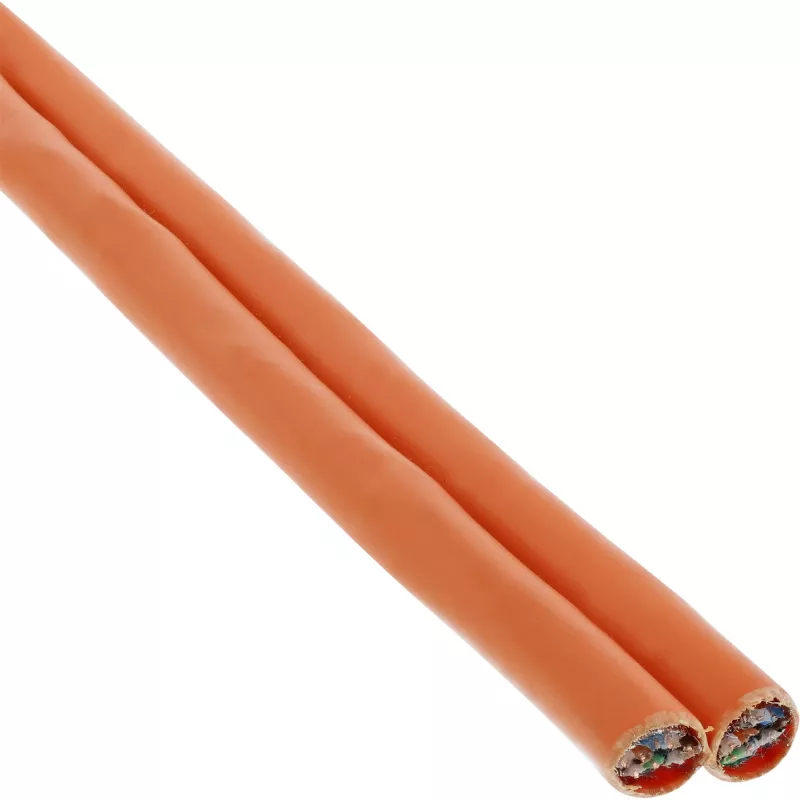

The InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 is a duplex installation cable designed for professional network installations. It supports transmission frequencies up to 1200 MHz, uses full copper conductors and S/FTP (screened foiled twisted pair with overall braid) shielding, and is supplied on drums or in drum boxes depending on bundle length. The cable has an orange LSOH (halogen-free) sheath and meter-printing along the length to simplify installation and identification.

Advantages

The drum box packaging enables easy unwinding and handling on site, reducing the need for additional drum tooling and lowering costs for small-quantity jobs. The packaging is lightweight, stackable, and suitable for transport in construction vehicles or by parcel service. Cardboard protection helps prevent contamination and mechanical damage to the cable during storage and transport.

Suitable for

• Professional structured cabling in data centers and server rooms
• Commercial and office network installations
• High-speed links up to 10 Gbps where Cat.7a performance is required
• Environments requiring halogen-free (LSOH) cabling

Key specifications

• Cable type: Duplex installation cable, Cat.7a S/FTP PiMF
• Conductor: Full copper, AWG23 (2 × 4 × 2 × AWG23/1)
• Frequency: Up to 1200 MHz
• Data rate suitability: Up to 10 Gbps
• Impedance: 100 Ω; DC resistance: max. 87 Ω/km
• Sheath: Halogen-free (LSOH), orange

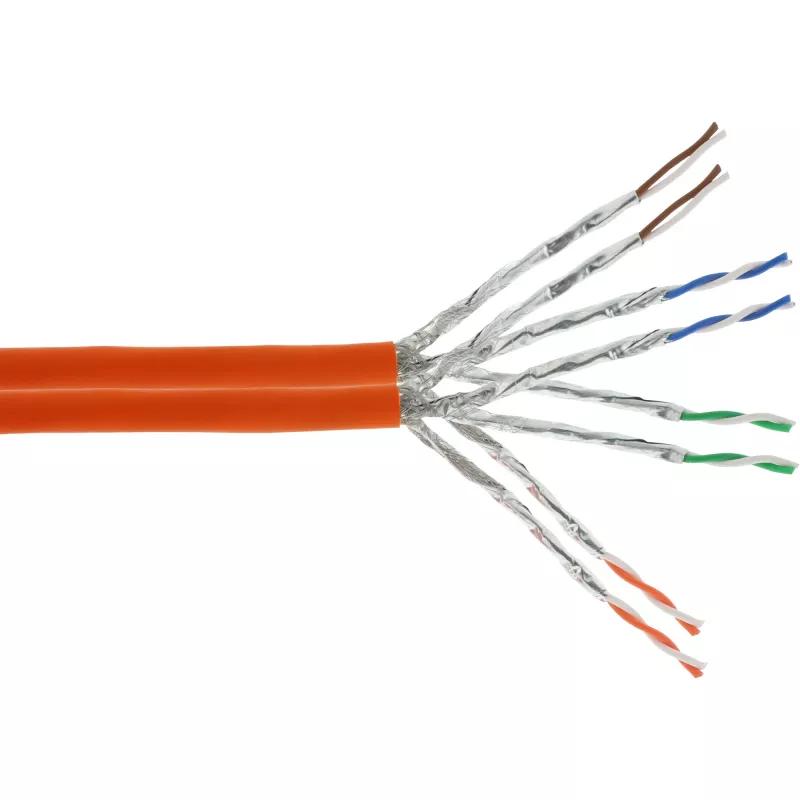

• Shielding: Pairs in metal foil plus overall braid
• Cable diameter: approx. 2 × 8.2 mm
• Temperature range: Installation 0°C to 50°C; Operation -20°C to 60°C
• Reaction to fire: Eca according to EN 50575:2014 / A1:2016
• Marking: Meter-printing on the cable

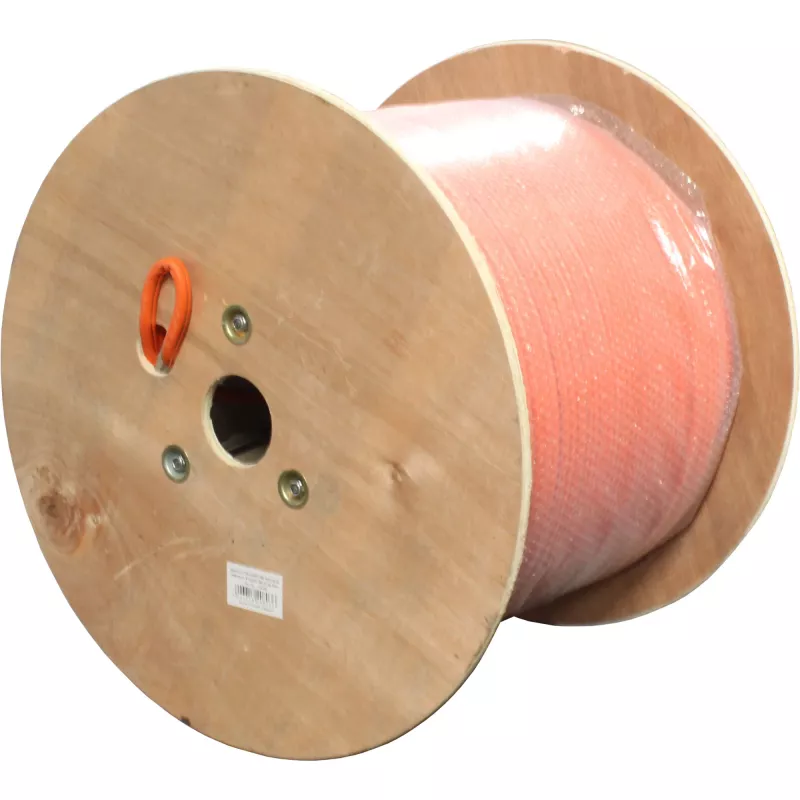

• Packaging: Drum box for 50 m and 100 m bundles; single drum for 300 m and 500 m bundles

How to use

Unwind the cable from the drum or drum box following the meter markings to measure required lengths. Install the cable following standard installation practices for structured cabling: avoid sharp bends, maintain appropriate bend radius, secure the cable to trays or routes without over-tightening, and keep separation from strong electrical sources to minimise interference. Terminate and test using connectors and testing equipment compatible with Cat.7a S/FTP cabling.

Recommendations

For easy onsite handling and reduced waste on small jobs, choose the drum box options (50 m or 100 m). For large installations, order the 300 m or 500 m drum supply. Follow local building codes and fire regulations when routing and fixing LSOH cables.
