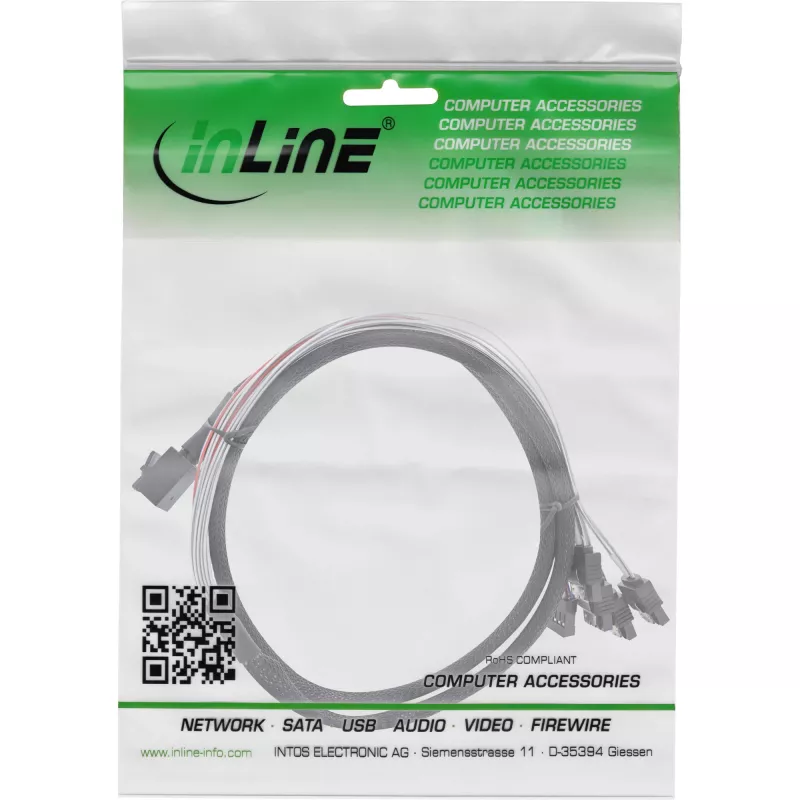

InLine Mini SAS HD -kaapeli SFF-8643 - 4x SATA + sideband 0,5 m

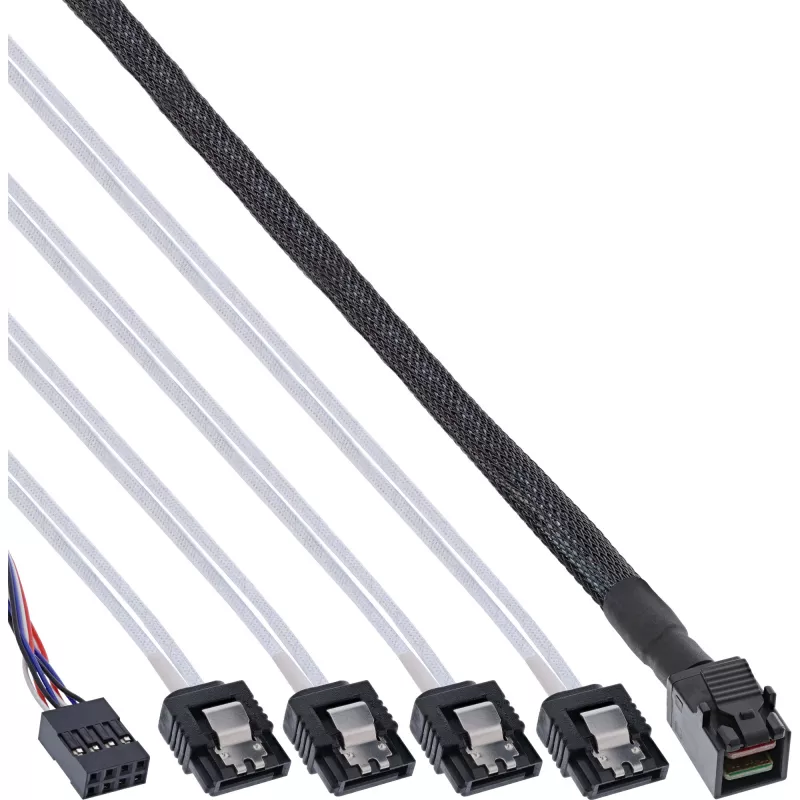

This internal Mini SAS HD cable (SFF-8643 to 4x SATA + Sideband) is a 0.5 m connection cable designed for linking a Mini SAS HD 4i (SFF-8643) interface to up to four SATA devices. It supports sideband signaling for control and status communication and is intended for use where a SAS controller or backplane must connect to multiple SATA hard drives or SSDs.

Advantages

The cable provides a compact internal connection combining one SFF-8643 plug with four SATA plugs, enabling high-speed data transfer in server and storage systems. Its sideband support allows controller-level signaling between devices. The 0.5 m length keeps cable runs tidy inside chassis and reduces signal degradation compared with longer internal cables.

Suitable for

• Connecting a SAS controller with a Mini SAS HD (SFF-8643) port to multiple SATA drives
• Backplane to drive connections inside servers and storage enclosures
• Upgrading or replacing internal cabling in RAID or JBOD systems

Key specifications

• Connector A: Mini SAS HD 4i (SFF-8643)
• Connector B: 4 × SATA
• Sideband: Supported
• Length: 0.5 m
• Brand: InLine
• MPN: 27630A
• EAN: 4043718211791

How to use

Power off the system before installing the cable. Insert the SFF-8643 connector into the SAS controller or backplane Mini SAS HD 4i port and route the cable to the drive bay area. Connect the four SATA connectors to the individual SATA drives, ensuring each plug is fully seated. After connections are secure, power on the system and verify drive detection in firmware or operating system.

Recommendations

Use this internal cable for short internal connections only; avoid excessive bending or kinking. Ensure connectors are aligned when inserting and confirm compatibility of controller and drives with Mini SAS HD to SATA breakout connections.
