InLine PC-tuulettimen Multi Power Port -sovitin Molex 5,25 tuumaa 2x tuuletinliitäntään

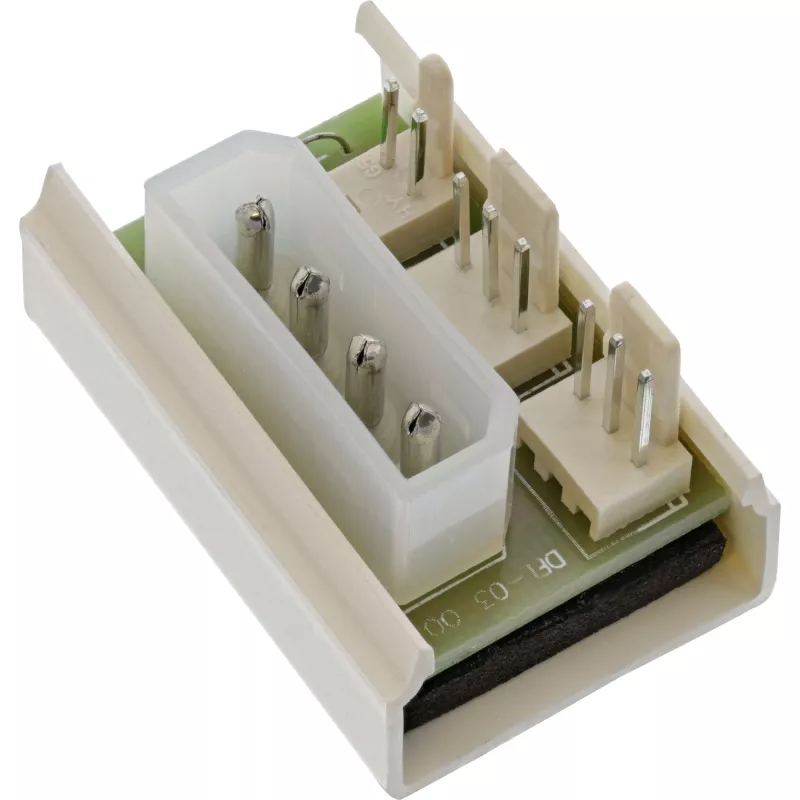

The InLine 33008A fan controller adapter lets you power two 3-pin fans from a single Molex 5.25" (4-pin) power connector. The small adapter board includes an optional LED connection and a self-adhesive backing for simple mounting inside the PC case. Tachometer (RPM) signals from the fans are not forwarded.

Advantages

This compact adapter supports powering two fans from one Molex connector, simplifies installation with a self-adhesive back and standard 3-pin fan plugs, and provides an optional LED connection for status indication. Its small dimensions (approx. 38 x 25 x 18 mm) allow placement in tight spaces inside the chassis.

Suitable for

• Connecting two 3-pin PC fans to a single Molex 5.25" power plug
• Adding an LED indicator alongside fan power
• Mounting inside the computer case where space is limited

Key specifications

• Model: InLine 33008A
• Connector: Molex 5.25" (4-pin) input to two 3-pin fan outputs
• Supports: 2 × 3-pin fans (tachometer not forwarded)
• Additional: LED connection available
• Dimensions: approx. 38 × 25 × 18 mm
• Brand: InLine
• EAN: 4043718082124

How to use

Connect the adapter's Molex plug to an available 5.25" power connector from the power supply. Plug up to two 3-pin fans into the adapter's fan outputs. If desired, connect a compatible LED to the provided LED terminals. Use the self-adhesive backing to secure the board to a suitable flat surface inside the case. Note that fan RPM signals will not be transmitted to the motherboard.

Recommendations

Ensure the combined current draw of both fans does not exceed the power supply line ratings. Place the adapter where it will not obstruct airflow or interfere with moving parts. Verify compatibility of fan connectors before installation.
