InLine PoE+ Gigabit-verkkokeskitin 8 porttia (8x PoE+), 1 Gbit/s, 19" 1U

8-port PoE+ injector hub with up to 30 W power per port (total up to 240 W)
Supports IEEE 802.3af/at for PoE and PoE+ devices such as IP cameras & access points
Wireless design for noiseless operation in a 19" rack (1U)
Triple protection: overcurrent, overvoltage and overheating protection per port
High energy efficiency with over 91% efficiency in operation

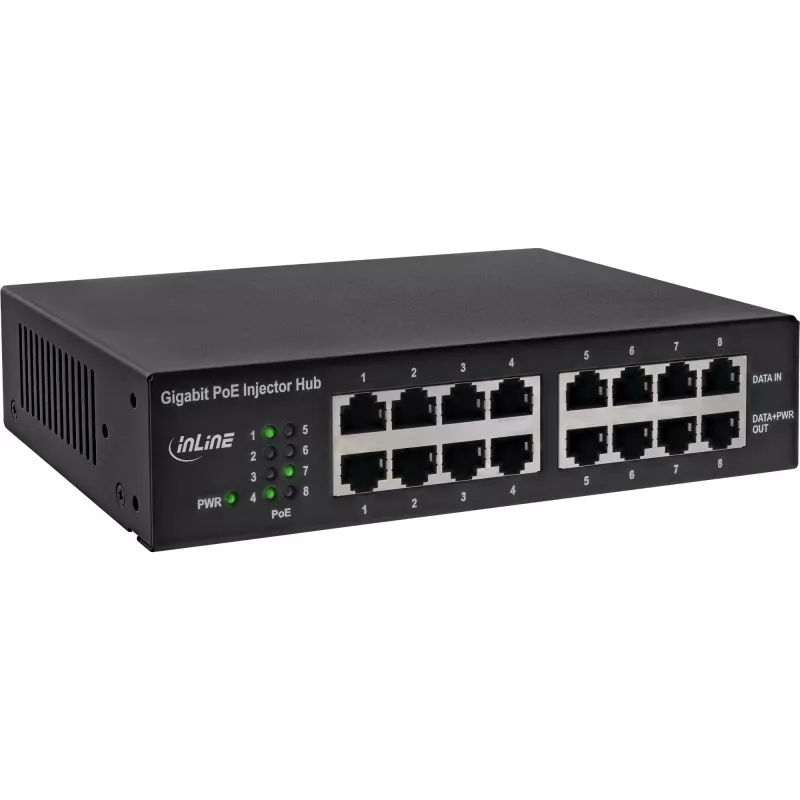

The InLine® PoE+ Gigabit network injector hub is the ideal solution for upgrading existing networks to Power over Ethernet – without having to replace existing switches. The hub offers eight RJ45 ports for data and power supply in accordance with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+), each with up to 30 watts of output power per port. This allows network devices such as IP cameras or WLAN access points to be operated flexibly and independently of a power socket.
With a combined total PoE output of up to 120 watts via the power supply unit or 240 watts via the screw terminal connection block, the injector hub is particularly powerful. The integrated protection function against overcurrent, overvoltage and overheating offers additional safety in professional network operation. Thanks to its fanless design, the device operates silently and is ideal for installation in offices or technical rooms.
The standard-compliant support of 10/100/1000Base-T enables flexible integration into a wide range of network infrastructures. LED indicators provide information on the operating status and active PoE connections at all times.
Technical specifications:

Ports DATA IN: 8x RJ45 10/100/1000Base-T, Auto-MDI/MDI-X
Ports DATA + PWR OUT: 8x RJ45 10/100/1000Base-T, Auto-MDI/MDI-X
PoE type: Endspan
PoE output: 48–56 V DC, max. 30 W per port
Total power: 120 W (240 W via screw terminal connection block)
Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
Voltage input: 100–240 V AC, 47–63 Hz
Output voltage/current: 56 V DC / 2.2 A
Power consumption in idle mode: 0.16 W
Energy efficiency: 91.4%
LED indicators: PWR, PoE (1–8)
Dimensions: 188 x 120 x 44 mm
Weight: approx. 1.521 kg
Operating temperature: 0–40 °C
Storage temperature: -20–70 °C
Humidity: 20–95 %, non-condensing

Scope of delivery:

1x InLine® PoE+ Gigabit network injector hub 8 port
1x power supply
2x operating instructions (German/English)

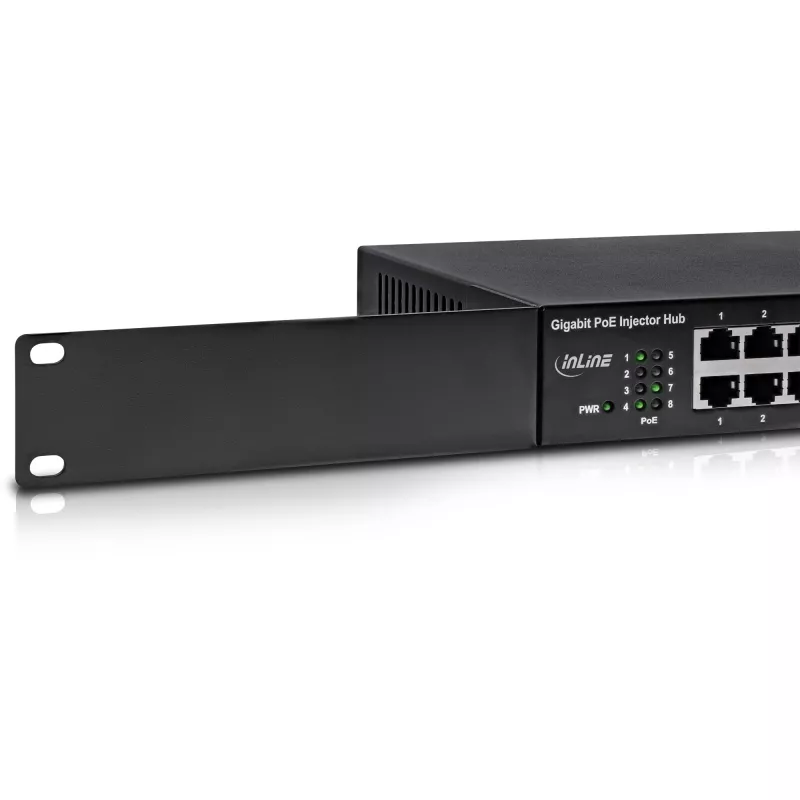

2x 19" mounting bracket
6x screws for mounting bracket
4x rubber feet

InLine PoE+ Gigabit Network Injector Hub 8 Port (8x PoE+), 1Gb/s, 19" 1U. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, LED indicators: PoE, Power. Power over Ethernet (PoE) voltage: 56 V, Power over Ethernet (PoE) power per port: 30 W, Total Power over Ethernet (PoE) budget: 120 W. Size (imperial): 48.3 cm (19"), Width: 120 mm, Depth: 188 mm. Number of products included: 1 pc(s)

How to use

Connect your network switch or router to the DATA IN RJ45 ports and connect PoE devices to the DATA + PWR OUT RJ45 ports using Cat5/5e/6 cables. Provide power with the supplied 56 V DC adapter or connect a suitable DC supply to the power terminal block if higher total PoE power is required. Verify LED indicators (PWR and PoE 1–8) to confirm power and port status. Use the included 19" mounting brackets or rubber feet for rack or desktop installation.

Recommendations

To ensure stable operation, use Cat5e or Cat6 cables for Gigabit links, keep the ambient temperature within the specified range (0–40 °C), and ensure the total connected PoE load does not exceed the available budget (120 W or up to 240 W when using the power terminal block).
