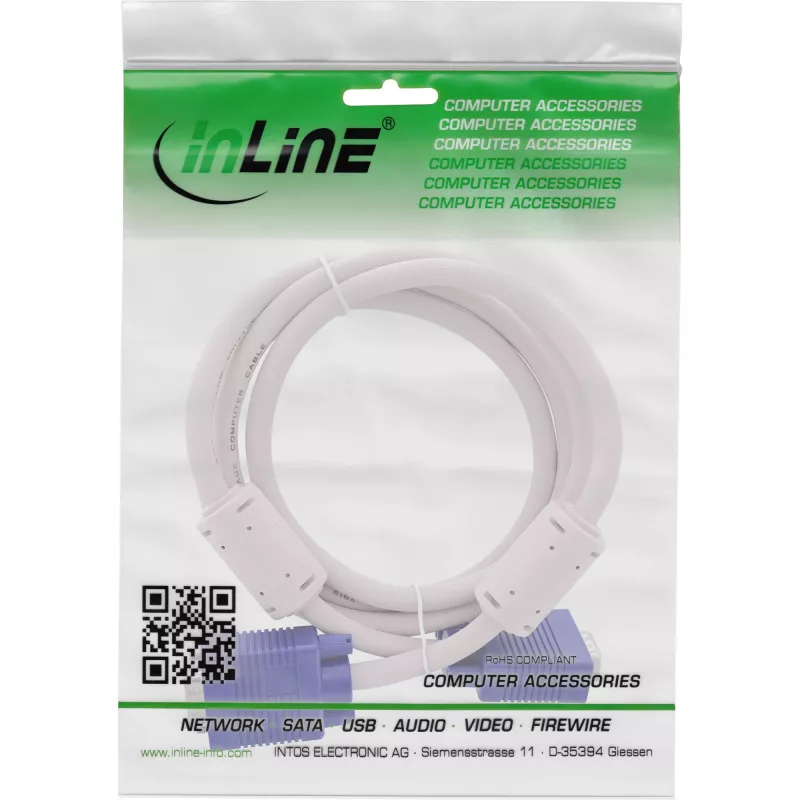

InLine S-VGA-kaapeli 15 HD harmaa pistoke/pistoke 3 m

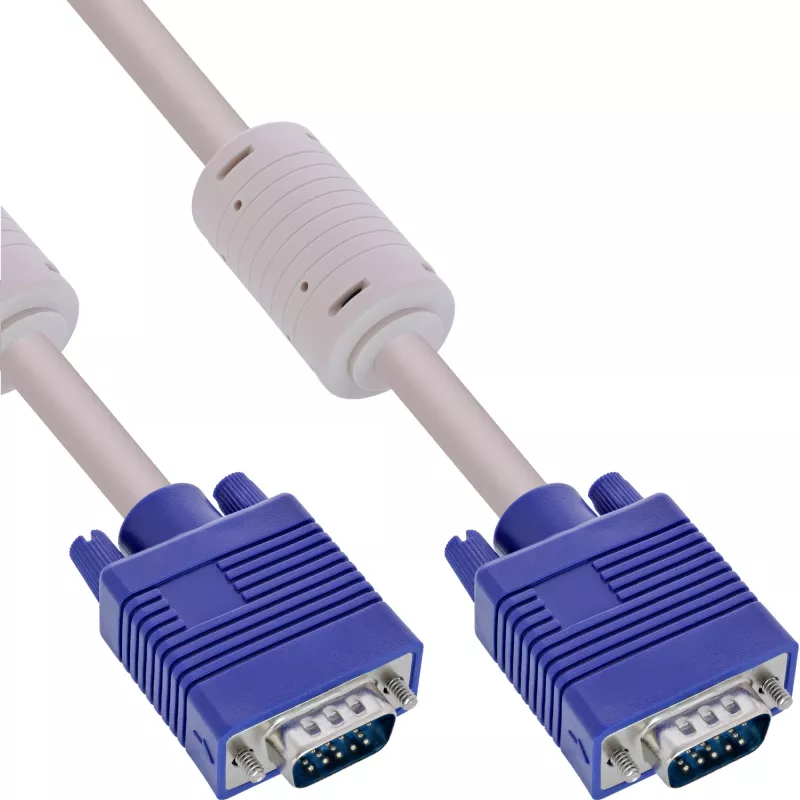

The InLine S-VGA Cable 15 HD (3 m) is a double-shielded video cable designed for reliable transmission of analog VGA signals between devices with 15-pin VGA ports. The cable contains three single-shielded coaxial cores for RGB and seven additional data lines, and is fitted with 15-pin male-to-male SVGA connectors with 1:1 wiring (pin 9 not connected). Connector shells are blue following the PC99 colouring standard to simplify port identification.

Advantages

Double shielding and individual coaxial conductors for the RGB channels reduce interference and help maintain signal integrity over the 3 m length. Gold-plated contacts provide improved contact reliability and resistance to corrosion. A 1:1 wired 15-pin connector ensures compatibility with standard VGA/SVGA ports.

Suitable for

• Connecting desktop PCs to monitors
• Connecting laptops or media players to projectors with VGA input
• Extending VGA runs within workstations or meeting rooms

Key specifications

• Connector type: 15-pin VGA (male) to 15-pin VGA (male), 1:1 wiring (pin 9 not connected)
• Cable length: 3 m
• Cable construction: 3 single-shielded coaxial lines (RGB) + 7 data lines; overall double shielding
• Contact plating: gold-plated contacts
• Colour: beige housing with blue connector shells (PC99 standard)

How to use

Align the 15-pin connectors with the corresponding VGA ports on your devices and insert them gently. Secure the connectors by tightening the thumb screws to ensure a stable connection. Use the cable to transmit analog video signals; no additional drivers or power are required. If your device uses pin 9 for ID or power, verify compatibility because pin 9 is not connected on this cable.

Recommendations

For optimal signal quality, avoid running the VGA cable parallel to power cables and keep cable length appropriate for resolution requirements—shorter runs help preserve higher-resolution signals. Store the cable without tight bends and avoid sharp kinks to prolong lifespan.
