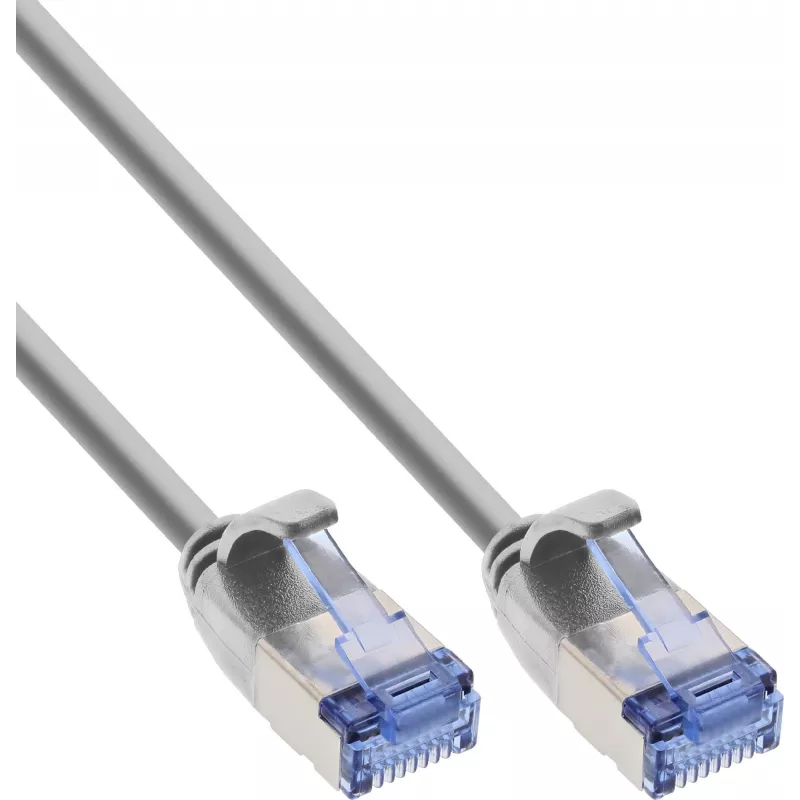

InLine® Slim U/FTP PiMf Cat.6A -verkkokaapeli, harmaa, 1,5 m

Experience 10 Gigabit Ethernet with this ultra-slim Cat.6A patch cable, engineered with U/FTP PiMf shielding and a 500 MHz bandwidth. The 1.5 m grey cable features gold-plated RJ45 connectors and LSZH jacket for high-density, high-speed networking.

Overview

The InLine® Slim Patch Cable delivers reliable 10GBASE-T performance in a space-saving design. Its 26 AWG stranded copper conductors and PiMf shielding (each pair wrapped in metal foil) ensure excellent signal integrity and crosstalk resistance, meeting Cat.6A standards up to 500 MHz. The snagless molded boots protect the locking tabs during installation, while the LSZH jacket provides safety in case of fire. Ideal for data centers, office networks, and home setups where space is at a premium.

What stands out

• Ultra-slim profile: Approximately 3.8 mm diameter saves space in high-density patch panels and cable managers.
• U/FTP PiMf shielding: Each twisted pair is individually foil-wrapped, reducing alien crosstalk for stable 10G performance.
• Gold-plated connectors: 50 µm gold plating on RJ45 contacts ensures corrosion resistance and reliable connectivity.
• LSZH jacket: Low Smoke Zero Halogen material emits minimal toxic fumes and smoke in case of fire.
• Snagless molded boots: Protect the connector clips from damage during frequent plugging and unplugging.

Technical details

• Category: Cat.6A (ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-10)
• Shielding: U/FTP (Unshielded with Foiled Twisted Pairs), PiMf construction
• Bandwidth: 500 MHz
• Data rate: 10 Gbps (10GBASE-T)
• Length: 1.5 m
• Conductor: Stranded copper, AWG 26/7
• Connector type: RJ45 male to RJ45 male, 8P8C
• Connector plating: Gold (50 µm)
• Wiring: TIA/EIA 568B
• Jacket: LSZH (Low Smoke Zero Halogen)
• Cable diameter: Approx. 3.8 mm
• Boot type: Snagless, molded

Our verdict

A top-tier slim Cat.6A cable that combines high-speed 10G performance with a space-saving design and safety-focused LSZH jacket. Perfect for dense network environments.
