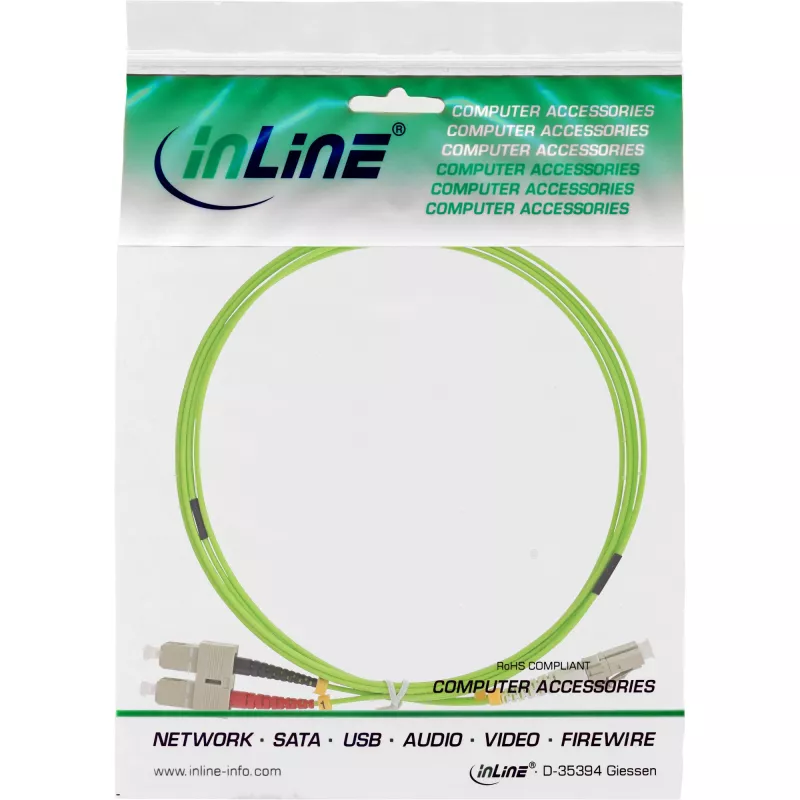

InLine kuitu-duplexkaapeli LC/SC 50/125µm OM5 2 m

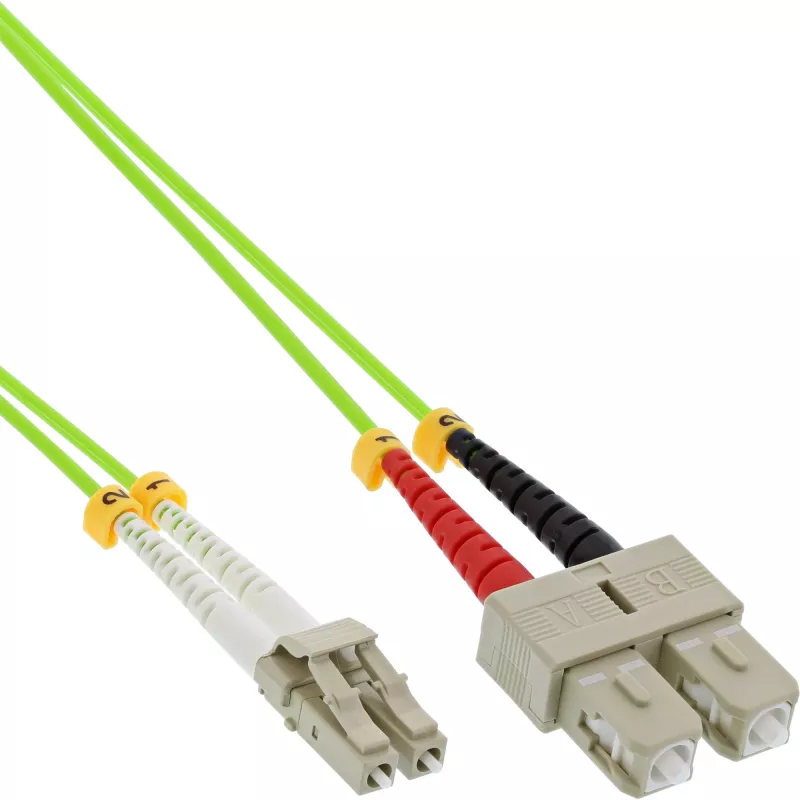

The InLine Fiber Optical Duplex Cable LC/SC 50/125µm OM5 2m is a duplex multimode fiber patch cable designed for short- to medium-range high-speed data links. It pairs an LC connector on one end with an SC connector on the other, uses 50/125µm core/cladding multimode fiber optimized to OM5 specifications, and provides a 2 meter length suitable for rack-to-rack or equipment-to-switch connections. The cable supports simultaneous transmit and receive channels over separate fibers for full-duplex communication and is intended for structured cabling in data centers, telecommunication rooms, and network equipment interconnects.

Advantages

The OM5 multimode fiber construction enables improved modal bandwidth for wideband applications and is backward compatible with OM3/OM4 infrastructure. The LC and SC connector combination offers flexibility when connecting devices with different port types while maintaining low insertion loss and return loss typical of factory-terminated fiber assemblies. The 2 meter length reduces excess slack in dense cabling environments and the duplex format keeps transmit and receive channels organized.

Suitable for

• Patch connections between switches, transceivers, and servers
• Data center horizontal and rack-level interconnects
• Telecommunications equipment links requiring LC-to-SC interfaces
• Short-reach multimode applications and lab test setups

Key specifications

• Fiber type: Multimode OM5
• Core/cladding diameter: 50/125 µm
• Connector A: LC duplex
• Connector B: SC duplex
• Length: 2 m
• Mode: Duplex (two fibers for Tx/Rx)
• Typical use: Multimode multimodal high-speed links

How to use

Confirm that both connected devices support multimode OM5 fiber and that connector types (LC and SC) match available ports. Remove protective dust caps from connectors, align the keying and push until the connector latches, and verify a secure mechanical fit. For transceivers, insert the LC end into the SFP+ or QSFP+ module and the SC end into the switch or patch panel port as required. After installation, label both ends if necessary and perform an optical link test or continuity check to confirm acceptable insertion loss and channel continuity.

Recommendations

Handle the fiber cable by the connector boot or outer jacket, avoid tight bends below the specified minimum bend radius, and keep connectors clean using appropriate fiber cleaning tools. Store spare cable coiled loosely without sharp kinks and replace any cable with visible damage to the jacket or connectors.
