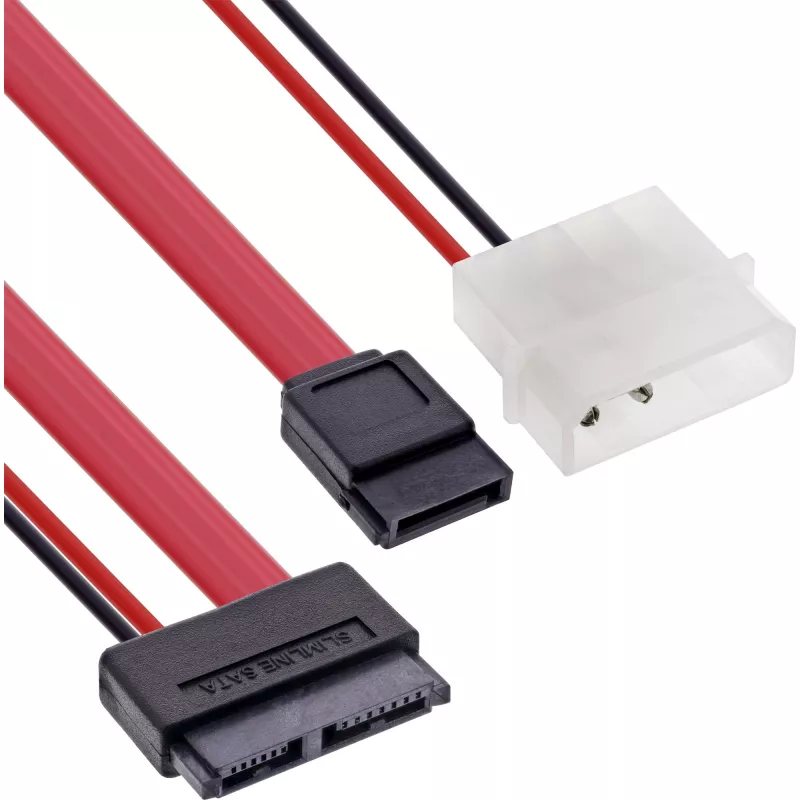

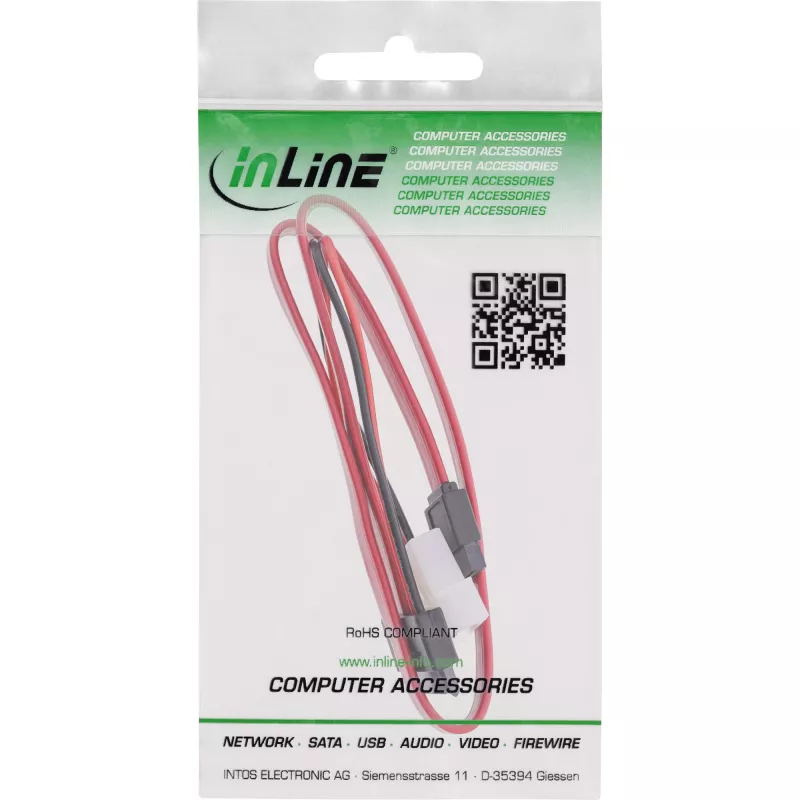

InLine Slimline SATA -kaapeli, ohut SATA 13-pin (7+6) kaapelipuoli SATA+virta, 0,4 m

Compatible slimline connection:The cable reliably connects slimline SATA 7+6-pin optical drives to a SATA data port and separate power connection.
Precise connector design:The 13-pin slimline SATA connector ensures a secure fit and stable connection in the system.
Separate cable routing:The separation of data and power cables allows for flexible and clear cable routing in the housing.
Optimized for internal installations:With approx. 0.4 m data cable and approx. 0.15 m power cable, the product is particularly suitable for compact system setups.
Reliable power supply for optical drives:The 2-pin power cable allows direct power supply for slimline optical drives.

The InLine® Slimline SATA cable is a functional connection solution for optical drives with a slimline SATA connection. The 13-pin Slimline SATA connector combines data and power signals and enables the integration of corresponding drives into systems with standard SATA interfaces. Data is transferred via a SATA 7-pin connector, while the separate 2-pin power cable supplies the drive with power.
The separate cable routing allows the cables to be positioned flexibly in the housing, which supports structured installation. The cable lengths of approx. 0.4 m for the data line and approx. 0.15 m for the power line are designed for short internal connections and reduce unnecessary cable lengths. The cable is suitable for use in system configurations where slimline optical drives need to be reliably connected to standard SATA ports.
The robust design of the connectors supports stable installation and secure signal transmission. This makes the cable suitable for applications that require compact and clear internal cabling. It complements existing systems with an efficient connection solution specifically for slimline optical drives.

Connection type: Slimline SATA 7+6 to SATA 7-pin + 2-pin power
Area of application: Slimline optical drives

InLine Slimline SATA cable, Slim SATA 13pin (7+6) cab. side to SATA+power, 0.4m. Cable length: 0.4 m, Cable type: SATA I, Connector 2: SATA 7-pin. Package width: 85 mm, Package depth: 130 mm, Package height: 25 mm

How to use

Power off the computer and unplug it from the mains before installing the cable. Insert the 13-pin Slimline connector into the Slim SATA optical drive’s socket, ensuring correct orientation, and connect the 7-pin SATA end to an available SATA port on the motherboard. If required, ensure the drive receives power via the combined power contact or separate power connector according to your drive and chassis design. After connections are secure, restore power and verify drive detection in the BIOS or operating system.

Recommendations

Use this cable in systems that require a Slimline SATA connection and avoid excessive bending near the connectors. For reliable operation, keep cable runs short and secure loose cables to prevent strain on the connectors.
