InLine SmartHome IR-kaukosäädin keskus valkoinen

Central WiFi IR control for existing devices:The Remote Control Centre enables the integration of classic IR-controlled devices into modern smart home environments via 2.4 GHz WiFi in accordance with IEEE802.11b/g/n.
DIY learning mode for maximum compatibility:Almost any device with an IR remote control can be programmed. An IR frequency range of 38-56kHz is supported.
App and voice control:Control is via the Smart Life app and compatible voice assistant systems such as Alexa or Google Home.
Reliable signal transmission:The IR range is up to 7 metres. The WiFi range is up to 45 metres, depending on the building structure.
Compact design and easy installation:Measuring 60 x 20 mm (Ø x H), the device can be placed inconspicuously. Power is supplied via micro USB with a standby consumption of 70 mA.

The InLine® SmartHome IR Remote Control Centre enables intelligent control of classic infrared devices via a WiFi network. Existing devices such as TVs, hi-fi systems, receivers or air conditioning systems can be integrated into modern smart home structures without replacement.
Integration into the home network via 2.4 GHz WiFi in accordance with IEEE802.11b/g/n makes setup easy using the Smart Life app. The integrated DIY learning mode allows almost all IR remote controls in the 38-56 kHz frequency range to be programmed. This means that older devices can continue to be used and controlled smartly at the same time.
The IR range is up to 7 m. For optimal signal distribution, a slightly elevated position in the room is recommended. The WiFi range is up to 45 m, depending on local conditions.

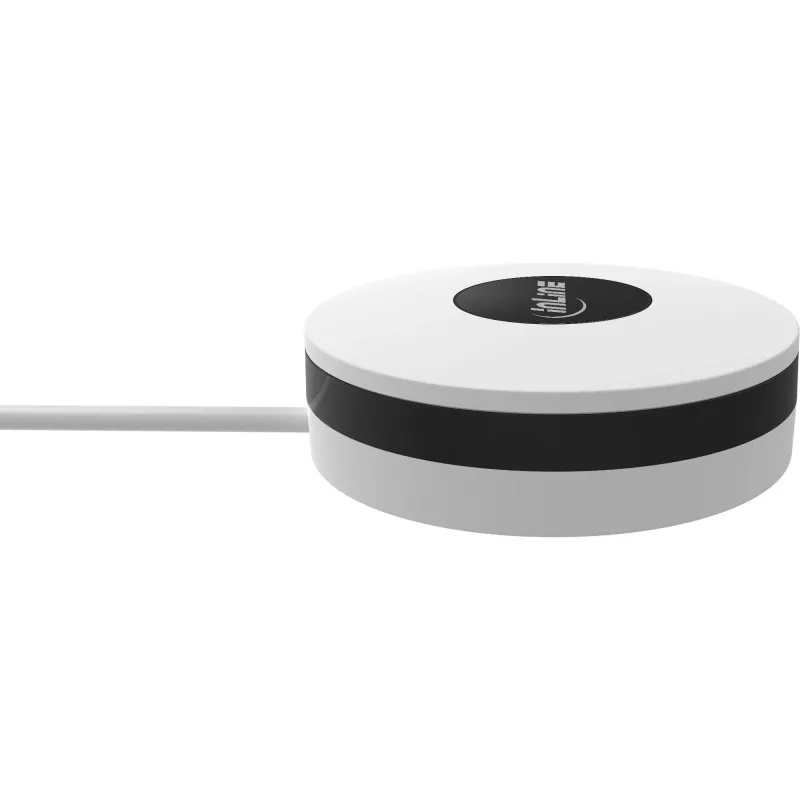

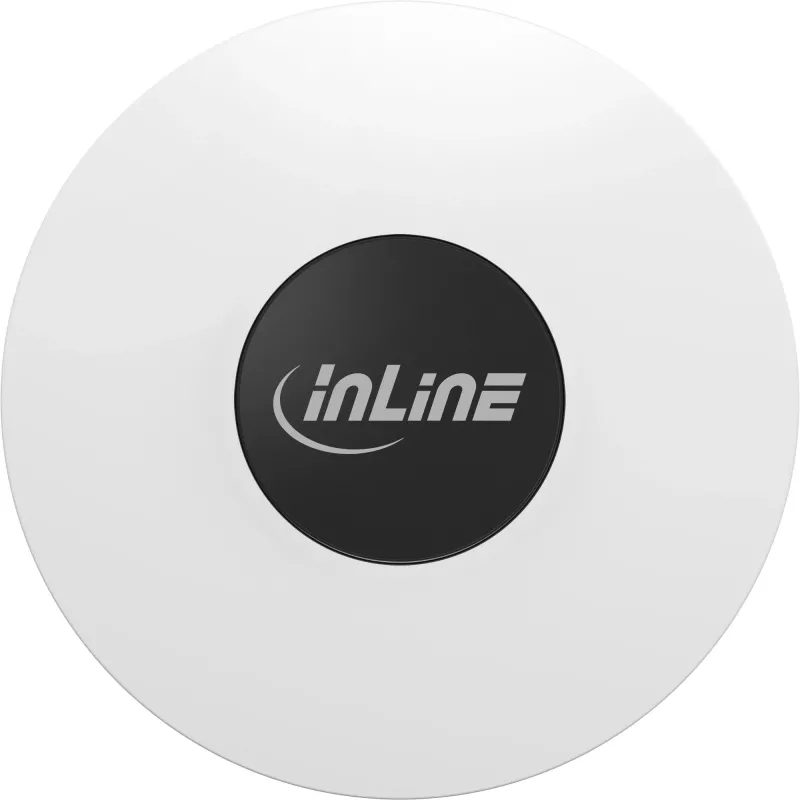

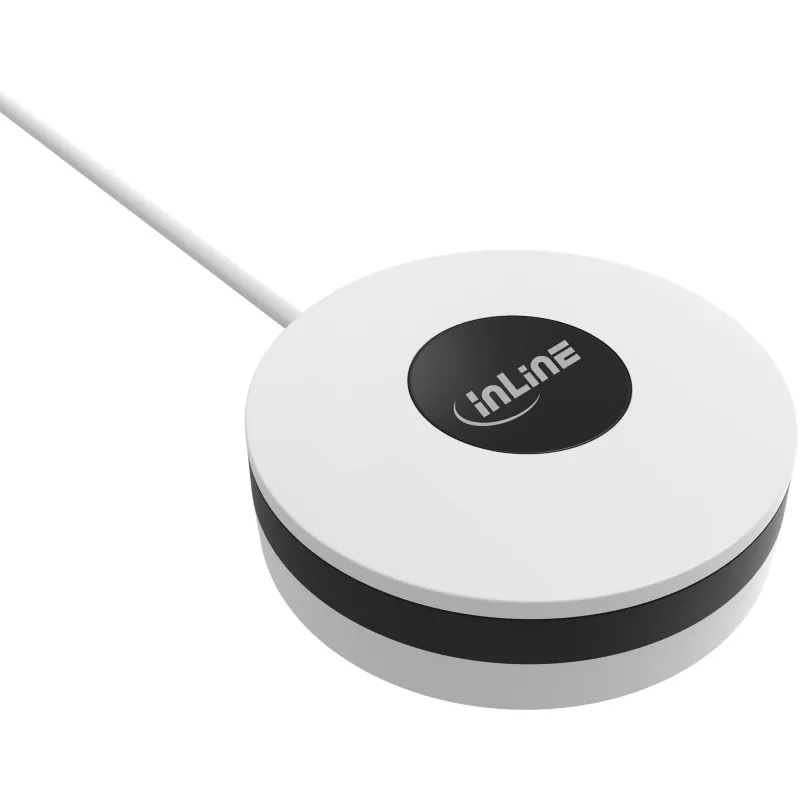

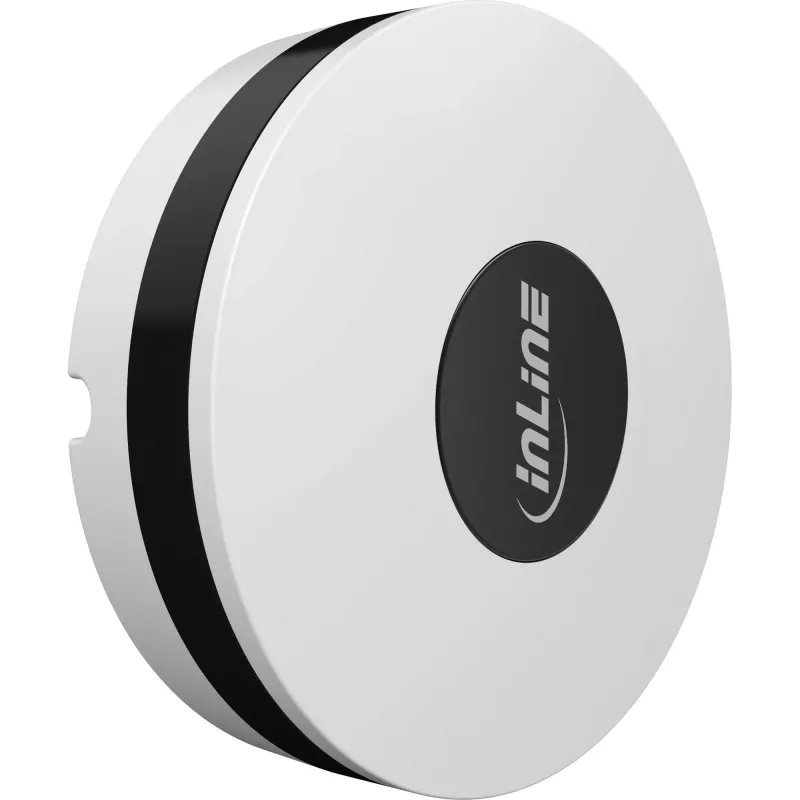

With a diameter of 60 mm and a height of 20 mm, the device is compact in size. Power is supplied via micro USB. Standby consumption is 70mA.
Thanks to compatibility with voice assistant systems such as Alexa or Google Home, IR devices can also be controlled by voice command.

WiFi frequency: 2.4GHz
Protocol: IEEE802.11b/g/n
WiFi range: up to 45m
IR range: up to 7 m
IR frequency: 38–56 kHz
Standby power consumption: 70 mA
Power supply: micro USB
Dimensions: 60 x 20 mm (Ø x H)
Scope of delivery: Remote Control Centre, 1.2 m micro USB cable, instructions
Compatible with: Smart Life app, Google Home, Amazon Alexa

InLine SmartHome IR Remote Control Center white. Remote control proper use: Smart home device, Interface: IR Wireless/Wi-Fi. Maximum range: 45 m

How to use

Connect the Remote Control Center to your home Wi‑Fi network and complete the initial setup in the Smart Life app. Use the app to select existing device profiles or activate the do‑it‑yourself learning mode to record IR commands from the original remote. Position the Remote Control Center so that the target device is within the recommended 10 cm to 7 m distance and ensure a clear line of sight for infrared signals. Once configured, control devices locally or remotely through the app.

Recommendations

Place the Remote Control Center on a slightly elevated surface and avoid obstructions between the unit and the target device to maximise IR reception. Use the learning mode for older or non‑standard remotes and verify signal reception during setup.
