InLine USB-näyttökaapeli, USB-C uros HDMI uros, 3 m

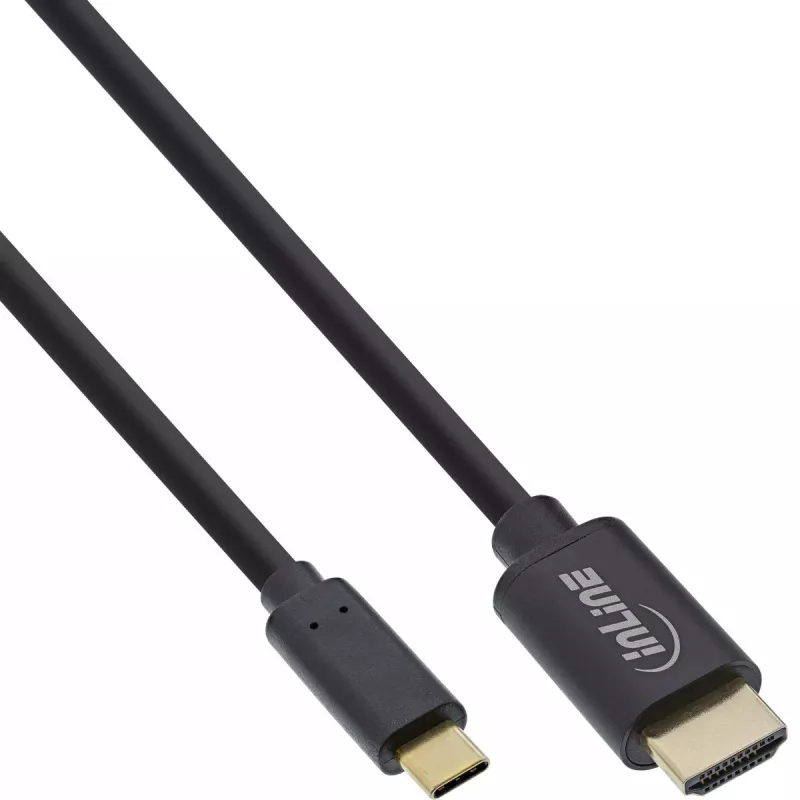

The InLine USB display cable USB-C male to HDMI male 3m connects computers and mobile devices with a USB Type-C port that supports DisplayPort Alternate Mode to HDMI monitors and TVs. The 3 m black cable has a USB Type-C plug on one end and an HDMI A plug on the other, enabling transmission of video and audio signals without an external power supply.

Advantages

The cable features a high-quality black anodised aluminium housing with gold-plated contacts and uses the LT8711EH-C chipset. It supports resolutions up to 3,840 x 2,160 at 60 Hz with RGB and YCbCr 4:4:4, 3D formats, and is compatible with HDCP 2.2 and 1.4 (downwards compatible). It is compatible with USB 3.1, VESA DisplayPort 1.2 and HDMI 2.0, and also supports computers with Thunderbolt 3. The connection is plug & play and does not require an external power supply.

Suitable for

• Connecting laptops, tablets or smartphones with USB-C (DisplayPort Alt Mode) to HDMI monitors or TVs
• Presentations, video playback and desktop extension at home or in the office
• Use with Thunderbolt 3–equipped computers

Key specifications

• Connector 1: USB Type-C (male)
• Connector 2: HDMI A (male)
• Cable length: 3 m
• Colour: Black
• Max. resolution: 3840 x 2160 @ 60 Hz (RGB & YCbCr 4:4:4)
• Standards: HDMI 2.0, VESA DisplayPort 1.2, USB 3.1 compatible
• HDCP: 2.2 and 1.4 compatible
• Chipset: LT8711EH-C
• Power: USB powered, no external supply required

How to use

Plug the USB-C connector into the device's USB Type-C port that supports DisplayPort Alternate Mode (or into a Thunderbolt 3 port). Connect the HDMI A plug to the monitor or TV HDMI input. The cable transmits both video and audio; the connected display should be detected automatically. If necessary, select the correct input on the monitor or adjust display settings in the operating system.

Recommendations

Ensure the source device's USB-C port supports DisplayPort Alternate Mode (often indicated by a DP logo next to the port). For best results use HDMI 2.0–capable displays and set the output resolution and refresh rate in the system to match the monitor’s supported modes.
