Intellinet 19 tuuman seinäasennus-verkkokaappi, Basic Line, 15U, 560 mm syvyys, musta RAL 9005 (716772)

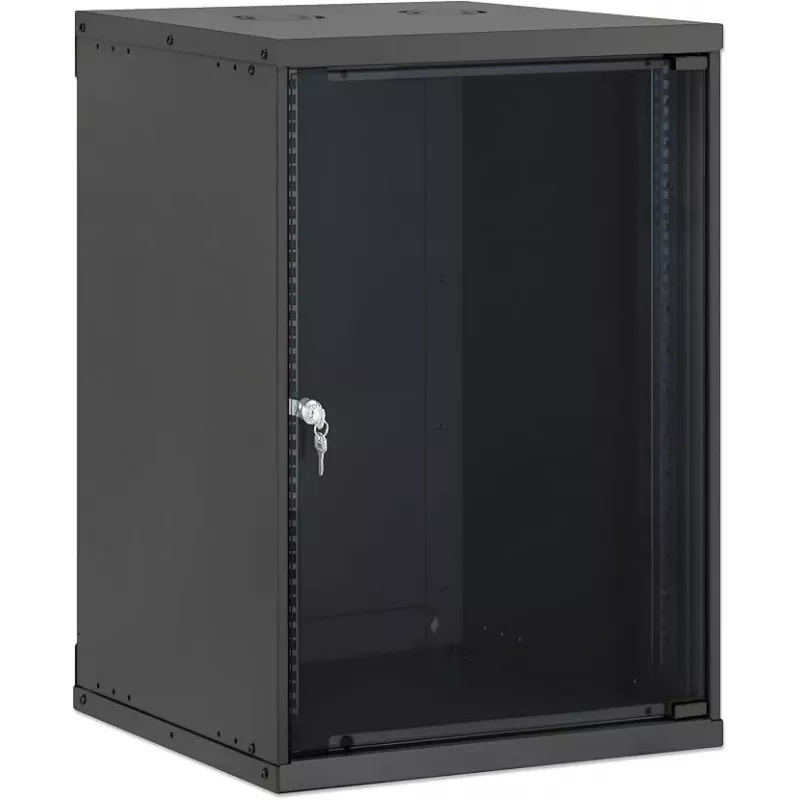

This Intellinet 15U wall-mount cabinet is a practical solution for organizing network equipment in offices, server rooms, or retail spaces where floor space is limited. It can be mounted on a wall or used freestanding with optional castors, offering flexibility for different installation needs. The cabinet arrives flat-packed for easy transport and is assembled on site.

Key specifications

• Rack standard: 19-inch
• Rack units: 15U
• External depth: 560 mm
• Colour: Black (RAL 9005)
• Mounting type: Wall-mountable or freestanding
• Assembly: Flatpack (unassembled)
• Front door: Tempered glass, lockable
• Side panels: Removable
• Material: Steel
• Cable entry: Top and bottom
• Ventilation: Passive (optional fan unit support)
• Compatibility: EIA-310-D, IEC 60297-2, DIN 41494
• Adjustable mounting rails: Yes
• Door opening angle: 180 degrees

Why choose it

The Basic Line series offers a cost-effective yet robust enclosure for standard 19-inch equipment. The tempered glass front door provides visibility of status LEDs while keeping equipment secure with a lock. Removable side panels allow easy access during installation and maintenance. Passive ventilation is sufficient for many setups, and the cabinet can be upgraded with fan units if needed.

Ideal use cases

• Small to medium business network installations
• Wall-mounted patch panels and switches
• Freestanding use in back offices or utility rooms
• Secure housing for sensitive network devices

Good to know

The cabinet is finished in black RAL 9005, a standard colour that blends into most environments. It is compatible with common 19-inch rack standards, ensuring a wide range of equipment fits. Optional castors (not included) can be added for mobility when used freestanding.
