Intellinet Ultra Long Range Outdoor Fast Ethernet PoE+ -jatkosarja 1000 m 95 W IP67

Ultra Long Distance Power over Ethernet Extension / Repeater / Amplifier for a PoE range up to 1,000 m (3,280 ft.) - even in harsh outdoor conditions
The Intellinet Network Solutions Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit adds up to 1,000 m (3,280 ft.) to the connection distance from a PoE source to an output device via Cat5e or Cat6 cable. It has an output power rating up to 30 watts, which is enough for many power-hungry PoE devices. Its high range and weatherproof housing is especially useful for outdoor IP surveillance camera deployments. This PoE repeater delivers up to 30 W at 100 Mbps over 300 m (984 ft.) or up to 15.4 W at 10 Mbps over 800 m (2625 ft.).

Designed for Outdoor Use
This PoE+ extender offers the right power and data connector for longer-distance applications and suits a wide variety of environments. Its weatherproof IP67 (waterproof and dustproof) rating and a wide operating temperature range of -10 - 55°C (14 - 131°F) make it able to withstand harsh outdoor conditions.

Power over Ethernet 802.3bt-compliant Input, 802.3at/af-compliant Output
Supporting the IEEE 802.3bt protocol with input power up to 95 W, this PoE+ Extender Kit provides up to 30 watts to a connected 802.3at-compliant device or 15 W to an 802.3af-compliant device, along with data up to Fast Ethernet speeds.

Reduced Wiring Costs
This PoE+ Extender helps avoid the expense of running AC power lines to a wireless access point, network camera or IP phone. Simply connect the extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.

Safe Protection for your Expensive Network Equipment
The auto-sensing technology of this high-power PoE extender ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages.

Simple Installation with Cascading Power

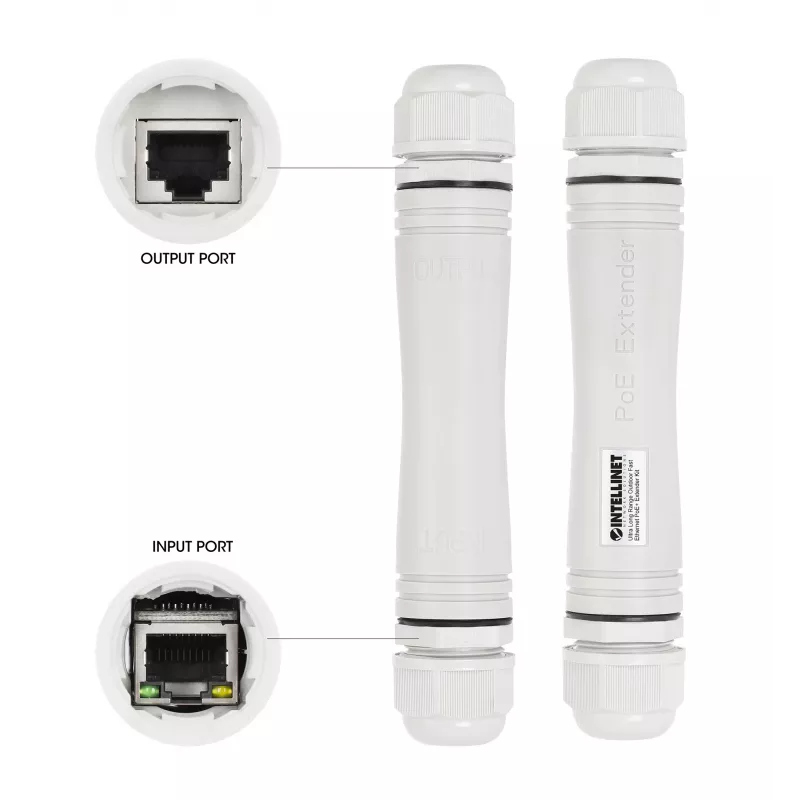

This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its PoE In port to your PoE injector or PoE switch and to connect the PoE Out port to the PoE device you want to connect (e.g., a VoIP phone or a PoE network camera). The kit includes two modules that always need to be used together for maximum distance capabilities.

Intellinet Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit Extends PoE up to 1000 m (3280 ft.), One PD Port up to 95 W, IEEE 802.3bt (4PPoE) Compatible, IP67 Waterproof and Dustproof, Set of Two Modules, Plastic, Gray. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100. Product colour: White, Maximum operating distance: 1000 m, Power protection features: Over voltage, Overload, Short circuit. Output power: 30 W, Power consumption (max): 0.7 W, Power consumption (typical): 0.4 W. Compliance certificates: CE, RoHS, UL. Width: 29 mm, Depth: 157 mm, Height: 29 mm

How to use

Install the two included modules in-line between a PoE source (PoE switch or injector) and the powered device using Cat5e or Cat6 cable. Connect the PoE In port on the first module to your PoE source and the PoE Out port on the second module to the PoE device. Ensure proper outdoor mounting and sealing of cable entries to maintain IP67 protection. Verify that the PoE source can supply sufficient input power (up to 95 W) for the required output at the remote device.

Recommendations

Use quality Cat5e or Cat6 cable and follow local grounding and installation practices. For maximum power delivery and distance, verify compatibility of the powered device with 802.3at/af standards and ensure the PoE injector or switch supports 802.3bt input power profiles.
