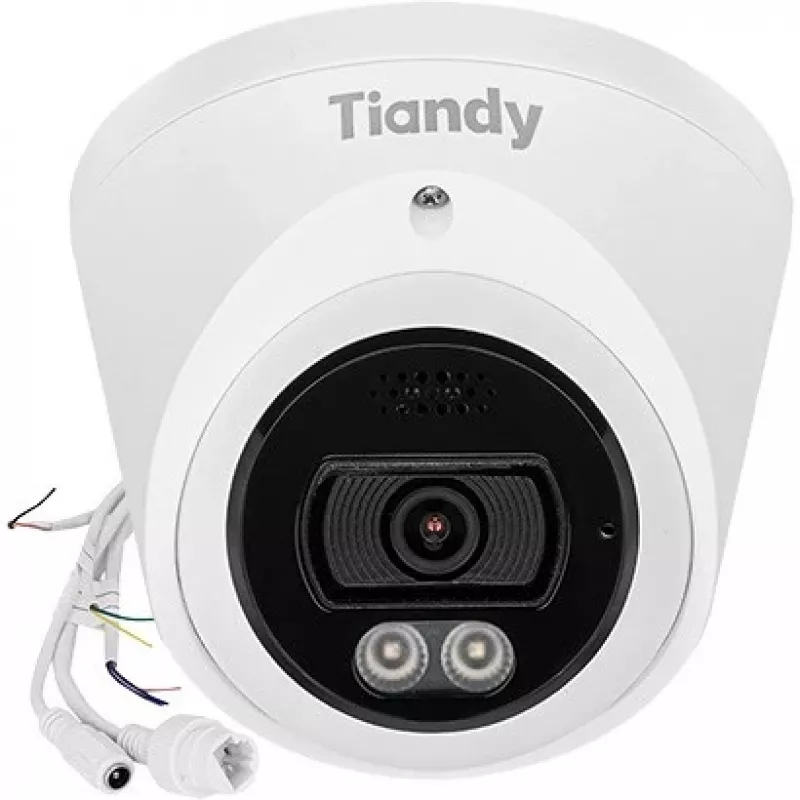

IP-kamera TC-C35XQ SPEC:I3W/E/Y/2.8MM/V4.2

The TC-C35XQ SPEC:I3W/E/Y/2.8MM/V4.2 is a high-performance mini dome IP camera designed for professional indoor and outdoor surveillance. Featuring a 3 Megapixel resolution and 2.8mm fixed lens, it delivers crisp, detailed images with a wide 100.4° horizontal field of view. With IP67 weatherproof and IK10 vandal-resistant construction, this camera is built to withstand harsh environments. True 120dB WDR and 3D DNR ensure clear footage even in challenging lighting conditions. Power over Ethernet (PoE) simplifies installation, while the built-in microphone and MicroSD card slot (up to 512GB) provide flexible recording options.

Advantages

Exceptional image quality with 3MP resolution and 120dB True WDR for balanced exposure in high-contrast scenes. Robust IP67 and IK10 ratings guarantee durability against dust, water, and impact. Easy installation with PoE support reduces cabling needs. Advanced H.265 compression saves bandwidth and storage without compromising quality.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and industrial facilities
• Parking lots and outdoor perimeters
• Schools and public institutions

Key specifications

• Resolution: 3 Megapixel (2304x1296)
• Sensor: 1/2.8" Progressive Scan CMOS
• Lens: 2.8mm Fixed, F2.0
• Field of View: H: 100.4°, V: 54.7°, D: 119.3°
• IR Range: Up to 30m
• Video Compression: H.265/H.264/MJPEG
• WDR: 120dB True WDR
• Noise Reduction: 3D DNR
• Minimum Illumination: Color 0.01 Lux, B/W 0 Lux with IR
• Power: PoE (802.3af) / 12V DC
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Built-in Microphone: Yes
• Local Storage: MicroSD up to 512GB
• Network: 1x RJ45 10/100M Ethernet
• Operating Temperature: -35°C to 60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is rated for continuous recording (e.g., High Endurance). Mount the camera at a height of 2.5-3 meters for best coverage.
