IP-valvontakamera TP-Link VIGI 4MP IR Dome

The TP-Link VIGI 4MP IR Dome (VIGI C240I(4MM)) is an IP security camera for indoor and outdoor use that records 4MP Super-High Definition video. Equipped with a 4MP CMOS sensor and a horizontal viewing angle of 75.1° (vertical 41.5°), this wired dome camera supports ceiling or wall mounting and is available in black and white. It provides clear image detail suitable for business and property monitoring while offering rugged protection for harsh environments.

Advantages

The camera delivers high-resolution 4MP video and on-board AI classification to distinguish humans and vehicles from other objects, reducing false alarms. Smart detection features include tripwire, intrusion, tamper and object removal/abandonment alerts. The housing meets IK10 vandal resistance and IP67 waterproofing for outdoor durability. Video compression preserves image clarity while saving bandwidth and storage. Built-in SmartVid enhancements such as Smart IR, WDR, 3D DNR and night vision improve image quality in varied lighting conditions. Multiple management options (web UI, NVR UI, VIGI app and VIGI Security Manager) allow flexible control.

Suitable for

• Retail stores and small businesses for perimeter and indoor monitoring
• Office spaces and lobbies requiring ceiling or wall-mounted surveillance
• Outdoor entrances, parking areas and building exteriors needing weatherproof, vandal-resistant cameras

Key specifications

• Model: VIGI C240I(4MM)
• Resolution: 4MP Super-High Definition
• Sensor: 4MP CMOS
• Frame rate: 30 fps
• Viewing angle: Horizontal 75.1°, Vertical 41.5°
• Connectivity: Wired Ethernet (no Wi‑Fi)
• Mounting: Ceiling or wall
• Placement: Indoor & outdoor
• Protection: IK10 vandal-proof, IP67 waterproof
• Video features: Human & vehicle classification, smart detection (tripwire, intrusion, tamper, object removal), Smart IR, WDR, 3D DNR, night vision
• Color: White, Black

How to use

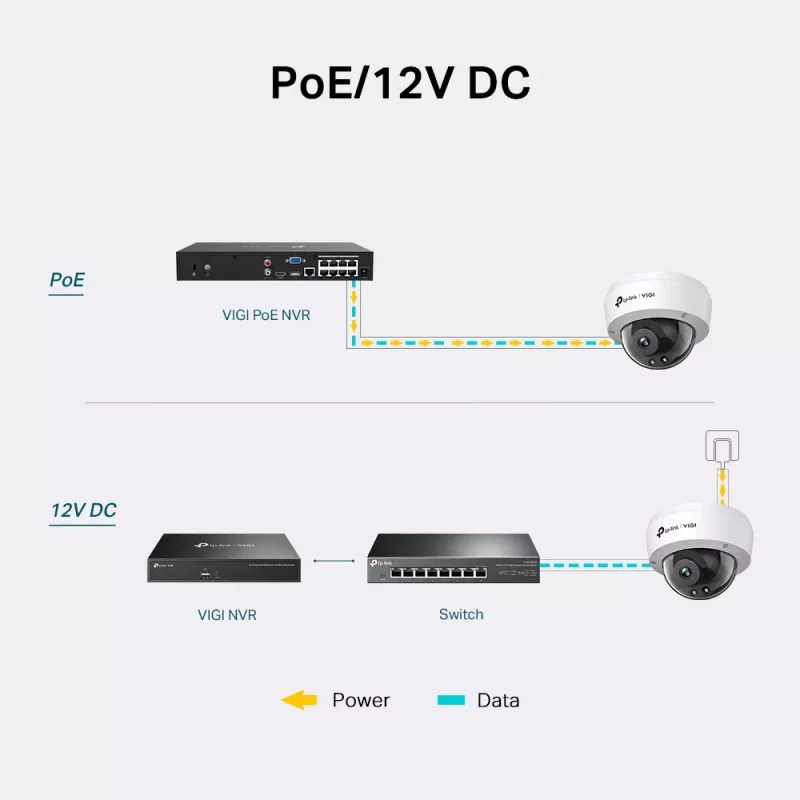

Mount the VIGI 4MP IR Dome on a ceiling or wall using appropriate anchors for the surface. Connect the camera to a wired Ethernet network and configure it through the web UI, NVR UI, VIGI app or VIGI Security Manager. Adjust the 4mm lens position to achieve the desired field of view and set detection areas, tripwires and alarm rules to match your monitoring needs. Ensure PoE or compatible power source is available if required by your installation.

Recommendations

Place the camera at a height and angle that maximizes coverage while minimizing obstructions; enable AI human and vehicle classification and fine-tune sensitivity to reduce false positives. For outdoor installations, confirm seals after mounting and periodically clean the dome to maintain night vision and Smart IR performance.
