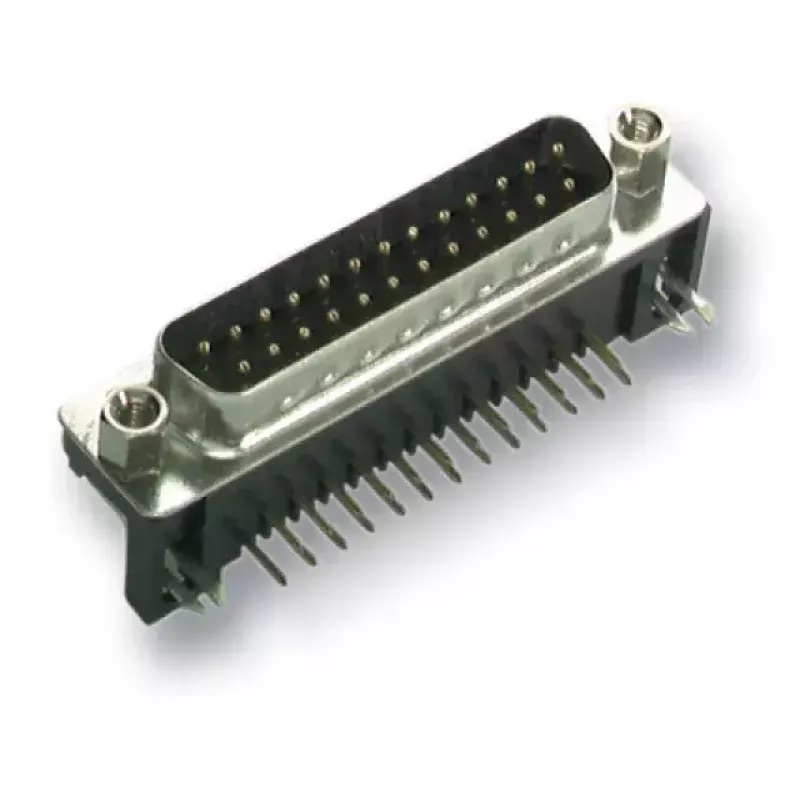

Jatkoliitin D-Sub EFB Elektronik 29259.1

The EFB Elektronik 29259.1 wire connector is a DSub-style plug with a 9.4 mm shell width and a 90° angled design, intended for panel or cable installations in electronic equipment. Constructed from fiberglass-reinforced thermoplastic polyester (PBT) in black, the connector offers electrical insulation and mechanical durability suitable for general-purpose D-Sub connections.

Advantages

Made from fiberglass-reinforced PBT, this DSub connector provides good dimensional stability, resistance to environmental influences and reliable insulation. The 90° angled configuration reduces strain on cables in tight installations, and the standard 9.4 mm shell width ensures compatibility with common D-Sub housings and accessories.

Suitable for

• Right-angle D-Sub connections in control panels and enclosures
• Signal and data cable terminations in electronic devices
• Applications requiring compact cable routing and reduced bend radius

Key specifications

• Manufacturer: EFB Elektronik
• MPN: 29259.1
• EAN: 4049759038519
• Type: DSub plug, 9.4 mm shell width
• Orientation: 90° angled
• Material: Fiberglass-reinforced thermoplastic polyester (PBT), black

How to use

Mount the connector onto the corresponding D-Sub housing or PCB cutout according to the device design, route the cable to match the 90° exit orientation and secure conductors following the chosen termination method (solder, crimp or screw, depending on mating insert/accessory). Verify correct pin assignment and mechanical fit before powering the system.

Recommendations

For reliable operation, use compatible D-Sub shells or backshells sized for 9.4 mm plugs, avoid excessive mechanical stress at the cable exit, and ensure the connector is used within the electrical and environmental limits of the system. Confirm pinouts against device schematics prior to installation.
