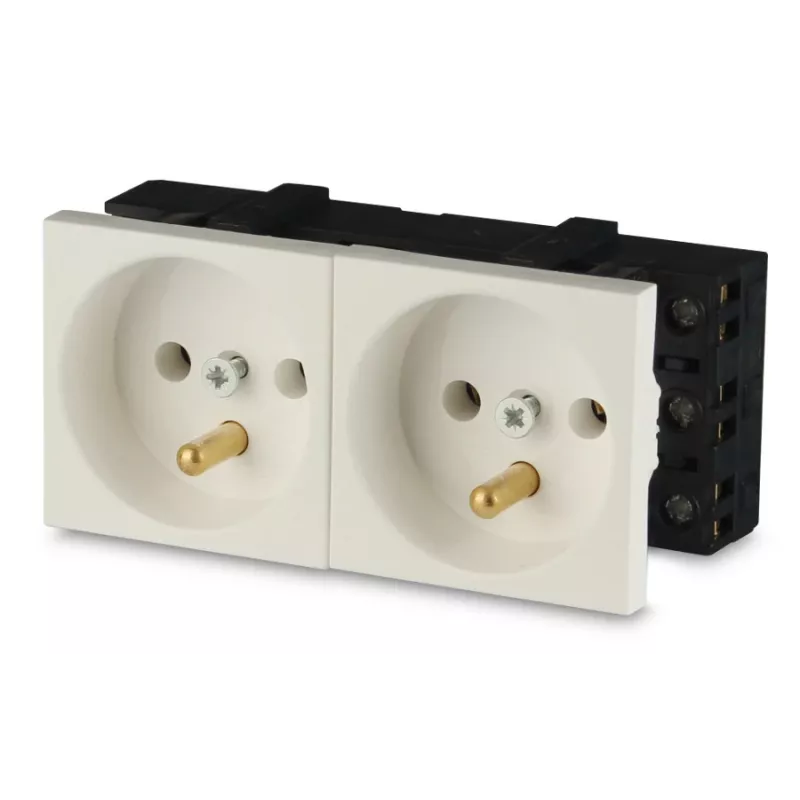

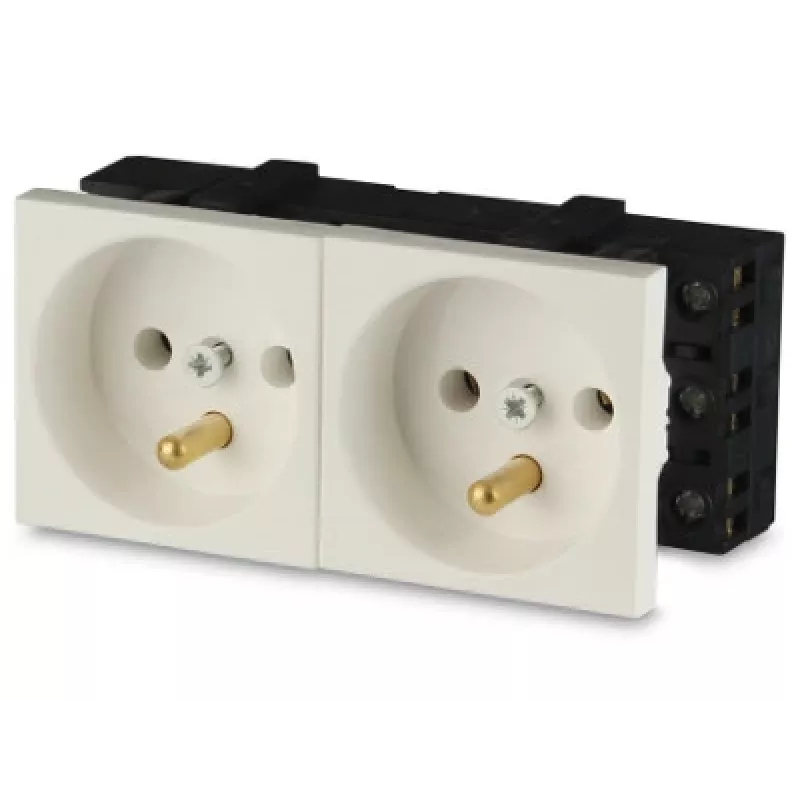

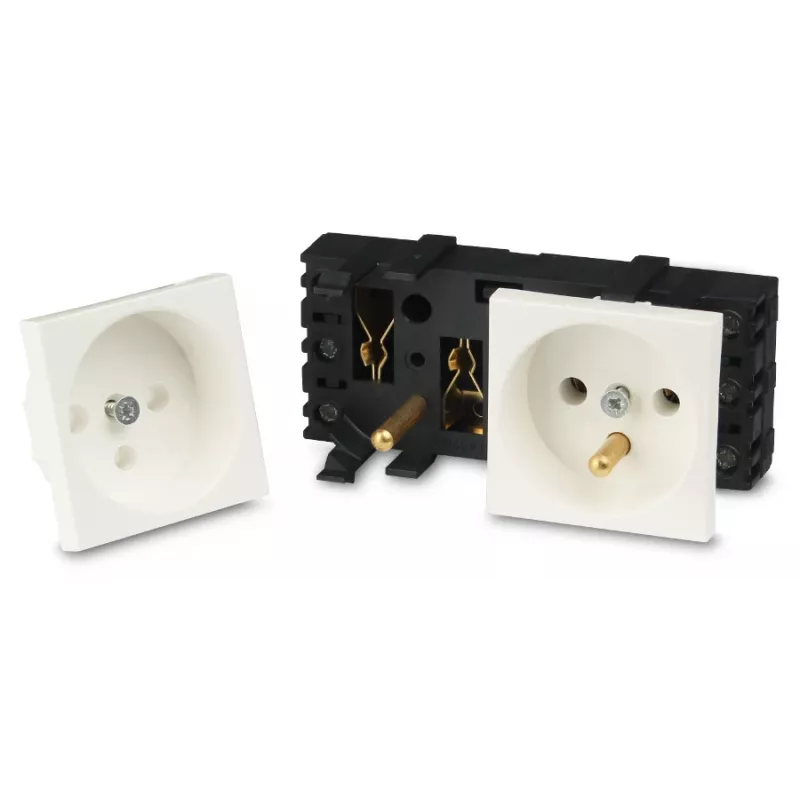

JAVEL kaksoispistorasia 2M valkoinen 16A 250V uppoasennus

The JAVEL Double 2M Electrical Socket is a high-quality flush-mounted power outlet designed for residential and commercial applications. Featuring a sleek white glossy finish, this 2-gang socket provides reliable 16A/250V AC power with integrated child protection shutters for enhanced safety. Part of the Simon 54 series, it offers a modern, horizontal design that blends seamlessly into any wall.

Advantages

This double socket delivers robust performance with screw terminals supporting up to 2.5 mm² cables, ensuring secure and durable connections. The integrated child protection mechanism prevents accidental insertion of objects, making it ideal for family homes. Its halogen-free thermoplastic construction meets CE standards, providing peace of mind for both residential and commercial environments.

Suitable for

• Residential living rooms, bedrooms, and kitchens
• Commercial offices, retail spaces, and hospitality
• Flush-mounted installations in standard wall boxes

Key specifications

• Socket Type: Double (2-gang) with pin earthing (2P+Z)
• Rated Current: 16 A
• Rated Voltage: 250 V AC
• IP Protection: IP20
• Mounting: Flush-mounted
• Number of Modules: 2M
• Connection: Screw terminals (up to 2.5 mm²)
• Colour: White
• Material: Thermoplastic, halogen-free
• Child Protection: Yes (integrated shutters)
• Frequency: 50/60 Hz
• Orientation: Horizontal
• Finish: Glossy
• Number of Outlets: 2
• Compliance: CE

Recommendations

For best results, install with a compatible flush-mounted back box (not included). Ensure proper earthing and cable sizing per local regulations. Suitable for indoor use only.
