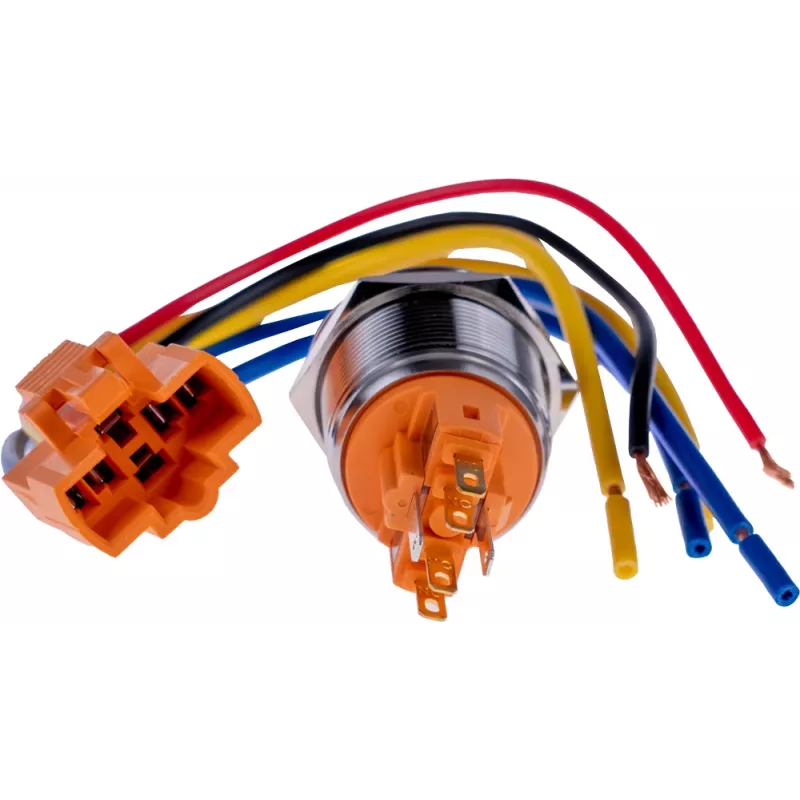

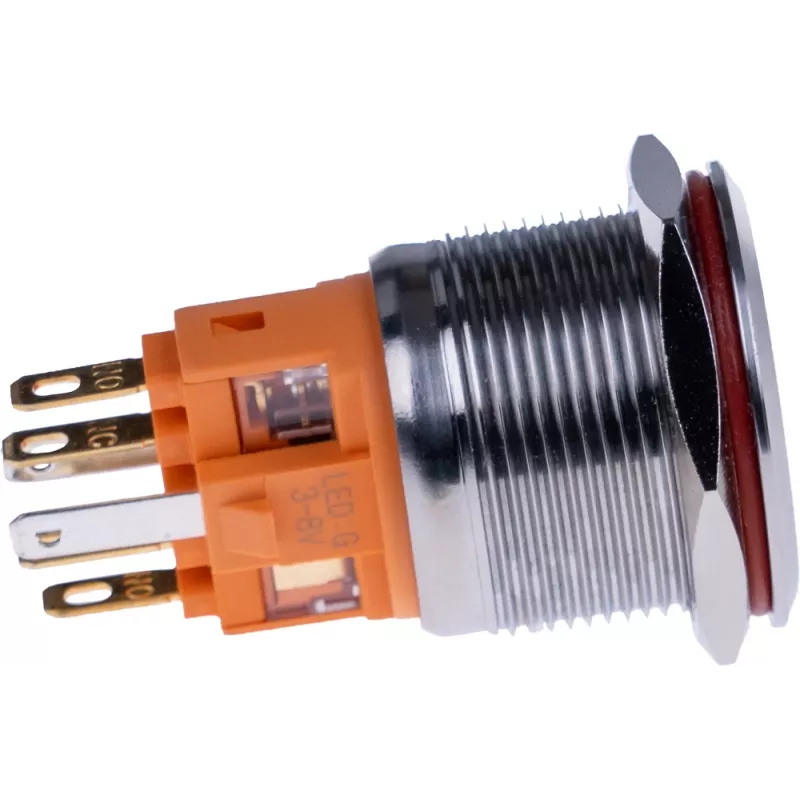

JOY-IT BUTTON22B-M-GR painike (sulkeva), 22mm, 250V AC 7A, 1 NO, IP67, IK10, vihreä

On industrial control panels, machine tools, and outdoor equipment, a reliable momentary push button is essential for precise actuation. The JOY-IT BUTTON22B-M-GR is a robust 22mm panel-mount switch with a green round actuator, built to withstand harsh environments. With an IP67 rating, it is completely protected against dust and temporary immersion in water, while the IK10 impact rating ensures it can handle heavy knocks without failure. Rated for 250V AC and 7A, it switches a single normally-open contact, returning automatically to its resting state when released. This momentary action is ideal for jog functions, resets, and start pulses in automation systems.

Key specifications

• Switch type: Momentary push button (non-latching)
• Contact configuration: 1 NO (SPST-NO)
• Rated voltage/current: 250 V AC / 7 A
• Mounting diameter: 22 mm
• Actuator: Round, green, non-illuminated
• Ingress protection: IP67 (dust-tight, protected against temporary immersion)
• Impact protection: IK10 (highest impact resistance)
• Mounting: Panel mount

Why choose it

This push button is engineered for demanding applications where reliability and durability are non-negotiable. The IP67 and IK10 ratings mean it can be used outdoors, in washdown areas, or on heavy machinery without fear of failure. The momentary action provides precise control, preventing accidental latching. Its standard 22mm cutout fits most industrial panels, making it a drop-in replacement for many existing switches.

Ideal use cases

• Industrial control panels and operator stations
• Machine tools and production equipment
• Outdoor kiosks and access control systems
• Automation systems requiring momentary start or reset signals
• Marine and vehicle dashboards (with appropriate enclosure)

Good to know

The switch is supplied as a single unit. It is non-illuminated, so no additional power supply is needed for the actuator. Installation requires a 22mm hole and a suitable locking ring (typically included). Always ensure the electrical load does not exceed the rated 7A at 250V AC. For lower voltage DC applications, derating may be necessary; consult the manufacturer's datasheet.
