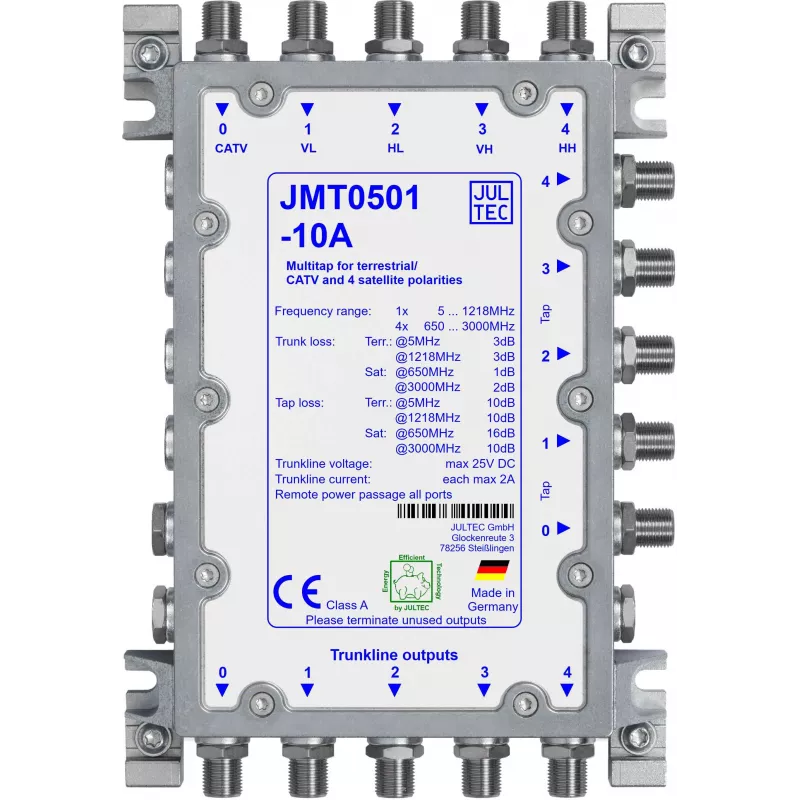

Jultec JMT0501-10A Multi-Tap-haaroitin, 5 haaraa, passiivinen, 10 dB

The Jultec JMT0501-10A is a high-quality passive multi-tap distributor designed for RF signal distribution in CATV and MATV systems. With 5 tap outputs and a single trunk input/output, it allows for efficient splitting of signals to multiple subscribers while maintaining signal integrity. This unit is engineered for reliable performance across a wide frequency range from 5 to 2400 MHz, making it suitable for both analog and digital signals, including satellite IF.

Advantages

Passive design ensures no external power is required, reducing installation complexity and cost. The die-cast zinc housing provides excellent shielding (Class A per EN 50083-2) and durability. DC pass-through capability allows powering of remote amplifiers or LNBs through the trunk line and all tap outputs. Low insertion loss and high return loss ensure minimal signal degradation.

Suitable for

• Distribution of terrestrial TV and radio signals in residential and commercial buildings
• Satellite IF distribution (950-2400 MHz)
• Cable TV (CATV) networks
• MATV systems requiring multiple subscriber connections

Key specifications

• Product Type: Multi-tap Distributor
• Operating Mode: Passive
• Number of Taps: 5
• Trunk Lines: 1 Input, 1 Output (for cascading)
• Frequency Range: 5 - 2400 MHz
• Tap Loss (5-47 MHz): 10 dB
• Tap Loss (47-862 MHz): 10 dB
• Tap Loss (950-2400 MHz): 10.5 dB
• Trunk Loss (5-47 MHz): 1.5 dB
• Trunk Loss (47-862 MHz): 1.5 dB
• Trunk Loss (950-2400 MHz): 2.5 dB
• Return Loss (5-47 MHz): >18 dB
• Return Loss (47-862 MHz): >18 dB
• Return Loss (950-2400 MHz): >15 dB
• Decoupling (Tap-Tap): >25 dB
• DC Pass-through: Yes (Trunk In to Trunk Out, and to all Tap Outputs)
• Shielding Class: Class A (EN 50083-2)
• Connector Type: F-type (female)
• Impedance: 75 Ohm
• Housing Material: Die-cast zinc

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper termination of unused ports. This distributor is ideal for small to medium-sized installations where passive splitting is sufficient.
