Kaapelikotelo Axis 02712-001 universaali harmaa

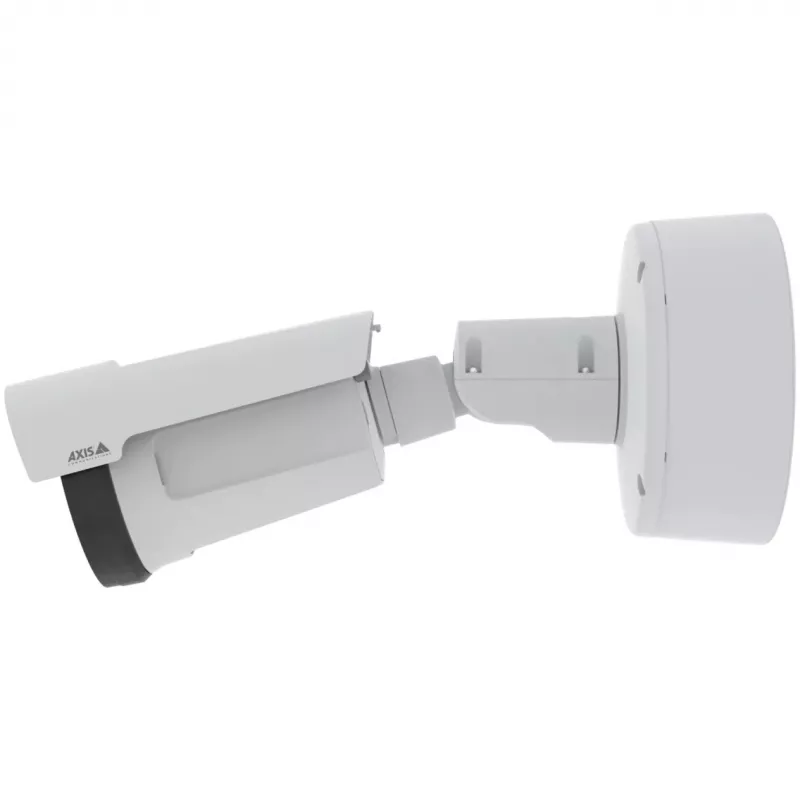

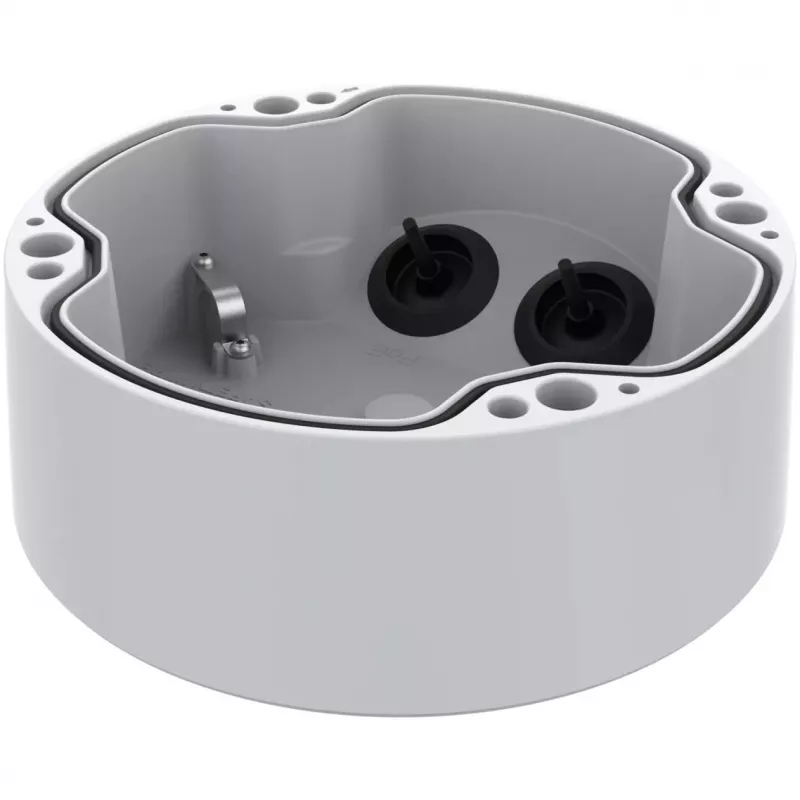

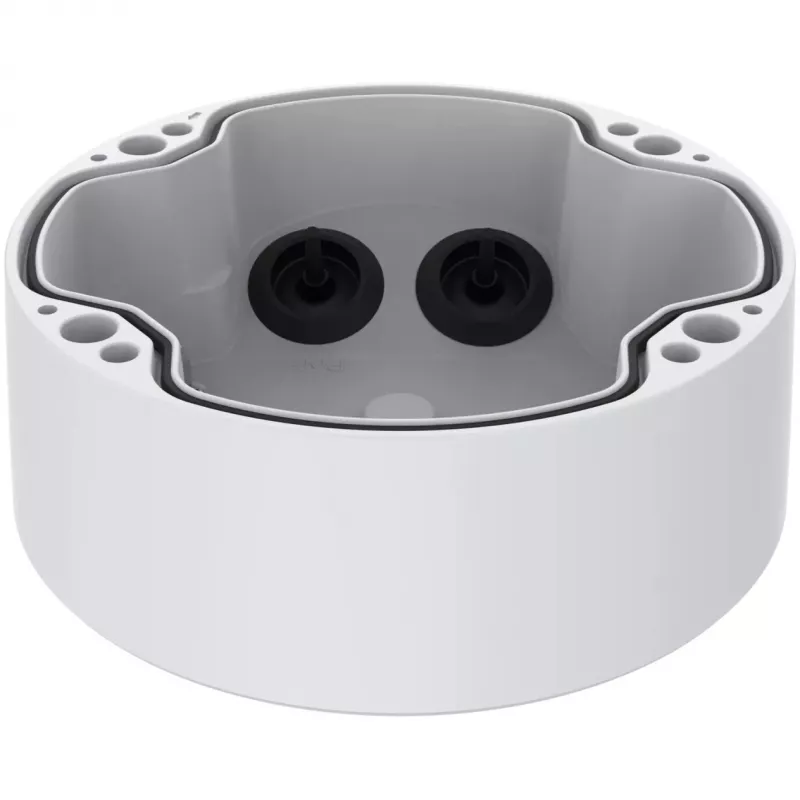

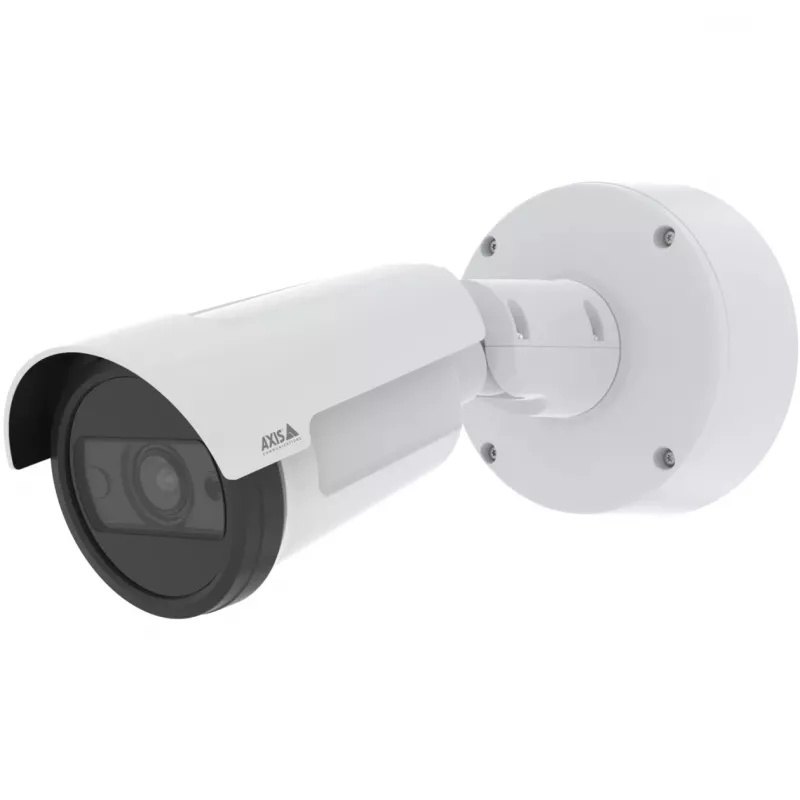

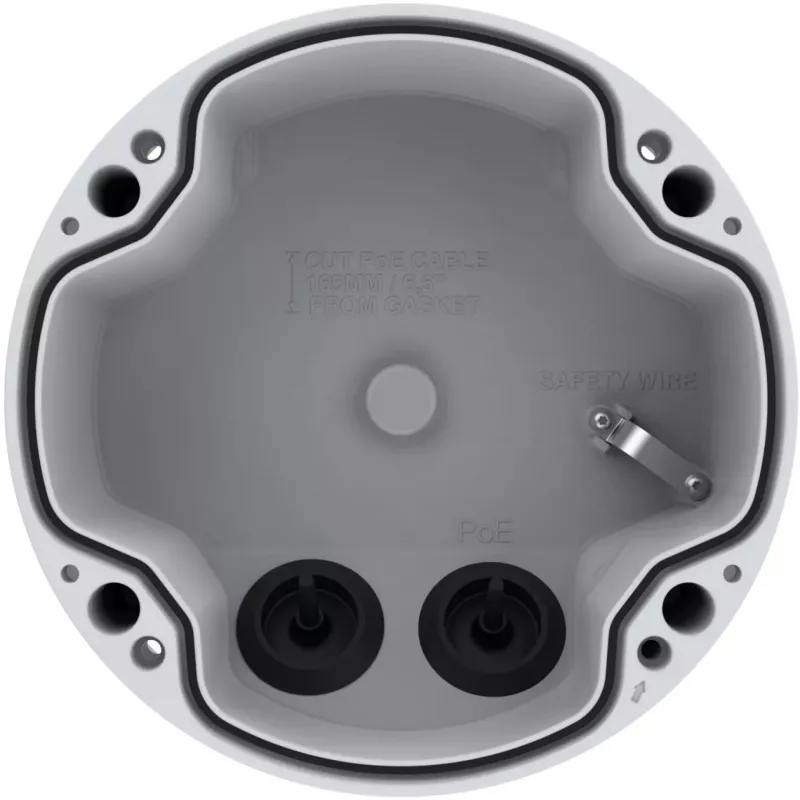

Available in white, this conduit back box provides additional installation space and is compatible with selected AXIS P14 Bullet Cameras and AXIS Q19 Thermal Cameras. The unit is rated IP66 for dust and water protection and IK10 for impact resistance, and it features an extra-deep back box that is deeper than the camera’s standard back box.

Advantages

The conduit back box simplifies cable management and offers enhanced protection against harsh environments thanks to its IP66 and IK10 ratings. Its extra depth allows for easier wiring and accommodates larger connectors or junctions, reducing installation time and complexity. Compatibility with AXIS P14 Bullet and AXIS Q19 Thermal camera models ensures a secure fit for selected devices.

Key specifications

• Color: White
• Ingress protection: IP66
• Impact protection: IK10
• Compatibility: Selected AXIS P14 Bullet Cameras, Selected AXIS Q19 Thermal Cameras
• Design: Extra-deep back box (deeper than camera back box)

How to use

Mount the back box to a suitable surface following local installation regulations. Route cables through the conduit entry and make necessary connections inside the extra-deep back box, ensuring seals and glands are fitted to maintain the IP66 rating. Once wiring is complete, attach the compatible AXIS camera to the back box and secure all fasteners according to the camera and back box manufacturer instructions.

Recommendations

Use appropriate cable glands and corrosion-resistant fasteners for outdoor installations. Verify compatibility with your specific AXIS P14 or Q19 camera model before installation and follow manufacturer guidelines for sealing to preserve IP66 and IK10 protection levels.
