Kaapelisplitteri Extralink Splitter 1:8 PLC SC/APC 900µm 1,5m vihreä valkoinen

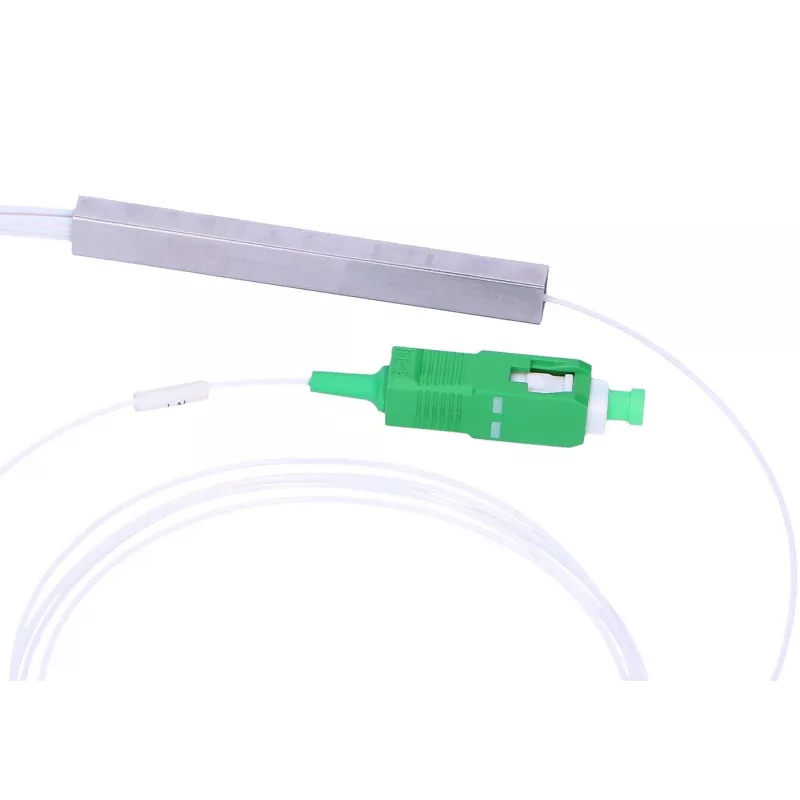

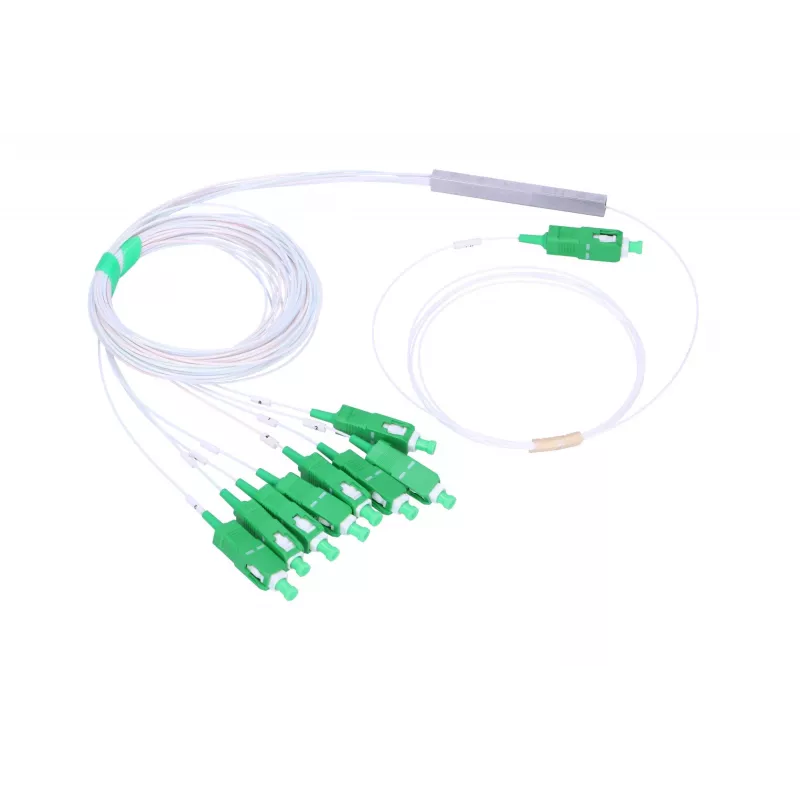

EXTRALINK PLC 1:8 0.9mm fiber optic splitter with SC/APC connectors provides passive optical signal distribution for FTTH networks. The PLC splitter divides one input into eight outputs with symmetrical power distribution and comes with SC/APC connectors and a 0.9 mm pigtail cable. The unit is housed in a compact steel box and is supplied in blister packaging to prevent cable tangling.

Advantages

The PLC design ensures uniform 1:8 power splitting and stable performance without additional power. The 0.9 mm pigtail simplifies routing and installation in fiber organizers, while the compact steel enclosure enables easy mounting in switch cabinets or fiber distribution boxes. SC/APC connectors provide low back-reflection suitable for FTTH applications.

Suitable for

• FTTH (fiber to the home) network deployments
• Passive optical networks (PON) and split distribution panels
• Installation in fiber organizers, cabinets, and switches
• Expanding a single fiber feed to multiple customer lines

Key specifications

• Type: PLC splitter, 1:8 symmetric split

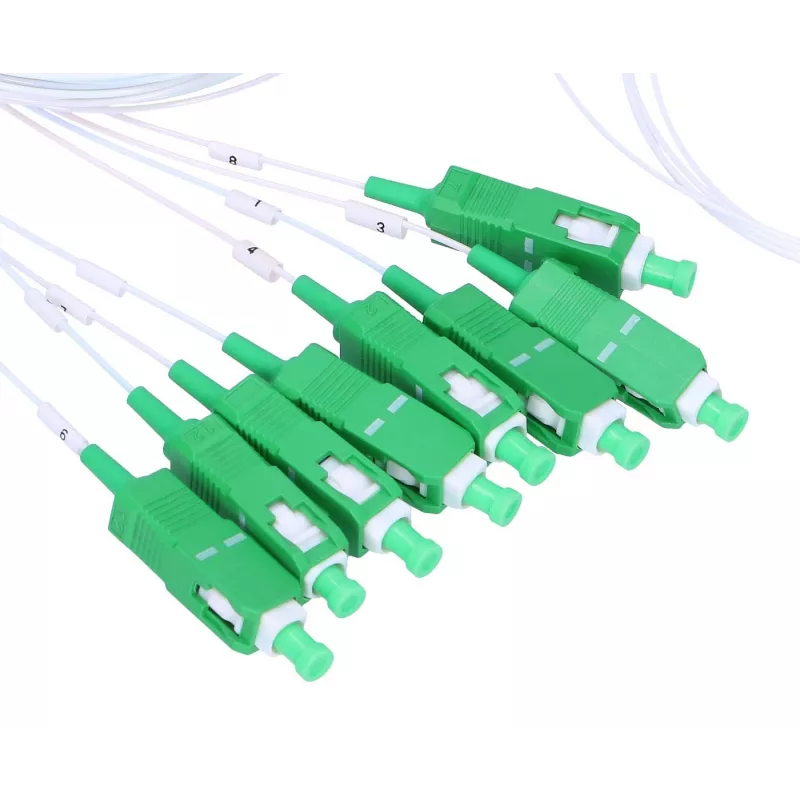

• Input/Output connectors: SC/APC
• Pigtail diameter: 0.9 mm
• Cable length: 1.5 m (pigtail)
• Housing: compact steel box
• Colour: green and white

How to use

Mount the splitter housing in the desired cabinet or organizer. Connect the incoming fiber to the SC/APC input connector and route the eight SC/APC output connectors to the downstream fibers or customer drop cables. Ensure connectors are clean before mating and secure the pigtail to strain-relief points or cable management guides to avoid bending below the minimum bend radius.

Recommendations

Use in indoor FTTH and PON environments. Clean connectors with appropriate fiber cleaning tools before connection, avoid tight bends on the 0.9 mm pigtail, and store or install the unit in a dry, dust-free environment to maintain signal quality.
