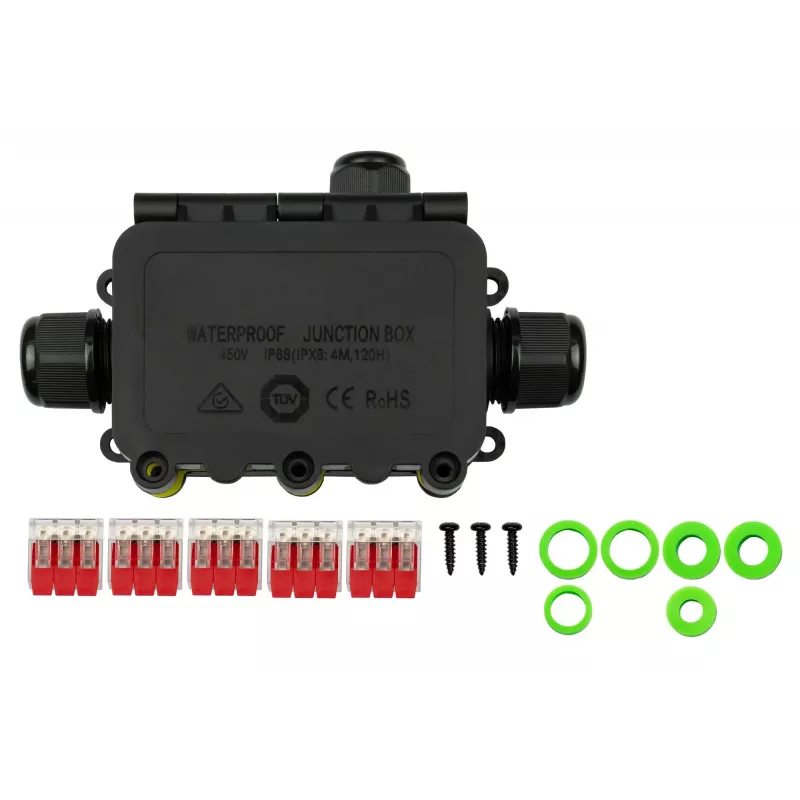

KABELMEISTER 3-tie työkaluton IP68 kaapeliliitäntärasia, musta

Electricians and outdoor lighting installers often struggle with cable connections in damp or buried environments. This KABELMEISTER junction box solves that with a tool-less, screwless terminal block that grips conductors firmly without any special tools, while the IP68-rated housing keeps moisture and dust out even under temporary submersion.

Key specifications

• 3-way cable entry for branching or splicing
• Tool-less connection: just push in the stripped wire
• IP68 protection: dust-tight and waterproof up to 2 m for 1 hour
• Rated voltage: 450 V AC, rated current: 24 A
• Accepts solid or stranded conductors from 0.5 to 2.5 mm²
• Cable diameter range: 4–14 mm with included silicone sealing rings
• 3 poles per terminal: L, N, PE
• Housing material: PA66 nylon, flame retardant UL94-V2
• Impact resistance: IK08
• Operating temperature: -40 °C to +105 °C
• Colour: black, surface mount with pre-drilled holes

Why choose it

The screwless terminal block saves time on every connection and eliminates the risk of loose screws. The silicone seals and robust nylon housing ensure long-term reliability in harsh conditions, from garden lighting to industrial cable runs.

Ideal use cases

• Outdoor low-voltage and mains lighting installations
• Underground cable splicing in conduit or direct burial
• Connecting garden pumps, pond equipment, or irrigation systems
• Repairing damaged cables in wet or dusty environments
• Temporary power distribution on construction sites

Good to know

For maximum waterproofing, select the correct seal size for your cable diameter. The box is surface-mountable with pre-drilled holes and includes silicone sealing rings for cables from 4 to 14 mm.
