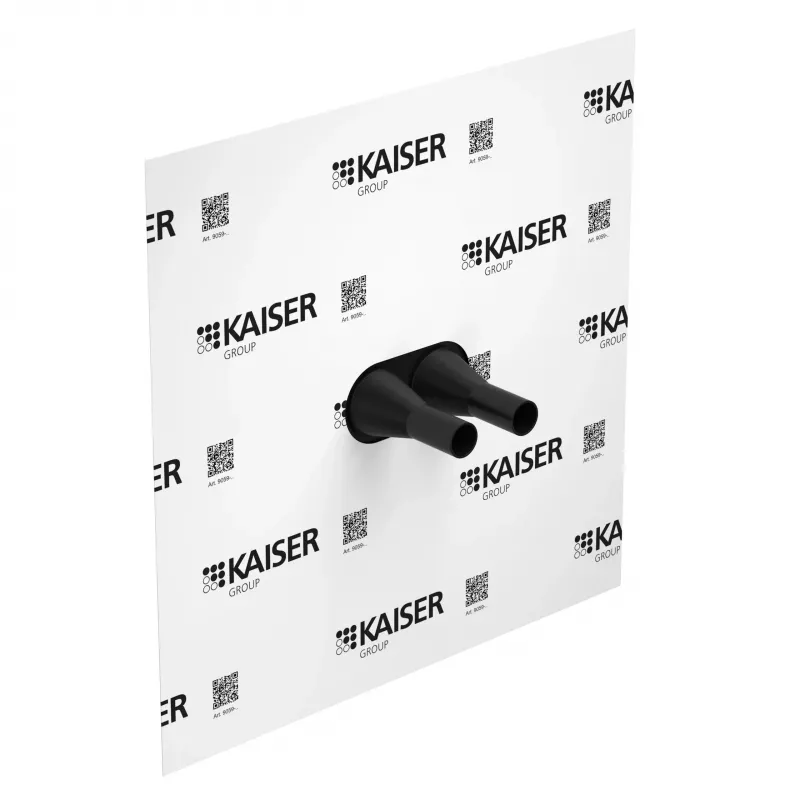

Kaiser Elektro 9059-47 kaksinkertainen kaapelitiivistysholkki D 8-11 mm ilmatiivis holkki

The Kaiser Elektro 9059-47 Double Cable Sealing Sleeve is an essential component for airtight electrical installations in cavity walls and device boxes. Designed to accommodate two cables with a diameter range of 8 to 11 mm each, this sleeve ensures a secure, airtight seal that prevents air leakage, reduces heat loss, and improves energy efficiency. Made from high-quality elastomer, it is halogen-free and flame retardant, making it safe for indoor use. The push-in/snap-in installation method allows for quick and easy fitting without additional tools.

Advantages

This double cable sealing sleeve offers reliable airtight sealing, contributing to energy savings and compliance with modern building standards such as DIN 18015-5. Its durable elastomer material provides long-lasting performance, while the self-extinguishing flame retardant properties enhance safety. The sleeve is compatible with Kaiser cavity wall boxes and standard device boxes, ensuring versatility in various installation scenarios.

Suitable for

• Airtight electrical installations in cavity walls
• Sealing cable entries in device boxes and junction boxes
• Reducing heat loss and improving energy efficiency in buildings
• Compliance with airtight building regulations

Key specifications

• Product Type: Double Cable Sealing Sleeve
• Cable Capacity: 2 cables
• Cable Diameter Range (per cable): 8 - 11 mm
• Sealing Type: Airtight
• Material: Elastomer
• Colour: Grey
• Installation Method: Push-in / Snap-in
• Halogen-free: Yes
• Flame Retardant: Yes (self-extinguishing)
• Operating Temperature Range: -5°C to +60°C
• UV Resistance: No (indoor use only)

Recommendations

For optimal airtight performance, ensure the cable diameter is within the specified range and that the sleeve is fully seated in the box opening. This product is designed for indoor use only and should not be exposed to direct sunlight or extreme temperatures.
