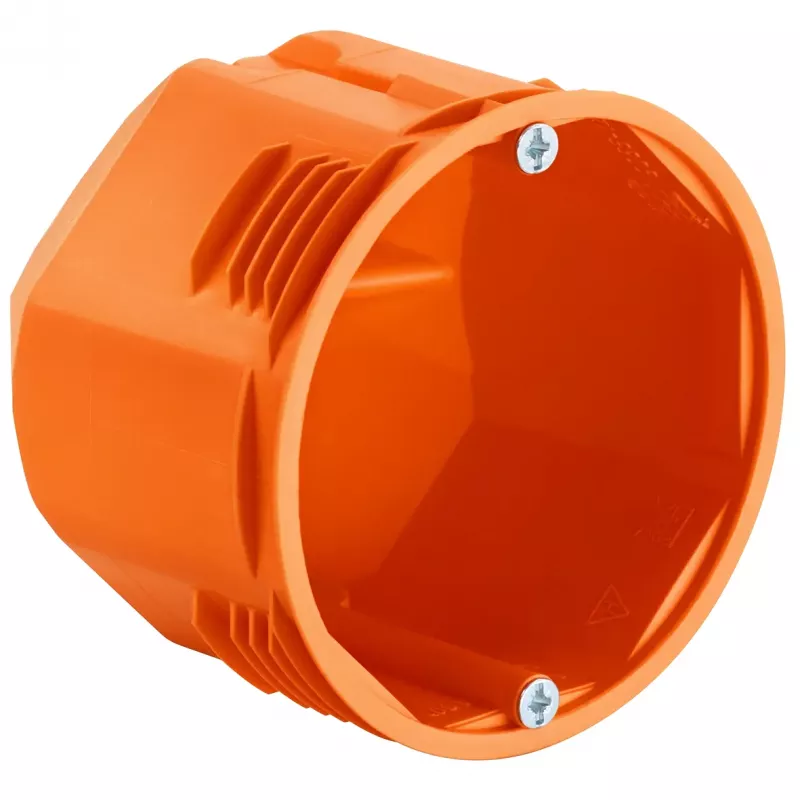

KAISER ELEKTRO laiteliitäntärasia 9066-12 tuulenpitävä klemmausalueelle

The KAISER ELEKTRO Device Connection Box 9066-12 is a high-quality, windproof installation box designed for cavity walls and drywall applications. It features flexible sealing membranes for cable entries and is suitable for terminal blocks and electronic devices. This box ensures airtight and secure connections in residential and commercial electrical installations.

Advantages

Windproof design prevents drafts and moisture ingress. Halogen-free and flame retardant for enhanced safety. Easy cable entry with flexible membranes accommodating 3-12 mm cables. Compact size fits standard 68 mm outer diameter and 61 mm mounting depth.

Suitable for

• Electrical installations in residential and commercial buildings
• Mounting terminal blocks and electronic devices
• Drywall and cavity wall applications

Key specifications

• Product Type: Device Connection Box
• Installation Type: Cavity Wall / Drywall
• Special Feature: Airtight / Windproof
• Cable Entries: 8
• Cable Entry Type: Flexible sealing membranes
• Cable Clamping Range: 3 - 12 mm
• Material: Plastic
• Color: Orange
• Halogen-free: Yes
• Protection Class: IP20
• Flame Retardant: Yes
• Standard Compliance: DIN EN 60670-1, DIN EN 60670-22
• Outer Diameter: 68 mm
• Mounting Depth: 61 mm
• Internal Depth: 59 mm
• Number of Device Positions: 1
• Device Mounting Type: Screw mounting
• Connection Type: For clamping range

Recommendations

Ideal for electricians and installers requiring a reliable, windproof connection box for drywall. Ensure compatibility with your terminal blocks and cable diameters.
